Sram PIKE C1+ (2023+)

PIKE C1+ (2023+) RockShox

FS-PIKE-BSE, FS-PIKE-SEL-C1, FS-PIKE-SELP-C1, FS-PIKE-ULT-C1, FS-PIKE-UFA-C1, FS-PIKE-SELP-C2, FS-PIKE-ULT-C2, FS-PIKE-UFA-C2
Sram RockShox PIKE C1+ (2023+)

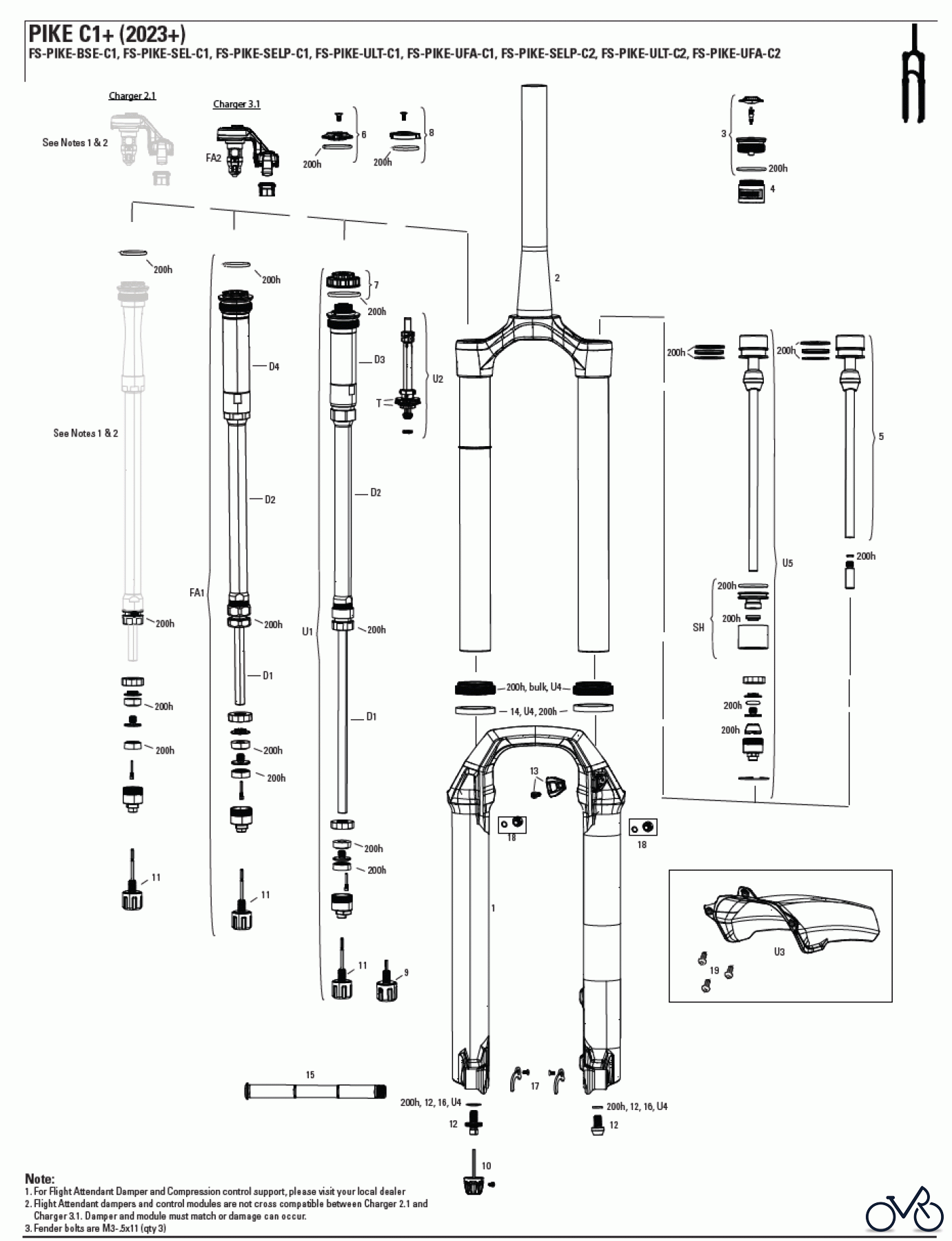

Here you will find the spare parts drawing for Sram RockShox PIKE C1+ (2023+). Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

PosArticle NumberDescription
UPGRADE
U1 00.4318.095.000 DAMPER UPGRADE KIT - CHARGER3.1 RC2 CROWN W/BUTTERCUPS (INCLUDES COMPLETE RIGHT SIDE INTERNALS) -PIKE C1+ (2023+) 00.4318.095.000
U2 00.4318.096.000 DAMPER UPGRADE KIT - CHARGER3.1 HEADVALVE/SHIM KIT (UPGRADES EXISTING CHARGER 3 RC2 DAMPERS TO CHARGER 3.1) - BOXXER D1+ (2024+)/ZEB A1 + (2021+)/LYRIK D1+ (2023+)/PIKE C1+ (2023+) 00.4318.096.000
U3 00.4318.053.000 ROCKSHOX MTB FENDER BLACK SHORT 3 BOLT - LYRIK (D1+/2023+),PIKE (C1+/2023+), PSYLO (SHORT FENDER LOWER LEG ONLY) (A1+/2025+) 00.4318.053.000
U4 Sram FORK DUST WIPER UPGRADE KIT - 35MM BLACK FLANGELESS ULTRA-LOW FRICTION SKF SEALS (INCLUDES DUST WIPERS, 4MM, 6MM FOAM RINGS-PIKE/LYRIKB1/YARI/REVELATION/BOXXER/DOMAIN/35/SID35MM 00.4318.045.004 FORK DUST WIPER UPGRADE KIT - 35MM BLACK FLANGELESS ULTRA-LOW FRICTION SKF SEALS (INCLUDES DUST WIPERS, 4MM, 6MM FOAM RINGS-PIKE/LYRIKB1/YARI/REVELATION/BOXXER/DOMAIN/35/SID35MM 00.4318.045.004
U5 00.4318.064.003 Air Spring Upgrade Kit - DebonAir+ w/ Butter Cup 120mm (includes air shaft assembly, ButterCup, seal head) - PIKE C1+(2023+) V2 00.4318.064.003
U5 00.4318.064.004 Air Spring Upgrade Kit - DebonAir+ w/ Butter Cup 130mm (includes air shaft assembly, ButterCup, seal head) - PIKE C1+(2023+) V2 00.4318.064.004
U5 00.4318.064.005 Air Spring Upgrade Kit - DebonAir+ w/ Butter Cup 140mm (includes air shaft assembly, ButterCup, seal head) - PIKE C1+(2023+) V2 00.4318.064.005
SERVICE
200h 00.4318.025.219 200 HOUR/1 YEAR SERVICE KIT (INCLUDES DUST SEALS, FOAM RINGS, O-RING SEALS, SEALHEADS) - PIKE BASE/SELECT/SELECT+/ULTIMATE (2022+) GENERATION-C 00.4318.025.219
TRAVEL CHANGE
5 11.4018.111.054 FORK SPRING DEBONAIR+ SHAFT - (INCLUDES AIR SHAFT AND BUMPERS) 120MM- 27/29 (BUTTERCUP AND NON-BUTTERCUP COMPATIBLE) - PIKE C1+ V2 11.4018.111.054
5 11.4018.111.055 FORK SPRING DEBONAIR+ SHAFT - (INCLUDES AIR SHAFT AND BUMPERS) 130MM- 27/29 (BUTTERCUP AND NON-BUTTERCUP COMPATIBLE) - PIKE C1+ V2 11.4018.111.055
5 11.4018.111.056 FORK SPRING DEBONAIR+ SHAFT - (INCLUDES AIR SHAFT AND BUMPERS) 140MM- 27/29 (BUTTERCUP AND NON-BUTTERCUP COMPATIBLE) - PIKE C1+ V2 11.4018.111.056
TUNE
T 11.4018.136.000 FORK DAMPER TUNE ASSEMBLY (INCLUDES SHIMS FOR COMPRESSION/REBOUND TUNE CONFIGURATIONS AND PISTON TOOL) - CHARGER 3.1 - PIKE C1+, LYRIK D1+, ZEB A1+, BOXXER D1+ 11.4018.136.000
LOWER LEG
1 11.4018.091.077 FORK LOWER LEG - (DECALS INCLUDED) 27 15X110 BOOST™ W/ LOWER LEG PLUGS - DIFFUSION BLACK - PIKE SELECT/SELECT PLUS, C1+ (2023+) 11.4018.091.077
1 11.4018.091.078 FORK LOWER LEG - (DECALS INCLUDED) 29 15X110 BOOST™ W/ LOWER LEG PLUGS - DIFFUSION BLACK - PIKE SELECT/SELECT PLUS, C1+ (2023+) 11.4018.091.078
1 11.4018.091.079 FORK LOWER LEG - (FOIL DECALS INCLUDED) 27 15X110 BOOST™ W/ LOWER LEG PLUGS - SILVER - PIKE ULTIMATE C1+ (2023+) 11.4018.091.079
1 11.4018.091.080 FORK LOWER LEG - (FOIL DECALS INCLUDED) 29 15X110 BOOST™ W/ LOWER LEG PLUGS - SILVER - PIKE ULTIMATE C1+ (2023+) 11.4018.091.080
1 11.4018.091.081 FORK LOWER LEG - (FOIL DECALS INCLUDED) 27 15X110 BOOST™ W/ LOWER LEG PLUGS - GLOSS BLACK - PIKE ULTIMATE C1+ (2023+)/PIKE FLIGHT ATTENDANT (2022+) 11.4018.091.081
1 11.4018.091.082 FORK LOWER LEG - (FOIL DECALS INCLUDED) 29 15X110 BOOST™ W/ LOWER LEG PLUGS - GLOSS BLACK - PIKE ULTIMATE C1+ (2023+)/PIKE FLIGHT ATTENDANT (2022+) 11.4018.091.082
DECALS
ns 11.4018.105.063 FORK DECAL KIT - PIKE ULTIMATE 27/29 MATTE COPPER FOIL FOR HIGH GLOSS BLACK (2023+) 11.4018.105.063
ns 11.4018.105.064 FORK DECAL KIT - PIKE ULTIMATE 27/29 MATTE SILVER FOIL FOR HIGH GLOSS BLACK (2023+) 11.4018.105.064
ns 11.4018.105.065 FORK DECAL KIT - PIKE ULTIMATE 27/29 GLOSS RAINBOW FOIL FOR HIGH GLOSS BLACK (2023+) 11.4018.105.065
ns 11.4018.105.066 FORK DECAL KIT - PIKE ULTIMATE 27/29 GLOSS BLACK FOR SILVER (2023+) 11.4018.105.066
ns 11.4018.105.067 FORK DECAL KIT - PIKE ULTIMATE FLIGHT ATTENDANT 27/29 MATTE SILVER FOIL FOR GLOSS BLACK (2023+) 11.4018.105.067
CSU
2 11.4018.090.080 FORK CSU - DEBONAIR 27.5/29B 37 OFF-SET DIFFUSION BLACK (NO GRADIENTS) - PIKE C1+ (2023+) 11.4018.090.080
2 11.4018.090.081 FORK CSU - DEBONAIR 27.5/29B 44 OFF-SET DIFFUSION BLACK (NO GRADIENTS) - PIKE C1+ (2023+) 11.4018.090.081
2 11.4018.090.082 FORK CSU - DEBONAIR 27.5/29B 37 OFF-SET ANO BLACK (NO GRADIENTS) - PIKE C1+ (2023+)/PIKE FLIGHT ATTENDANT C1+ (2022+) 11.4018.090.082
2 11.4018.090.083 FORK CSU - DEBONAIR 27.5/29B 44 OFF-SET ANO BLACK (NO GRADIENTS) - PIKE C1+ (2023+)/PIKE FLIGHT ATTENDANT C1+ (2022+) 11.4018.090.083
SPRING
3 11.4018.083.005 FORK SPRING AIR TOP CAP - DEBONAIR+ 35MM (.5MM THREAD PITCH) (INCLUDES SPLINED TOP CAP & VALVE COVER) - LYRIK D1+/PIKE C1+ (2023+) 11.4018.083.005
4 Sram FORK SPRING BOTTOMLESS TOKENS - 35MM/38MM SOLO AIR/DEBONAIR (QTY 3) - PIKE/BOXXER B1/LYRIK B1/YARI/SID 35MM/ZEB/DOMAIN B1 11.4018.032.000 FORK SPRING BOTTOMLESS TOKENS - 35MM/38MM SOLO AIR/DEBONAIR (QTY 3) - PIKE/BOXXER B1/LYRIK B1/YARI/SID 35MM/ZEB/DOMAIN B1 11.4018.032.000
4 11.4018.032.001 FORK SPRING BOTTOMLESS TOKENS - 35MM/38MM SOLO AIR/DEBONAIR (QTY 10) PIKE/BOXXER B1/LYRIK B1/YARI/SID 35MM/ZEB/DOMAIN B1 11.4018.032.001
SH 11.4018.096.009 FORK SPRING SEALHEAD - 35MM DEBONAIR+ (INCLUDES SEALHEAD ASSY) - PIKE C1+ (2023+) 11.4018.096.009
DAMPER
FA1 11.4018.119.006 FORK DAMPER ASSEMBLY - CHARGER 3.1 FA (INCLUDES RIGHT SIDE INTERNALS, CONTROL MODULE SOLD SEPARATELY) - PIKE FLIGHT ATTENDANT C1+ (2023+) 11.4018.119.006
FA2 11.4018.118.005 FORK CONTROL MODULE (INCLUDES COMPLETE ELECTRONICS ASSEMBLY, BATTERY SOLD SEPARATELY) - PIKE CHARGER 3.1 FLIGHT ATTENDANT C1+ (2023+) 11.4018.118.005
6 11.4018.082.038 FORK COMPRESSION DAMPER KNOB KIT- CROWN CHARGER RC (INCLUDES KNOB & SCREW) - ZEB SELECT A2+/LYRIK SELECT D1+/PIKE SELECT C1+ (2023+) 11.4018.082.038
7 11.4018.082.043 FORK COMPRESSION DAMPER KNOB KIT- CROWN (INCLUDES KNOB & SCREW) - LYRIK SELECT+/ULT D1+ (2023+), PIKE SELECT+/ULT C1+ (2023+) 11.4018.082.043
8 11.4018.082.042 FORK COMPRESSION DAMPER KNOB KIT- CROWN (INCLUDES KNOB & SCREW) - LYRIK BASE D1+/PIKE BASE C1+ (2023+) 11.4018.082.042
9 11.4018.082.041 FORK REBOUND DAMPER KNOB KIT - (INCLUDES ADJUSTER KNOB & BOLT) - CHARGER 3 RC2 (WITHOUT BUTTERCUPS)- LYRIK D1, PIKE C1, ZEB A1-A2 (2023-2024) 11.4018.082.041
10 Sram FORK REBOUND DAMPER KNOB KIT - (ADJUSTER KNOB & BOLT) CHARGER RC- LYRIK RC C2 (2020+), PIKE RC B3 (2020+), REVELATION RC A1-A2, YARI CHRC B1, ZEB BSE A2/PIKE BSE C1+ (2022+) 11.4015.404.028 FORK REBOUND DAMPER KNOB KIT - (ADJUSTER KNOB & BOLT) CHARGER RC- LYRIK RC C2 (2020+), PIKE RC B3 (2020+), REVELATION RC A1-A2, YARI CHRC B1, ZEB BSE A2/PIKE BSE C1+ (2022+) 11.4015.404.028
11 11.4018.082.040 FORK REBOUND DAMPER KNOB KIT - (INCLUDES ADJUSTER KNOB & BOLT) - CHARGER 3 RC2 (W/ BUTTERCUPS)/CHARGER FLIGHT ATTENDANT - ZEB A1+/PIKE C1+/LYRIK D1+ 11.4018.082.040
D1 11.4018.132.003 FORK DAMPER SHAFT ASSEMBLY - CHARGER3 (INCLUDES SHAFT, PISTON ASSEMBLY) - PIKE C1+(2023+) 11.4018.132.003
D2 11.4018.133.003 FORK DAMPER BODY TUBE - CHARGER3 (INCLUDES SHAFT, PISTON ASSEMBLY) - PIKE C1+(2023+) 11.4018.133.003
D3 11.4018.134.000 FORK DAMPER IFP TUBE - CHARGER 3 - BOXXER D1+(2024+)/ZEB A2+ (2023+)/LYRIK D1+/(2023+)PIKE C1+(2023+) 11.4018.134.000
D4 11.4018.134.001 FORK DAMPER IFP TUBE - CHARGER 3.1 FA - ZEB A3+ (2025+)/LYRIK D2+/(2025+)PIKE C2+(2025+) FLIGHT ATTENDANT 11.4018.134.001
SPARES
12 Sram FORK SHAFT FASTENER KIT - (INCLUDES SHAFT BOLTS & CRUSH WASHERS) - PIKE 11.4015.403.040 FORK SHAFT FASTENER KIT - (INCLUDES SHAFT BOLTS & CRUSH WASHERS) - PIKE 11.4015.403.040
13 11.4018.115.001 FORK HOSE CLAMP - GLOSS BLACK (INCLUDES CABLE CLAMP & SCREW) ZEB A1 (2021+), ZEB/PIKE/LYRIK FLIGHT ATTENDANT (2022+) 11.4018.115.001
14 11.4018.116.000 FORK FOAM RING KIT - 35MM X 4MM (QTY 20) - SID 35MM C1+/PIKE C1+/LYRIK D1+ 11.4018.116.000
bulk Sram FORK DUST WIPER KIT - 35MM BLACK LOW FRICTION SKF (INCLUDES FLANGELESS DUST WIPERS) (QTY 20) - PIKE/LYRIK B1/YARI/BOXXER/DOMAIN/REVELATION 35MM/35G 11.4018.028.014 FORK DUST WIPER KIT - 35MM BLACK LOW FRICTION SKF (INCLUDES FLANGELESS DUST WIPERS) (QTY 20) - PIKE/LYRIK B1/YARI/BOXXER/DOMAIN/REVELATION 35MM/35G 11.4018.028.014
15 Sram AXLE MAXLE STEALTH FRONT, 15X110, LENGTH 158MM, THREAD LENGTH 9MM, THREAD PITCH M15X1.50 - BOOST COMPATIBLE 00.4318.005.019 AXLE MAXLE STEALTH FRONT, 15X110, LENGTH 158MM, THREAD LENGTH 9MM, THREAD PITCH M15X1.50 - BOOST COMPATIBLE 00.4318.005.019
16 Sram FORK CRUSH WASHERS - 8MM (QTY 50) 11.4015.259.000 FORK CRUSH WASHERS - 8MM (QTY 50) 11.4015.259.000
17 11.4018.126.000 FORK HUB ENDCAP ADAPTERS - (CONVERTS FROM 31MM TO 21MM FOR USE WITH NON-TORQUE CAP HUBS) - PIKE C1/LYRIK D1/ZEB A2 FLIGHT ATTENDANT (2023+) 11.4018.126.000
ns 11.4118.107.000 SCHRADER AIR CAP - (INCLUDES CAP AND O-RING) - ROCKSHOX UNIVERSAL AIR CAP FOR FORKS AND SHOCKS 11.4118.107.000
18 11.4018.131.000 FORK LOWER LEG PLUGS - (INCLUDES 2 PLUGS) - PIKE C1/LYRIK D1/ZEB A2 FLIGHT ATTENDANT (2023+), 38MM BOXXER D1+(2024+) 11.4018.131.000
19 11.4018.135.000 FENDER BOLT KIT - M3-.5X11MM BUTTON HEAD (QTY 5) - ZEB A1+, LYRIK D1+, PIKE C1+, DOMAIN B1+, SID C1+, BOXXER D1+ 11.4018.135.000
ns Sram FORK LOWER LEG DUST SEAL INSTALLATION TOOL 35MM (FOR FLANGELESS AND FLANGED DUST SEALS) 00.4318.032.000 FORK LOWER LEG DUST SEAL INSTALLATION TOOL 35MM (FOR FLANGELESS AND FLANGED DUST SEALS) 00.4318.032.000
ns Sram HIGH-PRESSURE FORK/SHOCK PUMP (300 PSI MAX) ROCKSHOX 00.4315.023.010 HIGH-PRESSURE FORK/SHOCK PUMP (300 PSI MAX) ROCKSHOX 00.4315.023.010
ns Sram HIGH-PRESSURE FORK/SHOCK PUMP (300 PSI MAX) ROCKSHOX DIGITALGAUGE 00.4315.023.040 HIGH-PRESSURE FORK/SHOCK PUMP (300 PSI MAX) ROCKSHOX DIGITALGAUGE 00.4315.023.040
ns Sram REAR SHOCK SCHRADER VALVE REMOVAL TOOL ROCKSHOX 00.4315.022.010 REAR SHOCK SCHRADER VALVE REMOVAL TOOL ROCKSHOX 00.4315.022.010
ns 11.4318.016.000 MAXIMA PLUSH DYNAMIC SUSPENSION LUBE LIGHT, 120ML BOTTLE (REPLACES 0W-30) - PIKE/REVELATION/LYRIK/YARI/BOXXER/ZEB/DOMAIN/REVERB XPLR/SHOCK AIR CANS 11.4318.016.000
ns 11.4318.016.001 MAXIMA PLUSH DYNAMIC SUSPENSION LUBE LIGHT, 1 LITER BOTTLE (REPLACES 0W-30) - PIKE/REVELATION/LYRIK/YARI/BOXXER/ZEB/DOMAIN/REVERB XPLR/SHOCK AIR CANS 11.4318.016.001
ns 11.4318.016.002 MAXIMA PLUSH DYNAMIC SUSPENSION LUBE HEAVY, 120ML BOTTLE - SID/SIDSL/RUDY/PIKE/LYRIK/ZEB - LOWER LEGS/AIR SPRINGS 11.4318.016.002
ns 11.4318.016.003 MAXIMA PLUSH DYNAMIC SUSPENSION LUBE HEAVY, 1 LITER BOTTLE - SID/SIDSL/RUDY/PIKE/LYRIK/ZEB - LOWER LEGS/AIR SPRINGS 11.4318.016.003
ns Sram GREASE SRAM BUTTER 20ML SYRINGE, FRICTION REDUCING GREASE BYSLICKOLEUM - DOUBLE TIME HUB PAWLS, FORKS & REVERB SERVICE 00.4318.008.000 GREASE SRAM BUTTER 20ML SYRINGE, FRICTION REDUCING GREASE BYSLICKOLEUM - DOUBLE TIME HUB PAWLS, FORKS & REVERB SERVICE 00.4318.008.000
ns Sram GREASE SRAM BUTTER 1OZ CONTAINER, FRICTION REDUCING GREASE BY SLICKOLEUM - DOUBLE TIME HUB PAWLS, FORKS & REVERB SERVICE 00.4318.008.001 GREASE SRAM BUTTER 1OZ CONTAINER, FRICTION REDUCING GREASE BY SLICKOLEUM - DOUBLE TIME HUB PAWLS, FORKS & REVERB SERVICE 00.4318.008.001
ns Sram GREASE SRAM BUTTER 500ML CONTAINER, FRICTION REDUCING GREASEBY SLICKOLEUM - RECOMMENDED FOR SRAM DOUBLE TIME HUBS & WHEELS, ROCKSHOX FORKS AND REVERB SERVICE 00.4318.008.003 GREASE SRAM BUTTER 500ML CONTAINER, FRICTION REDUCING GREASEBY SLICKOLEUM - RECOMMENDED FOR SRAM DOUBLE TIME HUBS & WHEELS, ROCKSHOX FORKS AND REVERB SERVICE 00.4318.008.003
ns Sram MAXIMA SUSPENSION OIL PLUSH, 3WT 1 LITER BOTTLE - REAR SHOCK/CHARGER DAMPER 11.4115.094.030 MAXIMA SUSPENSION OIL PLUSH, 3WT 1 LITER BOTTLE - REAR SHOCK/CHARGER DAMPER 11.4115.094.030
ns Sram MAXIMA SUSPENSION OIL PLUSH, 7WT 1 LITER BOTTLE - REAR SHOCK/CHARGER DAMPER 11.4115.094.040 MAXIMA SUSPENSION OIL PLUSH, 7WT 1 LITER BOTTLE - REAR SHOCK/CHARGER DAMPER 11.4115.094.040
ns 00.4318.098.000 ROCKSHOX UNIVERSAL BLEED KIT (INCLUDES 2 SYRINGES, 2 STANDARD FITTINGS, CHARGER FITTING, AND REVERB BLEEDING EDGE FITTING) 00.4318.098.000
ns Sram ROCKSHOX CHARGER DAMPER STANDARD BLEED KIT (INCLUDES SYRINGE, CHARGER1 FITTING, STANDARD FITTING, SUSPENSION OIL 3W) - CHARGER/RACEDAY DAMPERS 00.4318.007.000 ROCKSHOX CHARGER DAMPER STANDARD BLEED KIT (INCLUDES SYRINGE, CHARGER1 FITTING, STANDARD FITTING, SUSPENSION OIL 3W) - CHARGER/RACEDAY DAMPERS 00.4318.007.000
ns Sram ROCKSHOX GLASS FIBER REINFORCED NYLON NON-SCRATCH O-RING PICK TOOLS (QTY 5, FOR USE ON SUSPENSION PRODUCTS)00.4318.012.013 ROCKSHOX GLASS FIBER REINFORCED NYLON NON-SCRATCH O-RING PICK TOOLS (QTY 5, FOR USE ON SUSPENSION PRODUCTS) 00.4318.012.013
