Sram 35 GOLD RL A1-A2 (2020-2024)

35 GOLD RL A1-A2 (2020-2024) RockShox

FS-35G-RL-A1, FS-35G-RL-A2
Sram RockShox 35 GOLD RL A1-A2 (2020-2024)

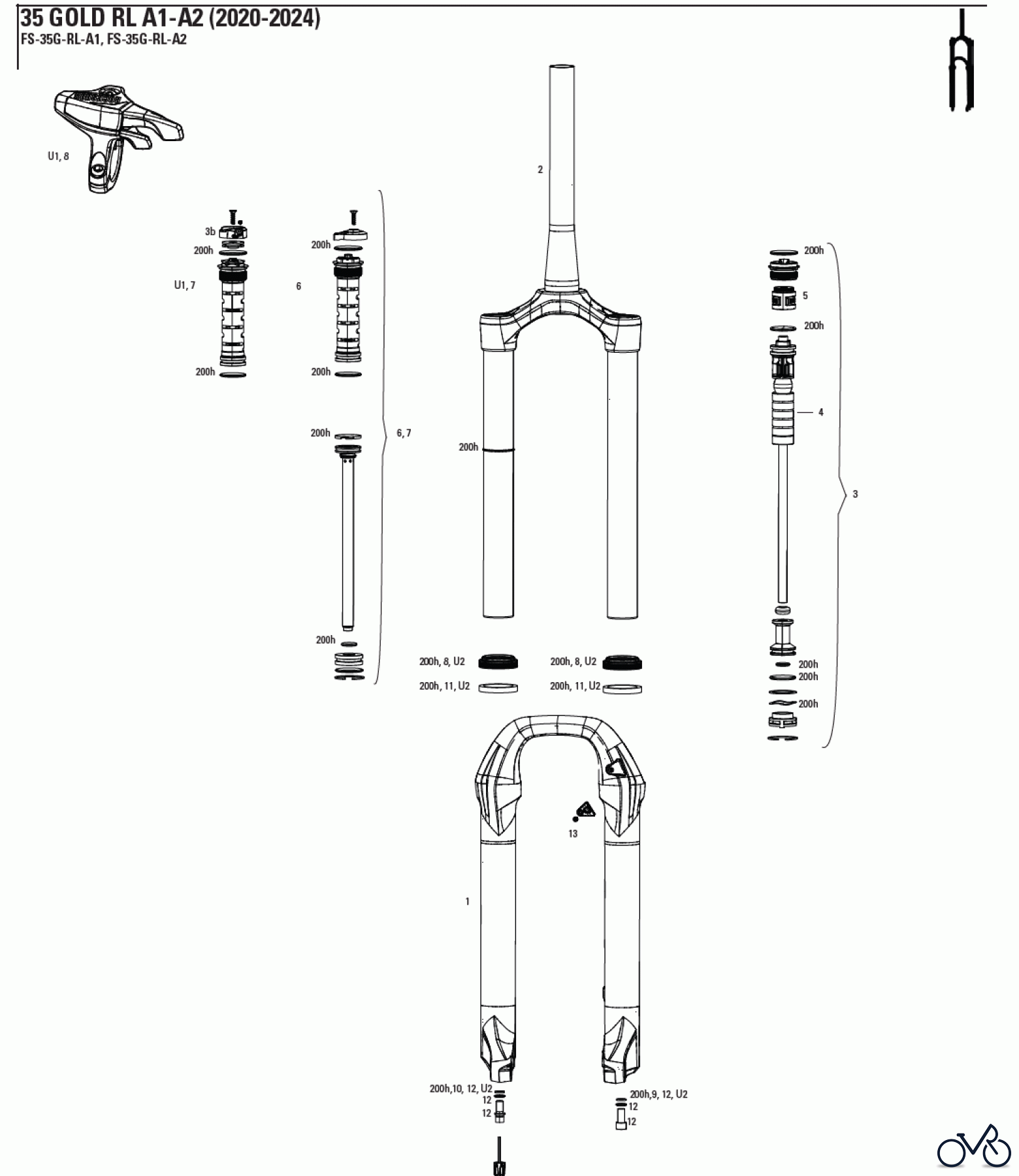

Here you will find the spare parts drawing for Sram RockShox 35 GOLD RL A1-A2 (2020-2024). Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

PosArticle NumberDescription
U1 Sram REMOTE UPGRADE KIT - ONELOC RIGHT/ABOVE, LEFT/BELOW 10MM MC RL DAMPER PUSH TO LOCK (INCLUDES REMOTE, COMP DAMPER, CABLE&HOUSING) - 35 GOLD A1-A2 (2020-2024) 00.4318.002.021 REMOTE UPGRADE KIT - ONELOC RIGHT/ABOVE, LEFT/BELOW 10MM MC RL DAMPER PUSH TO LOCK (INCLUDES REMOTE, COMP DAMPER, CABLE&HOUSING) - 35 GOLD A1-A2 (2020-2024) 00.4318.002.021
U2 Sram FORK DUST WIPER UPGRADE KIT - 35MM BLACK FLANGELESS ULTRA-LOW FRICTION SKF SEALS (INCLUDES DUST WIPERS, 4MM, 6MM FOAM RINGS-PIKE/LYRIKB1/YARI/REVELATION/BOXXER/DOMAIN/35/ 00.4318.045.004 FORK DUST WIPER UPGRADE KIT - 35MM BLACK FLANGELESS ULTRA-LOW FRICTION SKF SEALS (INCLUDES DUST WIPERS, 4MM, 6MM FOAM RINGS-PIKE/LYRIKB1/YARI/REVELATION/BOXXER/DOMAIN/35/ 00.4318.045.004
200h Sram 200 HOUR/1 YEAR SERVICE KIT (INCLUDES DUST SEALS, FOAM RINGS, O-RINGS SEALS) - 35 GOLD RL A1 (2020-2024) 00.4318.025.050 200 HOUR/1 YEAR SERVICE KIT (INCLUDES DUST SEALS, FOAM RINGS, O-RINGS SEALS) - 35 GOLD RL A1 (2020-2024) 00.4318.025.050
LOWER LEG
1 11.4018.091.044 FORK LOWER LEG - (DECALS INCLUDED) 27 15X110 BOOST GLOSS BLACK - 35G A1-A2 (2020-2024), 35S A1 (2021-2024) 11.4018.091.044
1 11.4018.091.045 FORK LOWER LEG - (DECALS INCLUDED) 27 15X110 BOOST DIFFUSION BLACK - 35G A1-A2 (2020-2024), 35S A1 (2021-2024) 11.4018.091.045
1 11.4018.091.046 FORK LOWER LEG - (DECALS INCLUDED) 29 15X110 BOOST GLOSS BLACK - 35G A1-A2 (2020-2024), 35S A1 (2021-2024) 11.4018.091.046
1 11.4018.091.047 FORK LOWER LEG - (DECALS INCLUDED) 29 15X110 BOOST DIFFUSION BLACK - 35G A1-A2 (2020-2024), 35S A1 (2021-2024) 11.4018.091.047
1 11.4018.091.048 FORK LOWER LEG - (DECALS INCLUDED) 27 FENDER 15X110 BOOST™ GLOSS BLACK - 35G EMTB A1-A2 (2020-2024), 35S A1 (2021-2024) 11.4018.091.048
1 11.4018.091.049 FORK LOWER LEG - (DECALS INCLUDED) 27 FENDER 15X110 BOOST™ DIFFUSION BLACK - 35G EMTB A1-A2 (2020-2024), 35S A1 (2021-2024) 11.4018.091.049
1 11.4018.091.050 FORK LOWER LEG - (DECALS INCLUDED) 29 FENDER 15X110 BOOST™ GLOSS BLACK - 35G EMTB A1-A2 (2020-2024), 35S A1 (2021-2024) 11.4018.091.050
1 11.4018.091.051 FORK LOWER LEG - (DECALS INCLUDED) 29 FENDER 15X110 BOOST™ DIFFUSION BLACK - 35G EMTB A1-A2 (2020-2024), 35S A1 (2021-2024) 11.4018.091.051
2 11.4018.090.008 FORK CSU - DEBONAIR 27.5 BOOST™ 44 OFF-SET ALUMINUM TAPER GLOSS BLACK (NO GRADIENTS) 35G A1-A2 (2020-2024) 11.4018.090.008
2 11.4018.090.009 FORK CSU - DEBONAIR 29 BOOST™ 51 OFF-SET ALUMINUM TAPER GLOSS BLACK (NO GRADIENTS) 35G A1-A2 (2020-2024) 11.4018.090.009
2 11.4018.090.058 FORK CSU - DEBONAIR 27.5/29 BOOST™ 44 OFF-SET ALUMINUM TAPER FENDER GLOSS BLACK (NO GRADIENTS) 35G EMTB A1-A2 (2020-2024) 11.4018.090.058
2 11.4018.090.059 FORK CSU - DEBONAIR 27.5/29 BOOST™ 44 OFF-SET ALUMINUM TAPER FENDER DIFFUSION BLACK (NO GRADIENTS) 35G EMTB A1-A2 (2020-2024) 11.4018.090.059
SPRING INTERNALS
3 Sram FORK SPRING DEBONAIR ASSEMBLY - 100-160MM (INCLUDES TOP CAP, DEBONAIR SPRING, TRAVEL SPACERS & SHAFT BOLT) - 35G A1-A2 (2020-2024) 11.4018.087.005 FORK SPRING DEBONAIR ASSEMBLY - 100-160MM (INCLUDES TOP CAP, DEBONAIR SPRING, TRAVEL SPACERS & SHAFT BOLT) - 35G A1-A2 (2020-2024) 11.4018.087.005
3b 11.4018.082.028 FORK COMPRESSION DAMPER SPARE HOUSING STOP - FITS TK AND RL REMOTE DAMPERS (INCLUDES HOUSING STOP AND SET SCREW) - JUDY/RECON/30/35 (2020-2024)/DOMAIN B1 (2022-2024) 11.4018.082.028
TRAVEL SPACERS
4 Sram FORK SPRING TRAVEL SPACERS - SOLO AIR (USED TO CHANGE TRAVEL) - RECON/RECON BOOST, 30 GOLD/SILVER, XC 32/30, PARAGON, SEKTOR SILVER, 35G/JUDY G 11.4018.034.000 FORK SPRING TRAVEL SPACERS - SOLO AIR (USED TO CHANGE TRAVEL) - RECON/RECON BOOST, 30 GOLD/SILVER, XC 32/30, PARAGON, SEKTOR SILVER, 35G/JUDY G 11.4018.034.000
5 Sram FORK SPRING BOTTOMLESS TOKENS - SOLO AIR/DEBONAIR (QTY 5) - SID/REBA/REVELATION/RS-1/BLUTO/ARGYLE RCT SOLO AIR/35G 11.4018.032.003 FORK SPRING BOTTOMLESS TOKENS - SOLO AIR/DEBONAIR (QTY 5) - SID/REBA/REVELATION/RS-1/BLUTO/ARGYLE RCT SOLO AIR/35G 11.4018.032.003
DAMPER INTERNALS
6 Sram FORK DAMPER ASSEMBLY - MOCO (INCLUDES COMPRESSION & REBOUND DAMPER, SEALHEAD, KNOBS, & SHAFT BOLT) -35G RL CRN A1-A2 (2020-2024) 11.4018.088.002 FORK DAMPER ASSEMBLY - MOCO (INCLUDES COMPRESSION & REBOUND DAMPER, SEALHEAD, KNOBS, & SHAFT BOLT) -35G RL CRN A1-A2 (2020-2024) 11.4018.088.002
7 Sram FORK DAMPER ASSEMBLY - MOCO (INCLUDES COMPRESSION & REBOUND DAMPER, SEALHEAD, KNOBS, & SHAFT BOLT) -35G RL RMT A1-A2 (2020-2024) 11.4018.088.003 FORK DAMPER ASSEMBLY - MOCO (INCLUDES COMPRESSION & REBOUND DAMPER, SEALHEAD, KNOBS, & SHAFT BOLT) -35G RL RMT A1-A2 (2020-2024) 11.4018.088.003
8 Sram REMOTE - ONELOC LEFT/ABOVE, RIGHT/BELOW 10MM, REMOTE ONLY (INCLUDES REMOTE, CABLE&HOUSING) - METRIC REAR SHOCKS, RL (2013+) & CHARGER DAMPERS 00.4318.002.009 REMOTE - ONELOC LEFT/ABOVE, RIGHT/BELOW 10MM, REMOTE ONLY (INCLUDES REMOTE, CABLE&HOUSING) - METRIC REAR SHOCKS, RL (2013+) & CHARGER DAMPERS 00.4318.002.009
8 Sram REMOTE - ONELOC RIGHT/ABOVE, LEFT/BELOW 10MM, REMOTE ONLY (INCLUDES REMOTE, CABLE&HOUSING) - METRIC REAR SHOCKS, RL (2013+) & CHARGER DAMPERS 00.4318.002.010 REMOTE - ONELOC RIGHT/ABOVE, LEFT/BELOW 10MM, REMOTE ONLY (INCLUDES REMOTE, CABLE&HOUSING) - METRIC REAR SHOCKS, RL (2013+) & CHARGER DAMPERS 00.4318.002.010
9 Sram FORK CRUSH WASHERS - 8MM (QTY 50) 11.4015.259.000 FORK CRUSH WASHERS - 8MM (QTY 50) 11.4015.259.000
10 11.4018.127.000 FORK CRUSH WASHERS (FLANGED 8MM) QTY 50 (ZEB , BOXXER 35MM, 35G, 35S, REVELATION RC/CHRC, YARI, PIKE RC B1+, LYRIK RC C1+ 11.4018.127.000
11 Sram FORK FOAM RING KIT - 35MM X 6MM (QTY 20) - PIKE A1-B4/LYRIK A1-C3/YARI A1-B3/BOXXER A1-C2/DOMAIN DUAL CROWN A1/PSYLO A1+ 11.4018.028.005 FORK FOAM RING KIT - 35MM X 6MM (QTY 20) - PIKE A1-B4/LYRIK A1-C3/YARI A1-B3/BOXXER A1-C2/DOMAIN DUAL CROWN A1/PSYLO A1+ 11.4018.028.005
12 11.4018.124.000 FORK SHAFT FASTENER KIT - (INCLUDES SHAFT BOLTS & CRUSH WASHERS) - 35G, 35S, DOMAIN B1+ 11.4018.124.000
13 Sram FORK HOSE CLAMP - PIKE/LYRIK/YARI/SID/REVELATION/BOXXER/XC30/30G/30S/RECON/SEKTOR/BLUTO/REBA/35G/35S 11.4015.534.010 FORK HOSE CLAMP - PIKE/LYRIK/YARI/SID/REVELATION/BOXXER/XC30/30G/30S/RECON/SEKTOR/BLUTO/REBA/35G/35S 11.4015.534.010
ns 11.4118.107.000 SCHRADER AIR CAP - (INCLUDES CAP AND O-RING) - ROCKSHOX UNIVERSAL AIR CAP FOR FORKS AND SHOCKS 11.4118.107.000
TOOLS& GREASE
ns Sram FORK LOWER LEG DUST SEAL INSTALLATION TOOL 35MM (FOR FLANGELESS AND FLANGED DUST SEALS) 00.4318.032.000 FORK LOWER LEG DUST SEAL INSTALLATION TOOL 35MM (FOR FLANGELESS AND FLANGED DUST SEALS) 00.4318.032.000
ns Sram ROCKSHOX SUSPENSION OIL, 5WT, 1 LITER BOTTLE - FORK DAMPER 11.4015.354.010 ROCKSHOX SUSPENSION OIL, 5WT, 1 LITER BOTTLE - FORK DAMPER 11.4015.354.010
ns Sram ROCKSHOX SUSPENSION OIL, 5WT, 120ML BOTTLE - FORK DAMPER 11.4315.021.020 ROCKSHOX SUSPENSION OIL, 5WT, 120ML BOTTLE - FORK DAMPER 11.4315.021.020
ns Sram ROCKSHOX SUSPENSION OIL, 15WT, 120ML BOTTLE - LOWER LEGS 11.4315.021.040 ROCKSHOX SUSPENSION OIL, 15WT, 120ML BOTTLE - LOWER LEGS 11.4315.021.040
ns Sram ROCKSHOX SUSPENSION OIL, 15WT, 1 LITER BOTTLE - LOWER LEGS 11.4015.354.030 ROCKSHOX SUSPENSION OIL, 15WT, 1 LITER BOTTLE - LOWER LEGS 11.4015.354.030
ns Sram GREASE SRAM BUTTER 20ML SYRINGE, FRICTION REDUCING GREASE BYSLICKOLEUM - DOUBLE TIME HUB PAWLS, FORKS & REVERB SERVICE 00.4318.008.000 GREASE SRAM BUTTER 20ML SYRINGE, FRICTION REDUCING GREASE BYSLICKOLEUM - DOUBLE TIME HUB PAWLS, FORKS & REVERB SERVICE 00.4318.008.000
ns Sram GREASE SRAM BUTTER 1OZ CONTAINER, FRICTION REDUCING GREASE BY SLICKOLEUM - DOUBLE TIME HUB PAWLS, FORKS & REVERB SERVICE 00.4318.008.001 GREASE SRAM BUTTER 1OZ CONTAINER, FRICTION REDUCING GREASE BY SLICKOLEUM - DOUBLE TIME HUB PAWLS, FORKS & REVERB SERVICE 00.4318.008.001
ns Sram HIGH-PRESSURE FORK/SHOCK PUMP (300 PSI MAX) ROCKSHOX 00.4315.023.010 HIGH-PRESSURE FORK/SHOCK PUMP (300 PSI MAX) ROCKSHOX 00.4315.023.010
ns Sram HIGH-PRESSURE FORK/SHOCK PUMP (300 PSI MAX) ROCKSHOX DIGITALGAUGE00.4315.023.040 HIGH-PRESSURE FORK/SHOCK PUMP (300 PSI MAX) ROCKSHOX DIGITALGAUGE 00.4315.023.040
