Sram JUDY GOLD RL A1-A3 (2018+)

JUDY GOLD RL A1-A3 (2018+) RockShox

FS-JDYG-RL-A1, FS-JDYG-RL-A2, FS-JDYG-RL-A3
Sram RockShox JUDY GOLD RL A1-A3 (2018+)

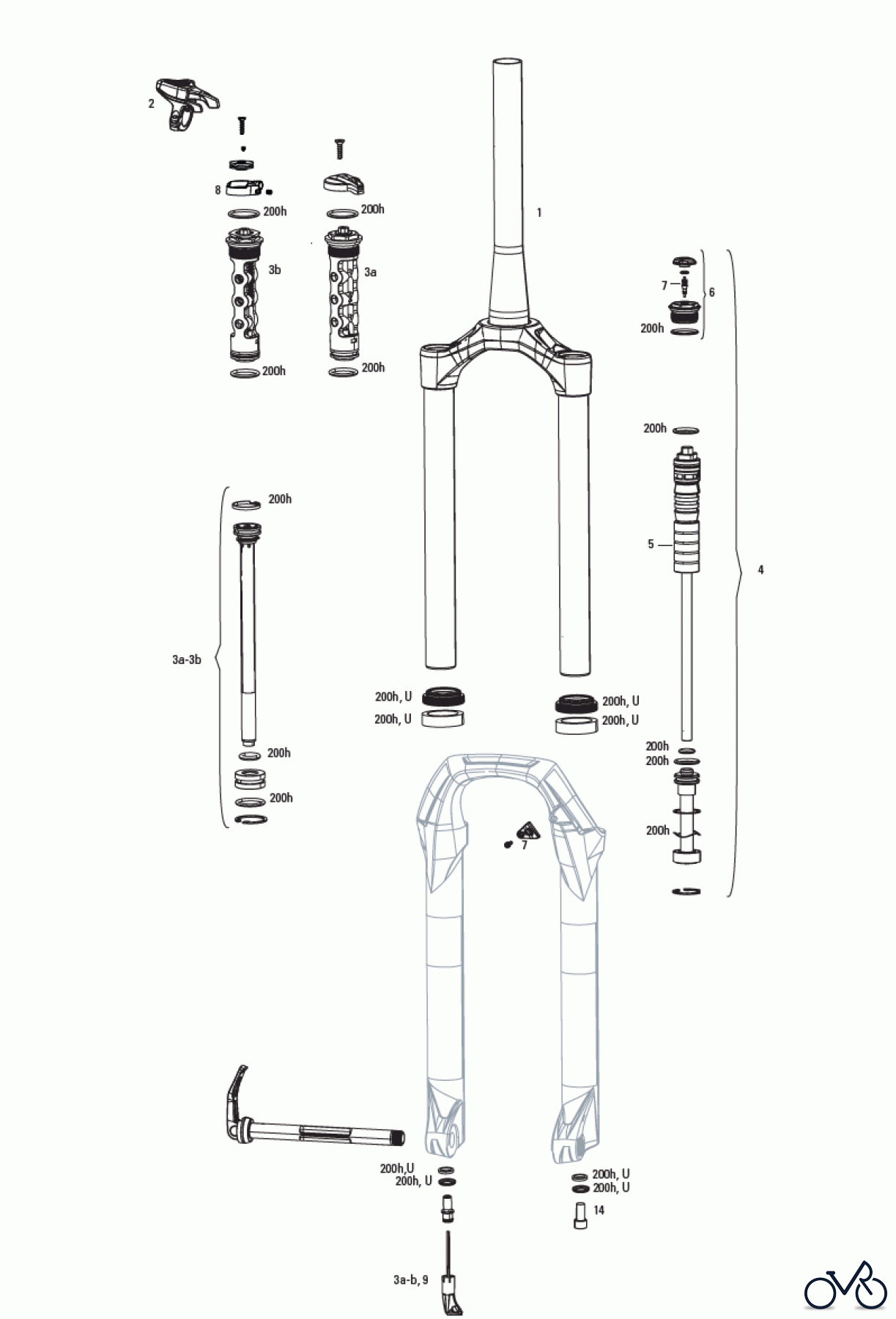

Here you will find the spare parts drawing for Sram RockShox JUDY GOLD RL A1-A3 (2018+). Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

PosArticle NumberDescription
U Sram FORK DUST WIPER UPGRADE KIT - 30MM BLACK FLANGELESS LOW FRICTION SEALS (INCLUDES DUST WIPERS & 10MM FOAM RINGS) - JUDY SILVER/JUDY GOLD (BOOST™ FORKS)/RUDY 00.4318.045.001 FORK DUST WIPER UPGRADE KIT - 30MM BLACK FLANGELESS LOW FRICTION SEALS (INCLUDES DUST WIPERS & 10MM FOAM RINGS) - JUDY SILVER/JUDY GOLD (BOOST™ FORKS)/RUDY 00.4318.045.001
U Sram FORK DUST WIPER UPGRADE KIT - 30MM BLACK FLANGED LOW FRICTION SEALS (INCLUDES DUST WIPERS, 5MM & 10MM FOAM RINGS) - XC30/30GOLD/30SILVER/PARAGON/PSYLO/DUKE/JUDY (non-BOOST) 00.4318.045.000 FORK DUST WIPER UPGRADE KIT - 30MM BLACK FLANGED LOW FRICTION SEALS (INCLUDES DUST WIPERS, 5MM & 10MM FOAM RINGS) - XC30/30GOLD/30SILVER/PARAGON/PSYLO/DUKE/JUDY (non-BOOST) 00.4318.045.000
200h Sram 200 HOUR/1 YEAR SERVICE KIT (INCLUDES DUST SEALS, FOAM RINGS, O-RING SEALS) -JUDY GOLD AND SILVER BOOST A1+ (2018+) SERVICE- non-BOOST 00.4315.032.648 200 HOUR/1 YEAR SERVICE KIT (INCLUDES DUST SEALS, FOAM RINGS, O-RING SEALS) -JUDY GOLD AND SILVER BOOST A1+ (2018+) SERVICE- non-BOOST 00.4315.032.648
200h Sram 200 HOUR/1 YEAR SERVICE KIT (INCLUDES DUST SEALS, FOAM RINGS, O-RING SEALS) - 30 GOLD AND SILVER (A1-A5/2016-2021)/JUDY SILVER AND GOLD non-BOOST (A1+/2018+) CSU BOOST 00.4315.032.649 200 HOUR/1 YEAR SERVICE KIT (INCLUDES DUST SEALS, FOAM RINGS, O-RING SEALS) - 30 GOLD AND SILVER (A1-A5/2016-2021)/JUDY SILVER AND GOLD non-BOOST (A1+/2018+) CSU BOOST 00.4315.032.649
1 11.4018.008.552 FORK CSU - SOLO AIR 27 BOOST™ 15X110 42OS ALUMINUM TAPER BLACK (NO GRADIENTS) FAST BLACK - JUDY GOLD A1+ (2018+) 11.4018.008.552
1 11.4018.008.553 FORK CSU - SOLO AIR 2927+BOOST™ 15X110 51OS ALUMINUM TAPER BLACK (NO GRADIENTS) FAST BLACK - JUDY GOLD A1+ (2018+) CSU NON-BOOST 11.4018.008.553
1 11.4018.008.559 FORK CSU - SOLO AIR 29 51 OFF-SET ALUMINUM TAPER BLACK (NO GRADIENTS) FAST BLACK - 30 GOLD TK A1 (2014+)/RL A1 (2018+)/JUDY GOLD TK/RL A1+ (2018+) 11.4018.008.559
2 Sram REMOTE - ONELOC LEFT/ABOVE, RIGHT/BELOW 10MM, REMOTE ONLY (INCLUDES REMOTE, CABLE&HOUSING) - METRIC REAR SHOCKS, RL (2013+) & CHARGER DAMPERS 00.4318.002.009 REMOTE - ONELOC LEFT/ABOVE, RIGHT/BELOW 10MM, REMOTE ONLY (INCLUDES REMOTE, CABLE&HOUSING) - METRIC REAR SHOCKS, RL (2013+) & CHARGER DAMPERS 00.4318.002.009
2 Sram REMOTE - ONELOC RIGHT/ABOVE, LEFT/BELOW 10MM, REMOTE ONLY (INCLUDES REMOTE, CABLE&HOUSING) - METRIC REAR SHOCKS, RL (2013+) & CHARGER DAMPERS 00.4318.002.010 REMOTE - ONELOC RIGHT/ABOVE, LEFT/BELOW 10MM, REMOTE ONLY (INCLUDES REMOTE, CABLE&HOUSING) - METRIC REAR SHOCKS, RL (2013+) & CHARGER DAMPERS 00.4318.002.010
3a 11.4018.104.028 FORK DAMPER ASSEMBLY - CROWN RL, 27.5/29 (THREAD PITCH 1.0MM)(INCLUDES RIGHT SIDE INTERNALS) - 30 GOLD A1+ /JUDY GOLD A1+ (BOOST AND NON-BOOST) 11.4018.104.028
3b 11.4018.104.029 FORK DAMPER ASSEMBLY - REMOTE 10MM, 27.5/29 (2013+ PUSHLOC, ONELOC, TWISTLOC) RL (THREAD PITCH 1.0MM)(RIGHT SIDE INTERNALS) - 30 GOLD A1+/JUDY GOLD A1+ (NON-BOOST) 11.4018.104.029
3b 11.4018.104.032 FORK DAMPER ASSEMBLY - REMOTE 10MM, 27.5/29 (2013+ PUSHLOC, ONELOC, TWISTLOC) RL (THREAD PITCH 1.0MM)(RIGHT SIDE INTERNALS)- 30 GOLD A1+/JUDY GOLD A3+ (BOOST) 11.4018.104.032
3a 11.4018.104.030 FORK DAMPER ASSEMBLY - CROWN RL , 26 (THREAD PITCH 1.0MM) (INCLUDES RIGHT SIDE INTERNALS) - 30 GOLD A1+ /JUDY GOLD A3+ (NON-BOOST) 11.4018.104.030
3b 11.4018.104.031 FORK DAMPER ASSEMBLY - REMOTE 10MM, 26 (2013+ PUSHLOC, ONELOC, TWISTLOC) RL (THREAD PITCH 1.0MM) (INCLUDES RIGHT SIDE INTERNALS)- 30 GOLD A1+/JUDY GOLD A3+ (NON-BOOST) 11.4018.104.031
4 Sram FORK SPRING SOLO AIR ASSEMBLY - 80MM-27.5/29 (INCLUDES TOP CAP, AIR PISTON, SHAFT BOLT) - 30 GOLD A1/JUDY GOLD TK/RL A1+ (2018+) 11.4018.010.101 FORK SPRING SOLO AIR ASSEMBLY - 80MM-27.5/29 (INCLUDES TOP CAP, AIR PISTON, SHAFT BOLT) - 30 GOLD A1/JUDY GOLD TK/RL A1+ (2018+) 11.4018.010.101
4 Sram FORK SPRING SOLO AIR ASSEMBLY - 100MM-27.5/29 (INCLUDES TOP CAP, AIR PISTON, SHAFT BOLT) - 30 GOLD A1/JUDY GOLD TK/RL A1+ (2018+) 11.4018.010.102 FORK SPRING SOLO AIR ASSEMBLY - 100MM-27.5/29 (INCLUDES TOP CAP, AIR PISTON, SHAFT BOLT) - 30 GOLD A1/JUDY GOLD TK/RL A1+ (2018+) 11.4018.010.102
4 Sram FORK SPRING SOLO AIR ASSEMBLY - 100MM-26 (INCLUDES TOP CAP, AIR PISTON, SHAFT BOLT) - 30 GOLD A1/JUDY GOLD TK/RL A1+ (2018+) 11.4018.010.100 FORK SPRING SOLO AIR ASSEMBLY - 100MM-26 (INCLUDES TOP CAP, AIR PISTON, SHAFT BOLT) - 30 GOLD A1/JUDY GOLD TK/RL A1+ (2018+) 11.4018.010.100
4 Sram FORK SPRING SOLO AIR ASSEMBLY - 120MM-27.5/29 (INCLUDES TOP CAP, AIR PISTON, SHAFT BOLT) - 30 GOLD A1/JUDY GOLD TK/RL A1+ (2018+) 11.4018.010.103 FORK SPRING SOLO AIR ASSEMBLY - 120MM-27.5/29 (INCLUDES TOP CAP, AIR PISTON, SHAFT BOLT) - 30 GOLD A1/JUDY GOLD TK/RL A1+ (2018+) 11.4018.010.103
5 Sram FORK SPRING TRAVEL SPACERS - SOLO AIR (USED TO CHANGE TRAVEL) - RECON/RECON BOOST, 30 GOLD/SILVER, XC 32/30, PARAGON, SEKTOR SILVER, 35G/JUDY G 11.4018.034.000 FORK SPRING TRAVEL SPACERS - SOLO AIR (USED TO CHANGE TRAVEL) - RECON/RECON BOOST, 30 GOLD/SILVER, XC 32/30, PARAGON, SEKTOR SILVER, 35G/JUDY G 11.4018.034.000
6 11.4018.012.005 FORK SPRING AIR TOP CAP - 30MM (1.0MM THREAD PITCH) - 30 GOLD A1+ (2015-2019)/JUDY GOLD TK/RL A1+ (2018+) 11.4018.012.005
7 Sram AIR VALVE KIT - SCHRADER CORE (QTY 2) - FORKS/SHOCKS/REVERB 11.4308.327.002 AIR VALVE KIT - SCHRADER CORE (QTY 2) - FORKS/SHOCKS/REVERB 11.4308.327.002
8 11.4018.082.028 FORK COMPRESSION DAMPER SPARE HOUSING STOP - FITS TK AND RL REMOTE DAMPERS (INCLUDES HOUSING STOP AND SET SCREW) - JUDY/RECON/30/35 (2020-2022)/DOMAIN B1+ (2022+) 11.4018.082.028
ns Sram FORK COMPRESSION DAMPER KNOB KIT - REMOTE 17MM (POPLOC, PRE-2013 PUSHLOC) (INCLUDES SPOOL & CLAMP)- XC30/30 GOLD/30 SILVER/JUDY SILVER (NONBOOST)/JUDY B1/JUDY GOLD (NONBOOST) 11.4015.536.010 FORK COMPRESSION DAMPER KNOB KIT - REMOTE 17MM (POPLOC, PRE-2013 PUSHLOC) (INCLUDES SPOOL & CLAMP)- XC30/30 GOLD/30 SILVER/JUDY SILVER (NONBOOST)/JUDY B1/JUDY GOLD (NONBOOST) 11.4015.536.010
9 Sram FORK REBOUND DAMPER KNOB KIT - (INCLUDES ADJUSTER KNOB) 29" - XC30A1-A3/30 GOLD A1+/JUDY GOLD A1+/30 SILVER A1, SEKTOR SILVER A1+/RECON A1+ 11.4018.033.002 FORK REBOUND DAMPER KNOB KIT - (INCLUDES ADJUSTER KNOB) 29" - XC30A1-A3/30 GOLD A1+/JUDY GOLD A1+/30 SILVER A1, SEKTOR SILVER A1+/RECON A1+ 11.4018.033.002
ns Sram FORK LOWER LEG DUST SEAL INSTALLATION TOOL 30MM (FOR FLANGELESS AND FLANGED DUST SEALS) 00.4318.030.000 FORK LOWER LEG DUST SEAL INSTALLATION TOOL 30MM (FOR FLANGELESS AND FLANGED DUST SEALS) 00.4318.030.000
bulk Sram FORK CRUSH WASHERS - 8MM (QTY 50) 11.4015.259.000 FORK CRUSH WASHERS - 8MM (QTY 50) 11.4015.259.000
bulk Sram FORK CRUSH WASHER RETAINER - 8MM (QTY 50) 11.4015.260.000 FORK CRUSH WASHER RETAINER - 8MM (QTY 50) 11.4015.260.000
11 Sram FORK DUST WIPER UPGRADE KIT - 30MM BLACK FLANGED LOW FRICTION SEALS (INCLUDES DUST WIPERS, 5MM & 10MM FOAM RINGS) - XC30/30GOLD/30SILVER/PARAGON/PSYLO/DUKE/JUDY (non- BOOST) 00.4318.045.000 FORK DUST WIPER UPGRADE KIT - 30MM BLACK FLANGED LOW FRICTION SEALS (INCLUDES DUST WIPERS, 5MM & 10MM FOAM RINGS) - XC30/30GOLD/30SILVER/PARAGON/PSYLO/DUKE/JUDY (non- BOOST) 00.4318.045.000
bulk 11.4018.028.007 FORK DUST WIPER KIT - 30MM BLACK (INCLUDES FLANGED DUST WIPERS) (QTY 20) - XC30/30 GOLD/30 SILVER/PARAGON 11.4018.028.007
bulk 11.4018.028.008 FORK FOAM RING KIT - 30MM X 5MM (QTY 20) - XC30/30 GOLD/30 SILVER 11.4018.028.008
12 Sram FORK HOSE CLAMP - PIKE/LYRIK/YARI/SID/REVELATION/BOXXER/XC30/30G/30S/RECON/SEKTOR/BLUTO/REBA/35G/35S 11.4015.534.010 FORK HOSE CLAMP - PIKE/LYRIK/YARI/SID/REVELATION/BOXXER/XC30/30G/30S/RECON/SEKTOR/BLUTO/REBA/35G/35S 11.4015.534.010
ns 11.4118.107.000 SCHRADER AIR CAP - (INCLUDES CAP AND O-RING) - ROCKSHOX UNIVERSAL AIR CAP FOR FORKS AND SHOCKS 11.4118.107.000
ns Sram HIGH-PRESSURE FORK/SHOCK PUMP (300 PSI MAX) ROCKSHOX 00.4315.023.010 HIGH-PRESSURE FORK/SHOCK PUMP (300 PSI MAX) ROCKSHOX 00.4315.023.010
ns Sram REAR SHOCK SCHRADER VALVE REMOVAL TOOL ROCKSHOX 00.4315.022.010 REAR SHOCK SCHRADER VALVE REMOVAL TOOL ROCKSHOX 00.4315.022.010
ns Sram ROCKSHOX SUSPENSION OIL, 5WT, 1 LITER BOTTLE - FORK DAMPER 11.4015.354.010 ROCKSHOX SUSPENSION OIL, 5WT, 1 LITER BOTTLE - FORK DAMPER 11.4015.354.010
ns Sram ROCKSHOX SUSPENSION OIL, 15WT, 120ML BOTTLE - LOWER LEGS 11.4315.021.040 ROCKSHOX SUSPENSION OIL, 15WT, 120ML BOTTLE - LOWER LEGS 11.4315.021.040
ns Sram ROCKSHOX SUSPENSION OIL, 15WT, 1 LITER BOTTLE - LOWER LEGS 11.4015.354.030 ROCKSHOX SUSPENSION OIL, 15WT, 1 LITER BOTTLE - LOWER LEGS 11.4015.354.030
ns Sram GREASE SRAM BUTTER 20ML SYRINGE, FRICTION REDUCING GREASE BYSLICKOLEUM - DOUBLE TIME HUB PAWLS, FORKS & REVERB SERVICE 00.4318.008.000 GREASE SRAM BUTTER 20ML SYRINGE, FRICTION REDUCING GREASE BYSLICKOLEUM - DOUBLE TIME HUB PAWLS, FORKS & REVERB SERVICE 00.4318.008.000
ns Sram GREASE SRAM BUTTER 1OZ CONTAINER, FRICTION REDUCING GREASE BY SLICKOLEUM - DOUBLE TIME HUB PAWLS, FORKS & REVERB SERVICE00.4318.008.001 GREASE SRAM BUTTER 1OZ CONTAINER, FRICTION REDUCING GREASE BY SLICKOLEUM - DOUBLE TIME HUB PAWLS, FORKS & REVERB SERVICE 00.4318.008.001
