Sram EAGLE TRANSMISSION POWERTRAIN & RANGE EXTENDER (ETP)

EAGLE TRANSMISSION POWERTRAIN & RANGE EXTENDER (ETP) Sram

BT-ETP-RE-A1, BT-ETP-REH-A1

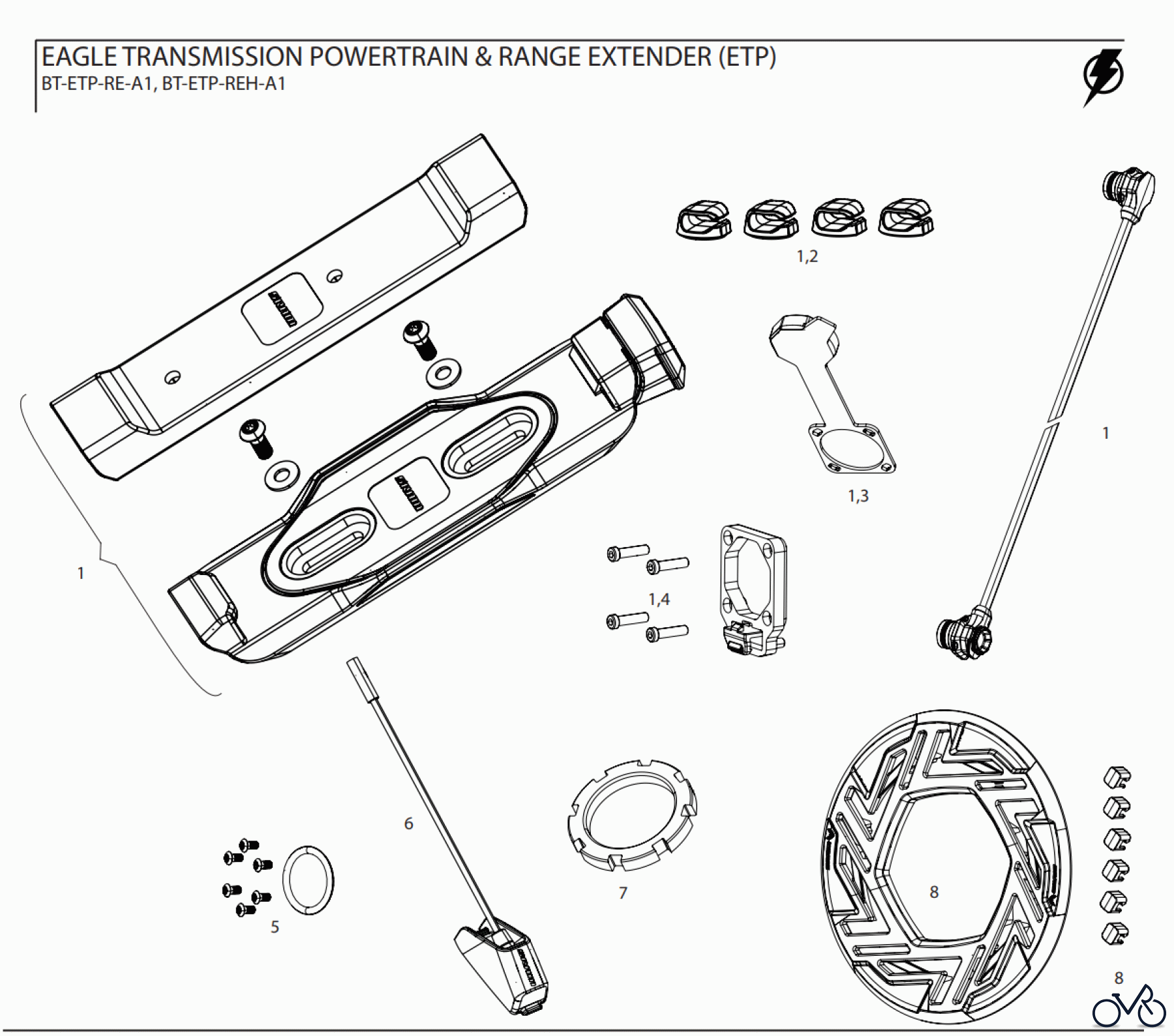

Here you will find the spare parts drawing for Sram Sram EAGLE TRANSMISSION POWERTRAIN & RANGE EXTENDER (ETP). Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

Pos	Article Number	Description
1	11.3018.025.002	AM RANGE EXTENDER HOLDER SYSTEM AND CABLE W/CONNECTOR 320MM (EAGLE TRANSMISSION POWERTRAIN) 11.3018.025.002
1	11.3018.025.003	AM RANGE EXTENDER HOLDER SYSTEM AND CABLE W/CONNECTOR 185MM (EAGLE TRANSMISSION POWERTRAIN) 11.3018.025.003
1	11.3018.025.004	AM RANGE EXTENDER HOLDER SYSTEM AND CABLE W/CONNECTOR 140MM (EAGLE TRANSMISSION POWERTRAIN) 11.3018.025.004
2	11.3018.035.000	AM RANGE EXTENDER CABLE CLIPS QTY4 11.3018.035.000
3	11.3018.036.000	AM BT ETP RANGE EXTENDER DUST COVER (QTY1) 11.3018.036.000
4	11.3018.031.000	AM BT ETP RANGE EXTENDER SNAPFRAME (INCLUDING 4 M3 BLACK BOLTS) 11.3018.031.000
5	11.3018.027.000	SPEED RING MOUNTING KIT (BOLTS+ORING) 11.3018.027.000
6	11.3018.028.000	EP CABLE EXTENSION CORD 780MM EAGLE TRANSMISSION POWERTRAIN 11.3018.028.000
6	11.3018.028.001	EP CABLE EXTENSION CORD 955MM EAGLE TRANSMISSION POWERTRAIN 11.3018.028.001
7	11.6218.056.000	CHAINRING LOCK RING ISIS DRIVE UNIT FOR EAGLE TRANSMISSION POWERTRAIN 11.6218.056.000
8	11.6218.053.001	PEDAL ASSIST T-TYPE CHAINRING CLIP ON GUARD UNISIZE 38T/36T/34T (EMTB) INCLUDING 6 SAFETY CLIPS FOR ETP 11.6218.053.001
ns	00.3018.356.000	EP BATTERY CHARGER 4A EU EAGLE TRANSMISSION POWERTRAIN 00.3018.356.000
ns	00.3018.356.004	EP EU PLUG FOR BATTERY CHARGER EAGLE TRANSMISSION POWERTRAIN 00.3018.356.004
ns	00.3018.356.005	EP UK PLUG FOR BATTERY CHARGER EAGLE TRANSMISSION POWERTRAIN 00.3018.356.005
ns	00.3018.356.006	EP US PLUG FOR BATTERY CHARGER EAGLE TRANSMISSION POWERTRAIN 00.3018.356.006
ns	00.3018.356.007	EP AUS/NZ PLUG FOR BATTERY CHARGER EAGLE TRANSMISSION POWERTRAIN 00.3018.356.007
ns	00.3018.356.008	EP SPLIT Y CABLE CHARGER EAGLE TRANSMISSION POWERTRAIN 1000MM (FOR CHARGING BATTERY AND RANGE EXTENDER SIMULTANEOUSLY) 00.3018.356.008
ns	00.3018.383.002	AM Eagle Powertrain Software and Diagnostic Tool (for dealers and service only) - Complete set including adapter cable, usb connector and dongle 00.3018.383.002
ns	11.3018.019.000	EP COVER KIT FOR CHARGE PORT (INCLUDING 4 BOLTS) FOR EAGLE TRANSMISSION POWERTRAIN 11.3018.019.000
ns	11.3018.023.002	C-SHAPE MOUNTING SYSTEM BATTERY SIDE BRACKET NON-CONNECTOR MOUNTING KIT 11.3018.023.002
