Sram MAVEN BRONZE - HYDRAULIC DISC BRAKE - LEVERS A1 (2025+)

MAVEN BRONZE - HYDRAULIC DISC BRAKE - LEVERS A1 (2025+) Sram

DB-MVN-BRZ-A1

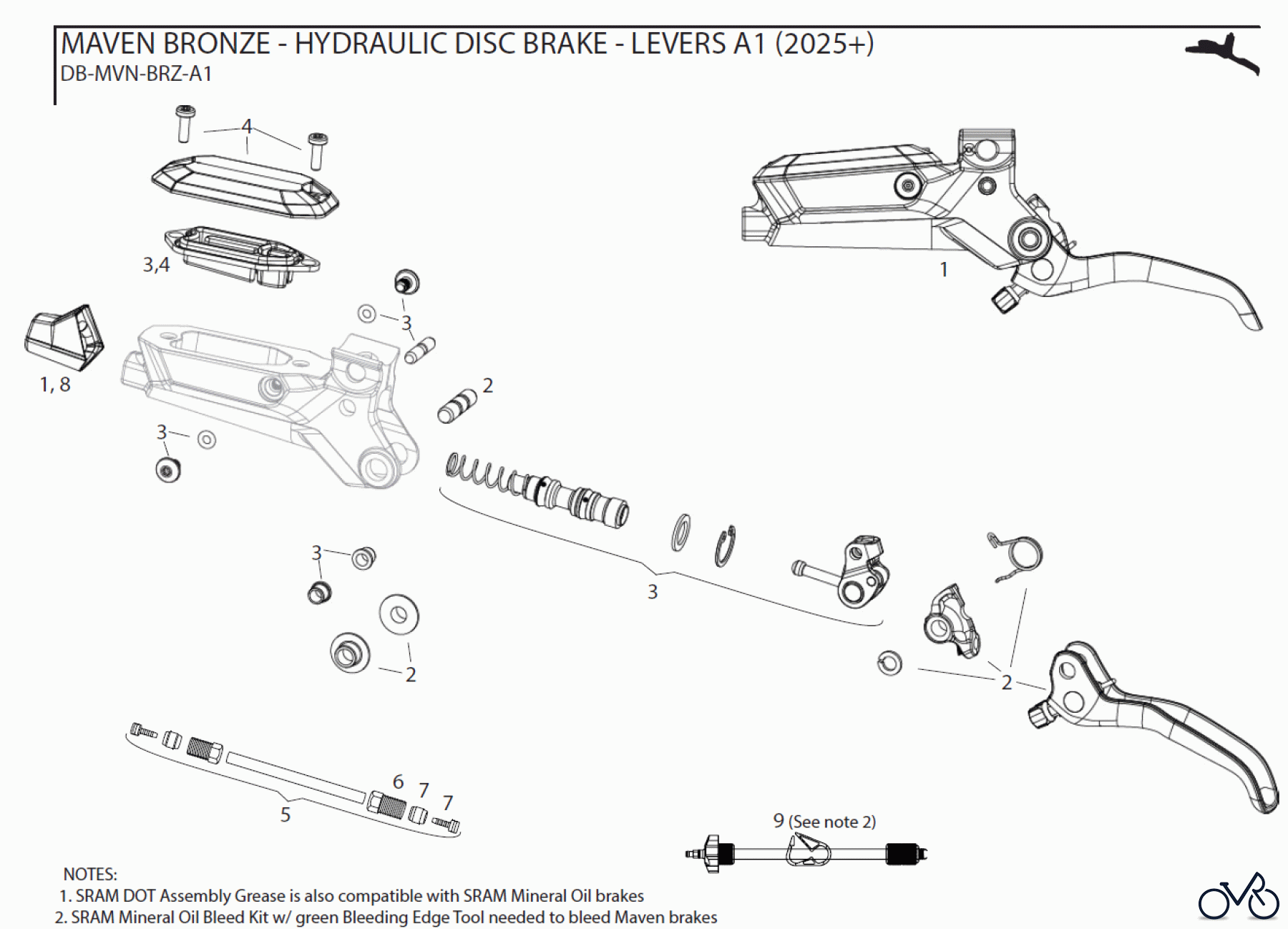

Here you will find the spare parts drawing for Sram Sram MAVEN BRONZE - HYDRAULIC DISC BRAKE - LEVERS A1 (2025+). Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

Pos	Article Number	Description
1	11.5018.052.022	DISC BRAKE LEVER ASSEMBLY - ALUMINUM LEVER (ASSEMBLED, NO HOSE, INCLUDES BARB,OLIVE,BOOT) DARK POLAR ANO - MAVEN BRONZE A1 11.5018.052.022
2	11.5018.053.012	DISC BRAKE LEVER BLADE KIT -ALUMINUM LEVER BLACK (INCLUDES BLADE, REACH KNOB, CAM, BUSHINGS) - MAVEN BRONZE A1 11.5018.053.012
3	11.5018.054.006	DISC BRAKE LEVER INTERNALS/SERVICE KIT - (INCLUDES PISTON ASSEMBLY, BLADDER & SPRING) - MAVEN BRONZE A1 11.5018.054.006
4	11.5018.055.004	DISC BRAKE LEVER RESERVOIR CAP KIT - (INCLUDES RESERVOIR CAP, BLADDER & HARDWARE) - MAVEN ULTIMATE/SILVER/BRONZE A1 HYDRAULIC LINES & FITTINGS 11.5018.055.004
5	00.5318.036.000	DISC BRAKE HYDRAULIC HOSE KIT-DOUBLECOMPRESSION 2000MMBLK-CODER,ELIXIR1/3,JUICY3,DB 1/3,LEVEL 2P ULT/SLV/TLM/TL/T/4PBZR(B1+), GUIDERE,G2RE/RS/R,DB8,RED,Force,Rival(2P)eTapAXS, MAVEN BRZ (A1), MAVEN BRZ (A1) 00.5318.036.000
6	11.5309.766.000	DISC BRAKE COMPRESSION HOSE NUT - (QTY 5) 11.5309.766.000
7	11.5378.803.004	DISC BRAKE HOSE FITTING KIT - (INCLUDES 1 THREADED HOSE BARB, 1 RED COMP FITTING) - AVID & SRAM BRAKES 11.5378.803.004
8	11.5018.068.002	DISC BRAKE LEVER HOSE BOOT- QTY 2 - MAVEN ULTIMATE/SILVER/BRONZE A1 11.5018.068.002
ns	11.5018.069.000	CABLE GUIDE CLIPS STEM INTEGRATED QTY 10 - STEALTH BRAKE LINES 11.5018.069.000
ns	11.5018.069.001	CABLE GUIDE CLIPS ADHESIVE MOUNT QTY 10 - STEALTH BRAKE LINES 11.5018.069.001
ns	00.5315.018.052	MatchMaker X, Pair, Black, Stainless T25 Black Bolts (compatible with SRAM MMX-compatible shifters) - Code, G2, Guide, Level, Elixir, DB, Maven 00.5315.018.052
ns	00.5315.018.053	MatchMaker X, Single Left, Black, Stainless T25 Black Bolts (compatible with SRAM MMX-compatible shifters) - Code, G2, Guide, Level, Elixir, DB, Maven 00.5315.018.053
ns	00.5315.018.054	MatchMaker X, Single Right, Black, Stainless T25 Black Bolts (compatible with SRAM MMX-compatible shifters) - Code, G2, Guide, Level, Elixir, DB, Maven 00.5315.018.054
ns	00.5318.015.000	LEVER INTERNALS ASSEMBLY TOOL (FOR SETTING PUSHROD DISTANCE AND INSTALLING INTERNALS) -GUIDE ULT/RSC,CODE RSC/ULT/SLV, MAVEN ULT/SLV 00.5318.015.000
ns	00.5318.031.004	Pro Mineral Oil Bleed Kit (includes 2 Premium Syringes, M4 fittings, bleed blocks, Torx tool, crowfoot, Bleeding Edge Fitting, Maxima Mineral Oil) - DB8, Maven 00.5318.031.004
ns	00.5318.031.005	Pro Mineral Oil Bleed Kit (includes 2 Premium Syringes,M4 fittings, bleed blocks, Torx tool, crowfoot, Bleeding Edge Fitting) - DB8, Maven 00.5318.031.005
ns	00.5318.031.006	Standard Mineral Oil Bleed Kit (includes 2 Standard Syringes, M4 fittings, bleed blocks, Torx tool, crowfoot, Bleeding Edge Fitting, Maxima Mineral Oil) - DB8, Maven 00.5318.031.006
ns	00.5318.031.007	Standard Mineral Oil Bleed Kit (includes 2 Standard Syringes, M4 fittings, bleed blocks, Torx tool, crowfoot, Bleeding Edge Fitting) - DB8, Maven 00.5318.031.007
9	00.5318.031.008	BLEEDING EDGE FITTING (WORKS WITH V1 AND STANDARD V2 MINERAL BRAKE BLEED KITS) - MINERAL BRAKES WITH BLEEDING EDGE CALIPER FITTING,MAVEN 00.5318.031.008
