Sram RED AXS XPLR 46T - REAR DERAILLEUR

RED AXS XPLR 46T - REAR DERAILLEUR Sram

RD-RED-1E-E1

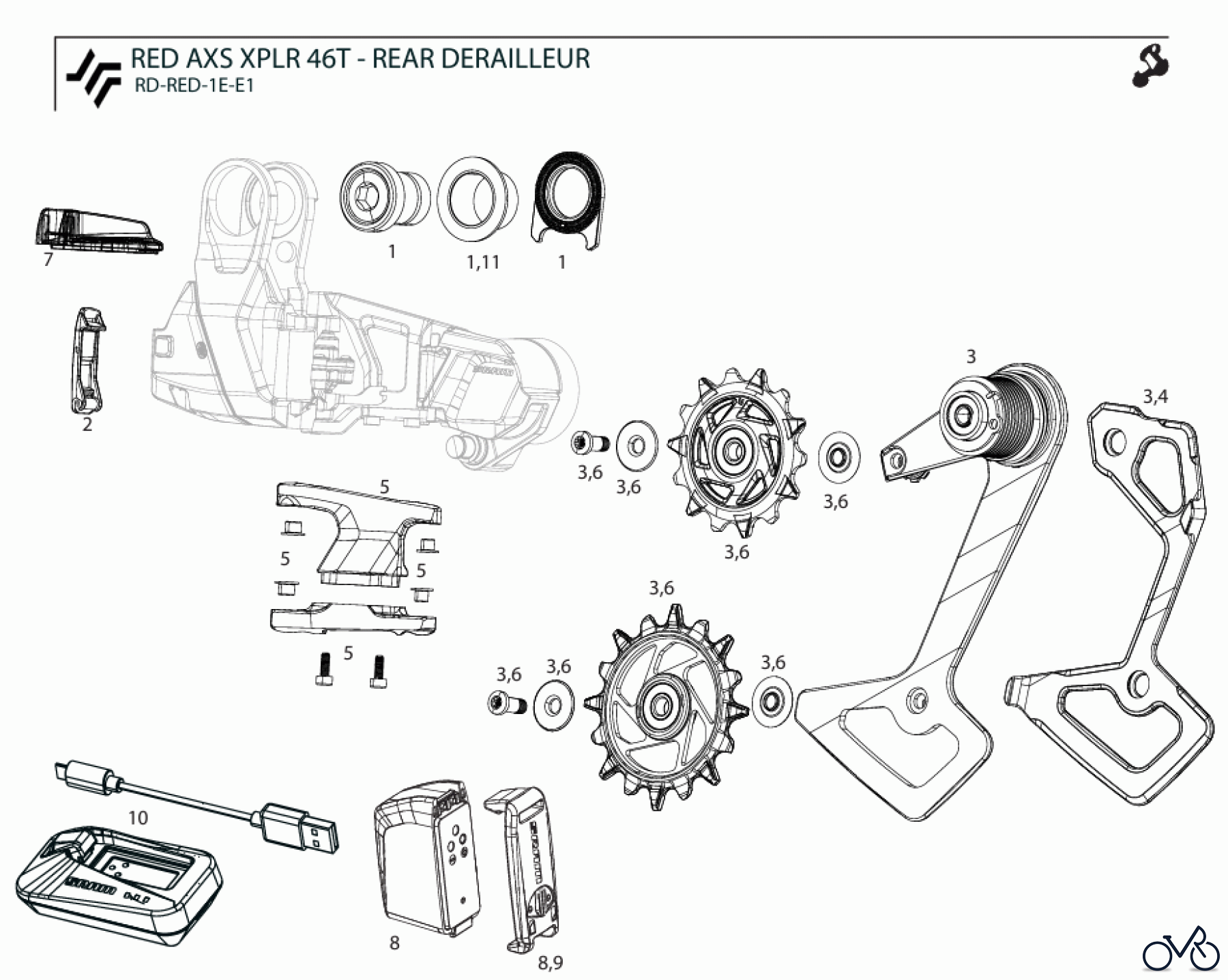

Here you will find the spare parts drawing for Sram Sram RED AXS XPLR 46T - REAR DERAILLEUR. Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

Pos	Article Number	Description
1	11.7518.110.000	REAR DERAILLEUR FULL MOUNT BOLT KIT RED XPLR AXS (B-WASHER, FRAME SLEEVE, B-BOLT) 11.7518.110.000
2	11.7518.104.018	REAR DERAILLEUR BATTERY LEVER/CLIP GX T-TYPE EAGLE AXS AND RED XPLR AXS 11.7518.104.018
3	11.7518.110.001	REAR DERAILLEUR CAGE ASSEMBLY KIT RED XPLR AXS (FULL REPLACEMENT CAGE ASSEMBLY INCLUDING OUTER AND INNER CAGES, DAMPER AND 11.7518.110.001
4	11.7518.110.002	REAR DERAILLEUR CARBON INNER CAGE RED XPLR AXS E1 INCLUDING ALUMINIUM SCREWS 11.7518.110.002
5	11.7518.110.003	REAR DERAILLEUR OUTER LINK KIT RED XPLR AXS (UPPER AND LOWER OUTER LINK WITH BUSHINGS INCLUDING BOLTS) 11.7518.110.003
6	11.7518.104.006	REAR DERAILLEUR PULLEY KIT XXSL T-TYPE EAGLE AXS AND RED XPLR E1 (INCLUDES 14T UPPER AND 16T LOWER SILVER METAL SPIDER PULLEY, 2 T25 ALUMINUM PULLEY BOLTS) 11.7518.104.006
7	11.7618.008.000	BATTERY BLOCK FOR ETAP/AXS FRONT & REAR DERAILLEUR AND EAGLE AXS RD, REVERB AXS 11.7618.008.000
8	00.3018.102.000	SRAM ETAP/AXS BATTERY 00.3018.102.000
9	11.7618.006.000	ETAP BATTERY TERMINAL COVER FRONT/REAR DERAILLEUR/REVERB AXS 11.7618.006.000
10	00.3018.117.000	SRAM ETAP/AXS BATTERY CHARGER AND CORD 00.3018.117.000
11	11.7518.104.022	REAR DERAILLEUR FRAME SLEEVE B-BOLT QTY2 (FOR ALL TRANSMISSION T-TYPE AND RED XPLR E1 REAR DERAILLEURS) 11.7518.104.022
