Sram 858 NSW WH-858-NTLD-B1

858 NSW WH-858-NTLD-B1 Zipp

Sram Zipp 858 NSW WH-858-NTLD-B1

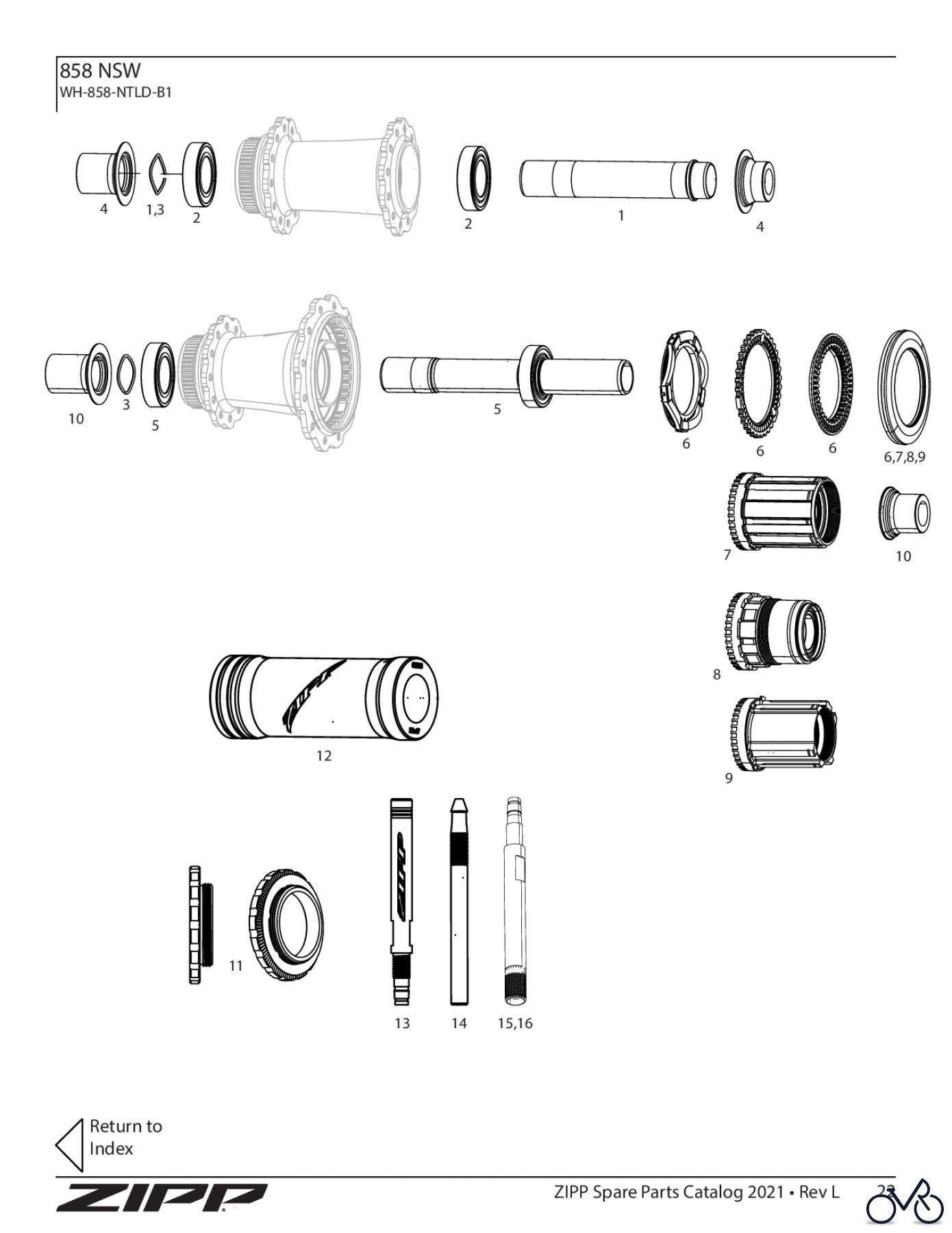

Here you will find the spare parts drawing for Sram Zipp 858 NSW WH-858-NTLD-B1. Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

PosArticle NumberDescription
NO. PART NUMBER DESCRIPTION PART
1 11.2018.065.002 HUB AXLE - FRONT - ZIPP COGNITION V2 DISC BRAKE (AXLE AND WAVE SPRING) 11.2018.065.002
2 11.2018.052.002 WHEEL HUB BEARINGS COGNITION DISC BRAKE NSW (FRONT OR REAR, 1 PAIR) 11.2018.052.002
3 11.2018.032.003 WHEEL WAVE SPRING ZIPP COGNITION NSW AXLE 11.2018.032.003
4 11.2018.049.000 WHEEL AXLE END CAP SET FRONT ZIPP COGNITION CENTER LOCKING DISC BRAKE THRU AXLE 12X100 11.2018.049.000
ns 11.2018.050.000 WHEEL AXLE END CAP SET FRONT ZIPP COGNITION CENTER LOCKING DISC BRAKE THRU AXLE 15X100 11.2018.050.000
ns 11.2018.048.000 WHEEL AXLE END CAP SET FRONT ZIPP COGNITION CENTER LOCKING DISC BRAKE QUICK RELEASE 11.2018.048.000
5 11.2018.065.004 HUB AXLE - REAR - ZIPP COGNITION V2 DISC BRAKE NSW WITH BEARINGS (2X 61903) 11.2018.065.004
6 11.2018.065.006 HUB COGNITION V2 AXIAL CLUTCH KIT DISC BRAKE / RIM BRAKE (INCLUDES RATCHET SHELL AND DRIVER, 11.2018.065.006
SYLOMER SPRING ASSEMBLY AND SEAL CAP) SPRING
7 11.2018.065.000 HUB FREEHUB KIT COGNITION V2 NSW DISC BRAKE / RIM BRAKE 11-SPEED SRAM 11.2018.065.000
8 11.2018.065.001 HUB FREEHUB KIT COGNITION V2 NSW DISC BRAKE / RIM BRAKE XDR 11.2018.065.001
9 11.2018.065.009 HUB FREEHUB KIT COGNITION V2 NSW DISC BRAKE / RIM BRAKE CAMPAGNOLO 11.2018.065.009
10 11.2018.065.007 HUB AXLE END CAP SET REAR ZIPP COGNITION V2 DISC BRAKE / RIM BRAKE COMPATIBLE WITH XDR AND 11-SPD 11.2018.065.007
ns 11.2018.049.040 WHEEL AXLE END CAP SET REAR ZIPP COGNITION CENTER LOCKING DISC BRAKE THRU AXLE 12X142 CAMPY 11.2018.049.040
ns 11.1918.072.003 SPOKES & NIPPLES & WASHERS 3-PACK 226MM CX-RAY J-BEND EXTERNAL BLACK 11.1918.072.003
ns 11.1918.072.004 SPOKES & NIPPLES & WASHERS 3-PACK 230MM CX-RAY J-BEND EXTERNAL BLACK 11.1918.072.004
ns 11.1918.072.005 SPOKES & NIPPLES & WASHERS 3-PACK 232MM CX-RAY J-BEND EXTERNAL BLACK 11.1918.072.005
Tools & Accessories &
11 11.2018.063.002 HUB CENTERLOCK ROTOR DISC LOCKRING BLACK ZIPP LOGO (FOR ROTORS UP TO 160MM) QTY 1 11.2018.063.002
12 00.1918.177.060 Bearing Press Tool 61903, Zipp Cognition Disc Brake Rear, ZR1, ZM2 00.1918.177.060
13 00.1915.130.090 Zipp Valve Extension Black 72mm for Zipp 808 (use with threaded presta valve) 00.1915.130.090
14 00.1918.259.006 Zipp Tangente Aluminum Knurled Valve Extender Kit 808 65mm (Qty 3) and Valve Extender Wrench (Qty 2) 00.1918.259.006
(use with Removable Presta Valve, recommended for use with Zipp Tangente Tube) with
15 00.1918.259.010 Zipp Tangente Aluminum Knurled Valve Extender 808 65mm (Qty 1) (use with Removable Presta Valve, 00.1918.259.010
recommended for use with Zipp Tangente Tube) for
16 11.1918.085.002 ZIPP TANGENTE ALUMINUM KNURLED VALVE EXTENDER KIT 808 65MM (QTY 2) AND WRENCH (QTY 2) 11.1918.085.002
(USE WITH REMOVABLE PRESTA VALVE, RECOMMENDED FOR USE WITH ZIPP TANGENTE TUBE) WITH
ns 11.1918.084.003 TUBELESS KIT INCLUDES 10 METER OF 23MM TAPE, 2 UNIVERSAL VALVES 100MM & 1 VALVE CORE WRENCH (FITS 858,808 NSW) 11.1918.084.003
