Sram XX1 / X01 EAGLE AXS REAR DERAILLEUR

XX1 / X01 EAGLE AXS REAR DERAILLEUR Sram

RD-XX-1E-A1 / RD-X0-1E-A1

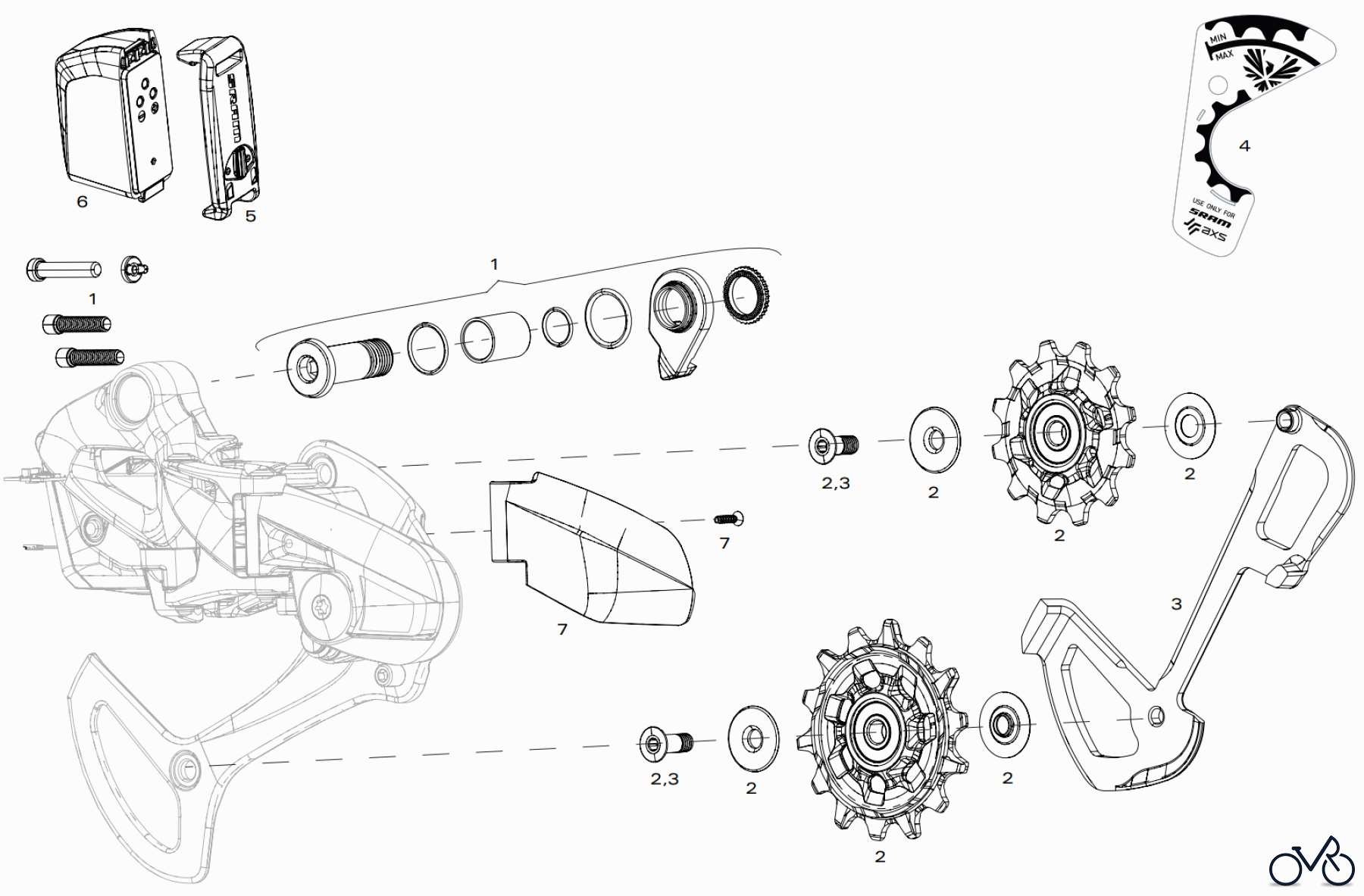

Here you will find the spare parts drawing for Sram Sram XX1 / X01 EAGLE AXS REAR DERAILLEUR. Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

Pos	Article Number	Description
1	11.7518.092.000	REAR DERAILLEUR BOLT AND SCREW KIT XX1 EAGLE AXS (B-BOLT/WASHER, B-SCREW AND LIMIT SCREWS) 11.7518.092.000
1	11.7518.092.001	REAR DERAILLEUR BOLT AND SCREW KIT X01 EAGLE AXS (B-BOLT/WASHER, B-SCREW AND LIMIT SCREWS) 11.7518.092.001
2	00.7518.103.000	XX1/X01 EAGLE REAR DERAILLEUR PULLEYS X-SYNC 00.7518.103.000
3	11.7518.092.002	REAR DERAILLEUR INNER CAGE XX1 EAGLE AXS LUNAR INCLUDING SCREWS 11.7518.092.002
3	11.7518.092.003	REAR DERAILLEUR INNER CAGE X01 EAGLE AXS POLAR INCLUDING SCREWS 11.7518.092.003
4	11.7518.095.000	REAR DERAILLEUR CHAINGAP ADJUSTMENT GAUGE EAGLE AXS 11.7518.095.000
5	11.7618.006.000	ETAP BATTERY TERMINAL COVER FRONT/REAR DERAILLEUR/REVERB AXS QTY 1 11.7618.006.000
6	00.3018.102.000	SRAM ETAP/AXS BATTERY QTY 1 00.3018.102.000
7	11.7518.097.000	REAR DERAILLEUR COVER KIT CLUTCH INCLUDING SCREW XX1 EAGLE 11.7518.097.000
7	11.7518.097.001	REAR DERAILLEUR COVER KIT CLUTCH INCLUDING SCREW X01 EAGLE 11.7518.097.001
ns	00.3018.117.000	SRAM ETAP BATTERY CHARGER AND CORD 00.3018.117.000
