Sram DB 5 - HYDRAULIC DISC BRAKE - CALIPERS

DB 5 - HYDRAULIC DISC BRAKE - CALIPERS Sram

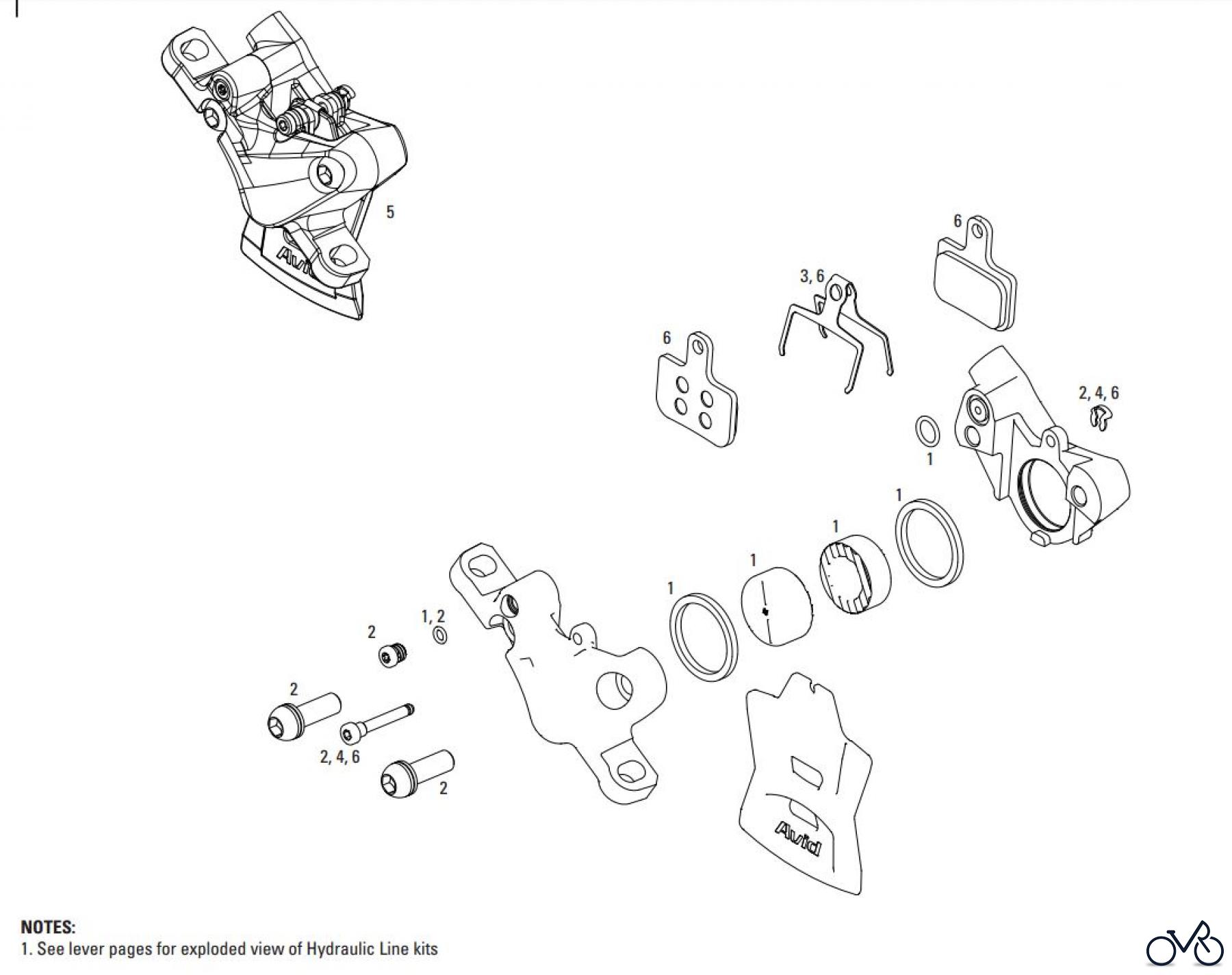

Here you will find the spare parts drawing for Sram Sram DB 5 - HYDRAULIC DISC BRAKE - CALIPERS. Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

Pos	Article Number	Description
01	11.5018.020.000	Caliper Piston Kit (includes 2-21mm caliper pistons, seals & orings) - DB5 11.5018.020.000
02	11.5018.021.000	Caliper Hardware Kit (includes body bolts, bleed screw, pad pin) - DB5 11.5018.021.000
03	11.5015.035.000	Elixir/DB Pad Spreader Kit, Qty 2 11.5015.035.000
04	11.5015.036.000	Pad Pin Kit, Black Qty 2 - Elixir 11.5015.036.000
05	11.5018.008.018	Caliper Assembly Standard (non-CPS) Black (assembled, no hose) - DB5 11.5018.008.018
05	11.5018.008.019	Caliper Assembly Standard (non-CPS) White (assembled, no hose) - DB5 11.5018.008.019
06	00.5315.035.010	Disc Brake Pads Metal Scintered/Steel- Elixir/DB (1 set) 00.5315.035.010
06	00.5315.035.020	Disc Brake Pads Organic/Alum- Elixir/DB (1 set) 00.5315.035.020
06	00.5315.035.030	Disc Brake Pads Organic/Steel- Elixir/DB (1 set) 00.5315.035.030
ns	00.5016.168.130	Hydraulic Line Kit - GUIDE R/RS/RSC, DB5, 2000mm, Stainless, Black, Qty 1 00.5016.168.130
ns	00.5016.168.140	Hydraulic Line Kit - GUIDE R/RS/RSC, DB5, 2000mm, 2000mm, Stainless, White, Qty 1 00.5016.168.140
ns	11.5309.765.000	Hydraulic Disc Brake Hose Fitting Kit, Qty 1 (threaded hose barb, comp fitting, comp nut) 11.5309.765.000
ns	11.5309.766.000	Hydraulic Disc Brake Compression Hose Nut, Qty 5 11.5309.766.000
ns	11.5311.555.000	Hydraulic Disc Brake Compression Hose Fitting, Qty 10 11.5311.555.000
ns	11.5311.556.000	Hydraulic Disc Brake Hose Barb, Threaded, Qty 10 11.5311.556.000
