Sram DB5 - HYDRAULIC DISC BRAKE - LEVERS

DB5 - HYDRAULIC DISC BRAKE - LEVERS Sram

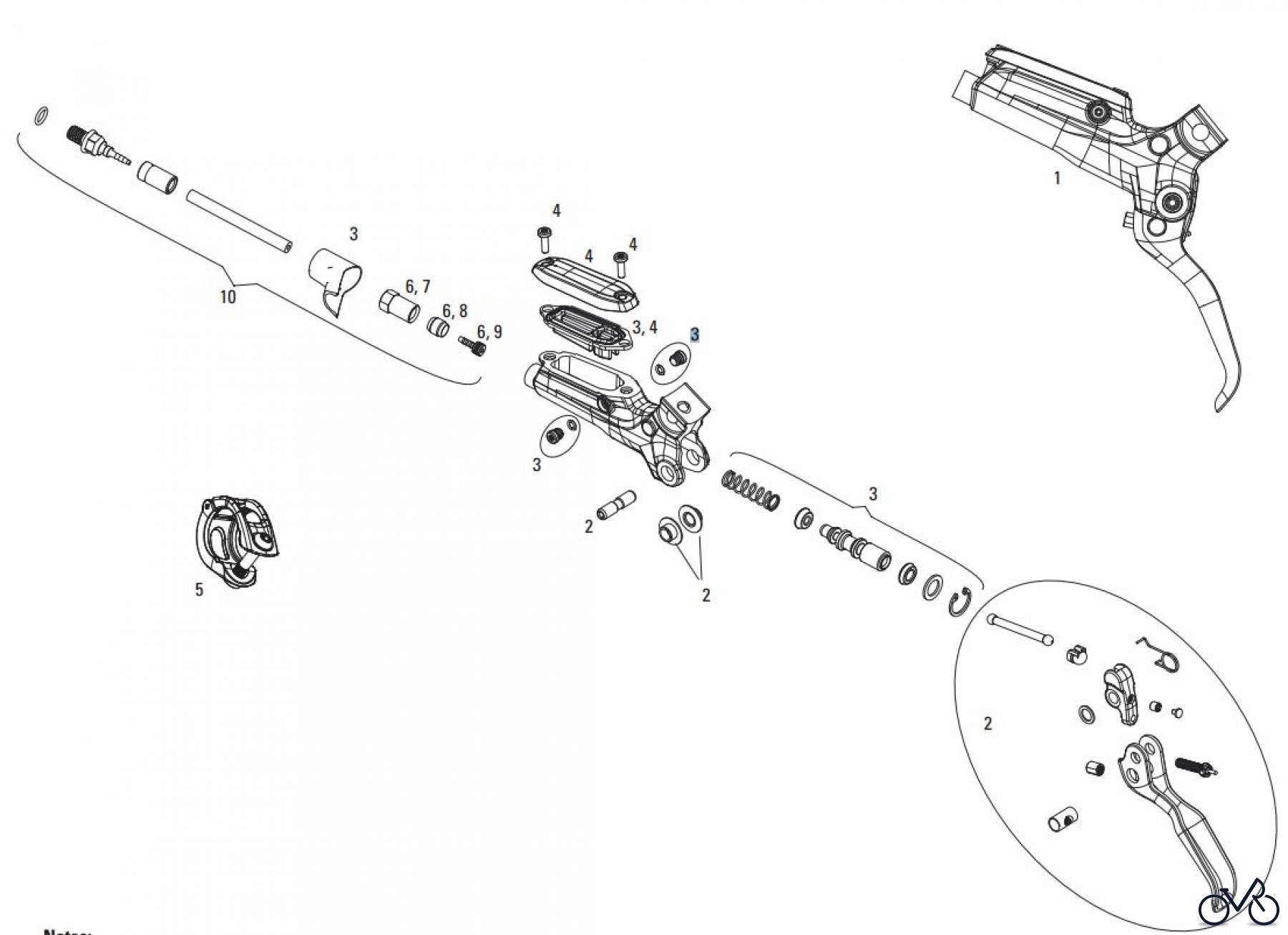

Here you will find the spare parts drawing for Sram Sram DB5 - HYDRAULIC DISC BRAKE - LEVERS. Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

Pos	Article Number	Description
01	11.5018.004.022	Lever Assembly, Aluminum lever, Hinged Clamp/MMX compatible, Black (assembled, no hose) - DB5 11.5018.004.022
01	11.5018.004.023	Lever Assembly, Aluminum lever, Hinged Clamp/MMX compatible, White (assembled, no hose) - DB5 11.5018.004.023
02	11.5018.003.008	Lever Blade Aluminum Black (includes cam guide) - Guide R/DB5 Qty 1 11.5018.003.008
03	11.5018.005.003	Lever Internals Guide R/DB5 Qty 1 11.5018.005.003
04	11.5018.022.000	Reservoir Cap Kit (includes reservoir cap, bladder and hardware) - Guide R/RS/RSC/DB5 11.5018.022.000
05	11.5315.048.050	MMX Clamp, Silver, Lever (Stainless Steel Bolt T25) - Guide DB5 Elixir 9/7/CR Mag/X0/ XX, Qty 1 11.5315.048.050
05	11.5315.048.060	MMX Clamp, Silver, Lever (Ti Bolt T25) - Guide DB5 Elixir 9/7/CR Mag/X0/ XX, Qty 1 11.5315.048.060
05	11.5315.048.070	MMX Clamp, Black, Lever (Stainless Steel Bolt T25) - Guide DB5 Elixir 9/7/CR Mag/X0/ XX, Qty 1 11.5315.048.070
05	11.5315.048.080	MMX Clamp, Black, Lever (Ti Bolt T25) - Guide DB5 Elixir 9/7/CR Mag/X0/ XX, Qty 1 11.5315.048.080
06	11.5309.765.000	Hydraulic Disc Brake Hose Fitting Kit, Qty 1 (threaded hose barb, comp fitting, comp nut) 11.5309.765.000
07	11.5309.766.000	Hydraulic Disc Brake Compression Hose Nut, Qty 5 11.5309.766.000
08	11.5311.555.000	Hydraulic Disc Brake Compression Hose Fitting, Qty 10 11.5311.555.000
09	11.5311.556.000	Hydraulic Disc Brake Hose Barb, Threaded, Qty 10 11.5311.556.000
10	00.5016.168.130	Hydraulic Line Kit - GUIDE R/RS/RSC, DB5, 2000mm, Stainless, Black, Qty 1 00.5016.168.130
10	00.5016.168.140	Hydraulic Line Kit - GUIDE R/RS/RSC, DB5, 2000mm, 2000mm, Stainless, White, Qty 1 00.5016.168.140
