Sram XX (2010-2011) / XX WORLD CUP (2011-2014) - HYDRAULIC DISC BRAKE - LEVERS

XX (2010-2011) / XX WORLD CUP (2011-2014) - HYDRAULIC DISC BRAKE - LEVERS Sram

Sram Sram XX (2010-2011) / XX WORLD CUP (2011-2014) - HYDRAULIC DISC BRAKE - LEVERS

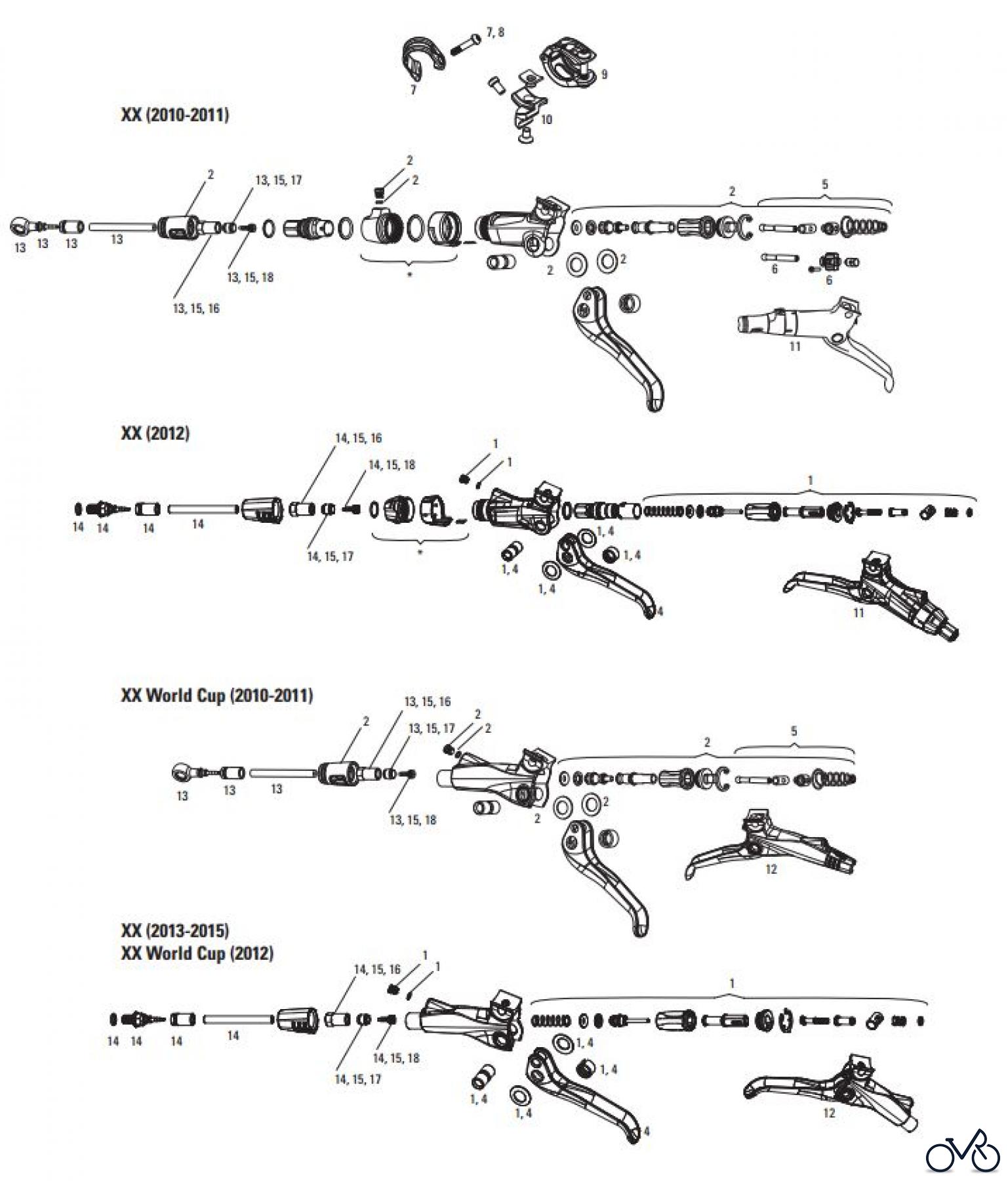

Here you will find the spare parts drawing for Sram Sram XX (2010-2011) / XX WORLD CUP (2011-2014) - HYDRAULIC DISC BRAKE - LEVERS. Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

PosArticle NumberDescription
01 Sram Lever Internals/Service kit Carbon Qty 1 - 2012-2015 XX/2012 XXWC/2013-2015 X0 GS 11.5015.064.070Lever Internals/Service kit Carbon Qty 1 - 2012-2015 XX/2012 XXWC/2013-2015 X0 GS 11.5015.064.070
02 Sram Lever Internals/Service Kit - XX 2010-2011/X0 2011-2012/X0 MY12 (Produced after August 2011) Qty 111.5015.064.080Lever Internals/Service Kit - XX 2010-2011/X0 2011-2012/X0 MY12 (Produced after August 2011) Qty 1 11.5015.064.080
04 11.5018.003.006Lever Blade XX Carbon Black Qty 1 2012-2015 11.5018.003.006
05 11.5015.057.000Lever Pushrod/Cross Dowel/Return Spring - Elixir CR Mag/X0 Carbon/XX 11.5015.057.000
06 11.5015.061.010Lever External Reach Adjuster Knob/Pushrod Kit - Elixir CR Mag/XX 11.5015.061.010
07 Sram Discrete Bar Clamp, Black, Lever (Stainless Steel Bolt T25) Elixir 9/7/CR Mag/X0/ XX, Qty 111.5315.048.010Discrete Bar Clamp, Black, Lever (Stainless Steel Bolt T25) Elixir 9/7/CR Mag/X0/ XX, Qty 1 11.5315.048.010
07 11.5315.048.020Discrete Bar Clamp, Silver, Lever (Ti Bolt T25) - Elixir 9/7/CR Mag/X0/ XX, Qty 1 11.5315.048.020
08 11.5315.048.030Bolt, Bar Clamp Lever (Stainless Steel T25) - Elixir 9/7/CR Mag/X0/ XX, Qty 2 11.5315.048.030
08 11.5315.048.040Bolt, Bar Clamp Lever (Ti T25) - Elixir 9/7/CR Mag/X0/ XX, Qty 2 11.5315.048.040
09 Sram MMX Clamp, Silver, Lever (Stainless Steel Bolt T25) - Guide DB5 Elixir 9/7/CR Mag/X0/ XX, Qty 111.5315.048.050MMX Clamp, Silver, Lever (Stainless Steel Bolt T25) - Guide DB5 Elixir 9/7/CR Mag/X0/ XX, Qty 1 11.5315.048.050
09 11.5315.048.060MMX Clamp, Silver, Lever (Ti Bolt T25) - Guide DB5 Elixir 9/7/CR Mag/X0/ XX, Qty 1 11.5315.048.060
09 Sram MMX Clamp, Black, Lever (Stainless Steel Bolt T25) - Guide DB5 Elixir 9/7/CR Mag/X0/ XX, Qty 111.5315.048.070MMX Clamp, Black, Lever (Stainless Steel Bolt T25) - Guide DB5 Elixir 9/7/CR Mag/X0/ XX, Qty 1 11.5315.048.070
09 Sram MMX Clamp, Black, Lever (Ti Bolt T25) - Guide DB5 Elixir 9/7/CR Mag/X0/ XX, Qty 111.5315.048.080MMX Clamp, Black, Lever (Ti Bolt T25) - Guide DB5 Elixir 9/7/CR Mag/X0/ XX, Qty 1 11.5315.048.080
10 Sram MMX/Shifter Mounting Bracket, Left - Elixir CR Mag/X0/XX, Stainless Hardware11.5315.049.010MMX/Shifter Mounting Bracket, Left - Elixir CR Mag/X0/XX, Stainless Hardware 11.5315.049.010
10 Sram MMX/Shifter Mounting Bracket, Right - Elixir CR Mag/X0/XX, Stainless Hardware11.5315.049.020MMX/Shifter Mounting Bracket, Right - Elixir CR Mag/X0/XX, Stainless Hardware 11.5315.049.020
12 11.5018.004.021Carbon Lever Assy XX Carbon (tooled reach adjust), Hinged Clamp/MMX compatible, Obsidian Black 2013-2014 11.5018.004.021
13 00.5016.168.030Hydraulic Line Kit - XX, Juicy Ultimate, Juicy 7, Juicy 5, 2000mm, Aluminum Banjo, Black, Qty 1 00.5016.168.030
13 00.5016.168.040Hydraulic Line Kit - XX, Juicy Ultimate, Juicy 7, Juicy 5, 2000mm, Aluminum Banjo, White, Qty 1 00.5016.168.040
14 00.5016.168.050Hydraulic Line Kit - Elixir 5, Elixir 7, Elixir 9, Elixir R,Elixir CR, Elixir X0, Elixir CR Mag, 2000mm, Stainless, Black, Qty 1 00.5016.168.050
14 00.5016.168.060Hydraulic Line Kit - Elixir 5, Elixir 7, Elixir 9, Elixir R,Elixir CR, Elixir X0, Elixir CR Mag, 2000mm, Stainless, White, Qty 1 00.5016.168.060
15 11.5309.765.000Hydraulic Disc Brake Hose Fitting Kit, Qty 1 (threaded hose barb, comp fitting, comp nut) 11.5309.765.000
16 Sram Hydraulic Disc Brake Compression Hose Nut, Qty 511.5309.766.000Hydraulic Disc Brake Compression Hose Nut, Qty 5 11.5309.766.000
17 11.5311.555.000Hydraulic Disc Brake Compression Hose Fitting, Qty 10 11.5311.555.000
18 11.5311.556.000Hydraulic Disc Brake Hose Barb, Threaded, Qty 10 11.5311.556.000
ns 11.5315.050.010Elixir Lever Pivot Bearing Press Tool (required for 2010 Elixir CR Mag and XX) 11.5315.050.010
ns Sram SRAM Tool Bleeding Edge (works with Avid Pro Bleed Kits) - S4 Caliper, Guide Ultimate00.5318.015.001SRAM Tool Bleeding Edge (works with Avid Pro Bleed Kits) - S4 Caliper, Guide Ultimate 00.5318.015.001
ns Sram Standard Brake Bleed Kit (includes 2 syringes/fittings, bleed blocks, Torx tool, Crow’s foot, Bleeding Edge Fitting, DOT 5.1 hydraulic fluid) - SRAM X0, XX, Guide, HydroR00.5318.016.000Standard Brake Bleed Kit (includes 2 syringes/fittings, bleed blocks, Torx tool, Crow’s foot, Bleeding Edge Fitting, DOT 5.1 hydraulic fluid) - SRAM X0, XX, Guide, HydroR 00.5318.016.000
ns 00.5318.016.001Standard Brake Bleed Kit (includes 2 syringes/fittings, bleed blocks, Torx tool, Crow’s foot, Bleeding Edge Fitting) - SRAM X0, XX, Guide, HydroR 00.5318.016.001
ns Sram DOT 5.1 Hydraulic Brake Fluid 4oz(120ml) - SRAM00.5318.017.000DOT 5.1 Hydraulic Brake Fluid 4oz(120ml) - SRAM 00.5318.017.000
ns Sram SRAM Guide Spare Parts Tacklebox - Disc Brake11.5018.035.000SRAM Guide Spare Parts Tacklebox - Disc Brake 11.5018.035.000
