Sram GUIDE R - HYDRAULIC DISC BRAKE - LEVERS

GUIDE R - HYDRAULIC DISC BRAKE - LEVERS Sram

Sram Sram GUIDE R - HYDRAULIC DISC BRAKE - LEVERS

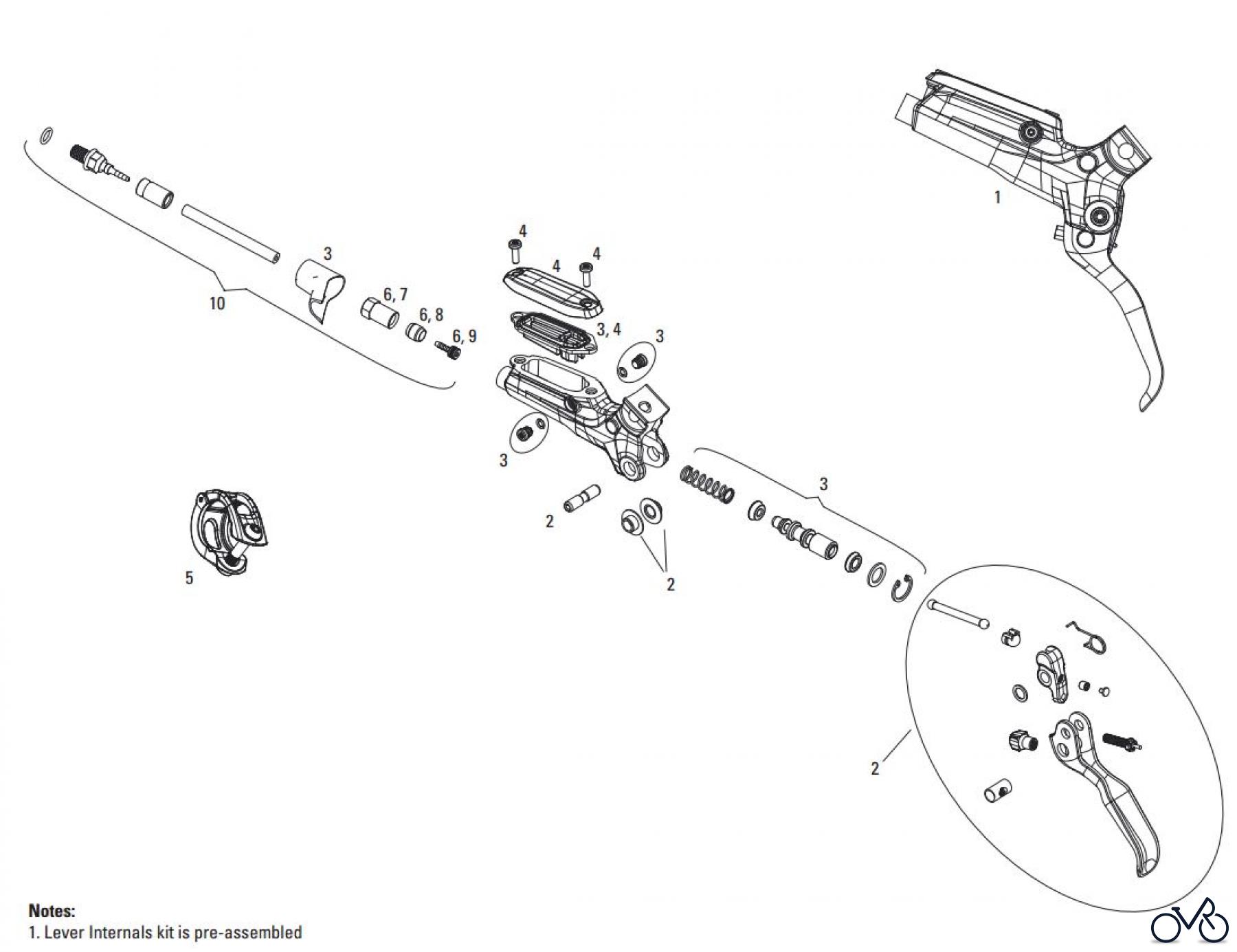

Here you will find the spare parts drawing for Sram Sram GUIDE R - HYDRAULIC DISC BRAKE - LEVERS. Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

PosArticle NumberDescription
01 11.5018.004.024Lever Assembly, Aluminum lever, Hinged Clamp/MMX compatible, Black (assembled, no hose) - Guide R 11.5018.004.024
01 11.5018.004.025Lever Assembly, Aluminum lever, Hinged Clamp/MMX compatible, Grey (assembled, no hose) - Guide R 11.5018.004.025
02 11.5018.003.008Lever Blade Aluminum Black (includes cam guide) - Guide R/DB5 Qty 1 11.5018.003.008
03 11.5018.005.003Lever Internals Guide R/DB5 Qty 1 11.5018.005.003
04 11.5018.022.000Reservoir Cap Kit (includes reservoir cap, bladder and hardware) - Guide R/RS/RSC/DB5 11.5018.022.000
05 Sram MMX Clamp, Silver, Lever (Stainless Steel Bolt T25) - Guide DB5 Elixir 9/7/CR Mag/X0/ XX, Qty 111.5315.048.050MMX Clamp, Silver, Lever (Stainless Steel Bolt T25) - Guide DB5 Elixir 9/7/CR Mag/X0/ XX, Qty 1 11.5315.048.050
05 11.5315.048.060MMX Clamp, Silver, Lever (Ti Bolt T25) - Guide DB5 Elixir 9/7/CR Mag/X0/ XX, Qty 1 11.5315.048.060
05 Sram MMX Clamp, Black, Lever (Stainless Steel Bolt T25) - Guide DB5 Elixir 9/7/CR Mag/X0/ XX, Qty 111.5315.048.070MMX Clamp, Black, Lever (Stainless Steel Bolt T25) - Guide DB5 Elixir 9/7/CR Mag/X0/ XX, Qty 1 11.5315.048.070
05 Sram MMX Clamp, Black, Lever (Ti Bolt T25) - Guide DB5 Elixir 9/7/CR Mag/X0/ XX, Qty 111.5315.048.080MMX Clamp, Black, Lever (Ti Bolt T25) - Guide DB5 Elixir 9/7/CR Mag/X0/ XX, Qty 1 11.5315.048.080
06 11.5309.765.000Hydraulic Disc Brake Hose Fitting Kit, Qty 1 (threaded hose barb, comp fitting, comp nut) 11.5309.765.000
07 Sram Hydraulic Disc Brake Compression Hose Nut, Qty 511.5309.766.000Hydraulic Disc Brake Compression Hose Nut, Qty 5 11.5309.766.000
08 11.5311.555.000Hydraulic Disc Brake Compression Hose Fitting, Qty 10 11.5311.555.000
09 11.5311.556.000Hydraulic Disc Brake Hose Barb, Threaded, Qty 10 11.5311.556.000
10 Sram Hydraulic Line Kit - GUIDE R/RS/RSC, DB5, 2000mm, Stainless, Black, Qty 100.5016.168.130Hydraulic Line Kit - GUIDE R/RS/RSC, DB5, 2000mm, Stainless, Black, Qty 1 00.5016.168.130
10 Sram Hydraulic Line Kit - GUIDE R/RS/RSC, DB5, 2000mm, 2000mm, Stainless, White, Qty 100.5016.168.140Hydraulic Line Kit - GUIDE R/RS/RSC, DB5, 2000mm, 2000mm, Stainless, White, Qty 1 00.5016.168.140
ns Sram SRAM Tool Bleeding Edge (works with Avid Pro Bleed Kits) - S4 Caliper, Guide Ultimate00.5318.015.001SRAM Tool Bleeding Edge (works with Avid Pro Bleed Kits) - S4 Caliper, Guide Ultimate 00.5318.015.001
ns Sram Standard Brake Bleed Kit (includes 2 syringes/fittings, bleed blocks, Torx tool, Crow’s foot, Bleeding Edge Fitting, DOT 5.1 hydraulic fluid) - SRAM X0, XX, Guide, HydroR00.5318.016.000Standard Brake Bleed Kit (includes 2 syringes/fittings, bleed blocks, Torx tool, Crow’s foot, Bleeding Edge Fitting, DOT 5.1 hydraulic fluid) - SRAM X0, XX, Guide, HydroR 00.5318.016.000
ns 00.5318.016.001Standard Brake Bleed Kit (includes 2 syringes/fittings, bleed blocks, Torx tool, Crow’s foot, Bleeding Edge Fitting) - SRAM X0, XX, Guide, HydroR 00.5318.016.001
ns Sram DOT 5.1 Hydraulic Brake Fluid 4oz(120ml) - SRAM00.5318.017.000DOT 5.1 Hydraulic Brake Fluid 4oz(120ml) - SRAM 00.5318.017.000
ns Sram SRAM Guide Spare Parts Tacklebox - Disc Brake11.5018.035.000SRAM Guide Spare Parts Tacklebox - Disc Brake 11.5018.035.000
