Sram GUIDE RSC - HYDRAULIC DISC BRAKE - LEVERS

GUIDE RSC - HYDRAULIC DISC BRAKE - LEVERS Sram

Sram Sram GUIDE RSC - HYDRAULIC DISC BRAKE - LEVERS

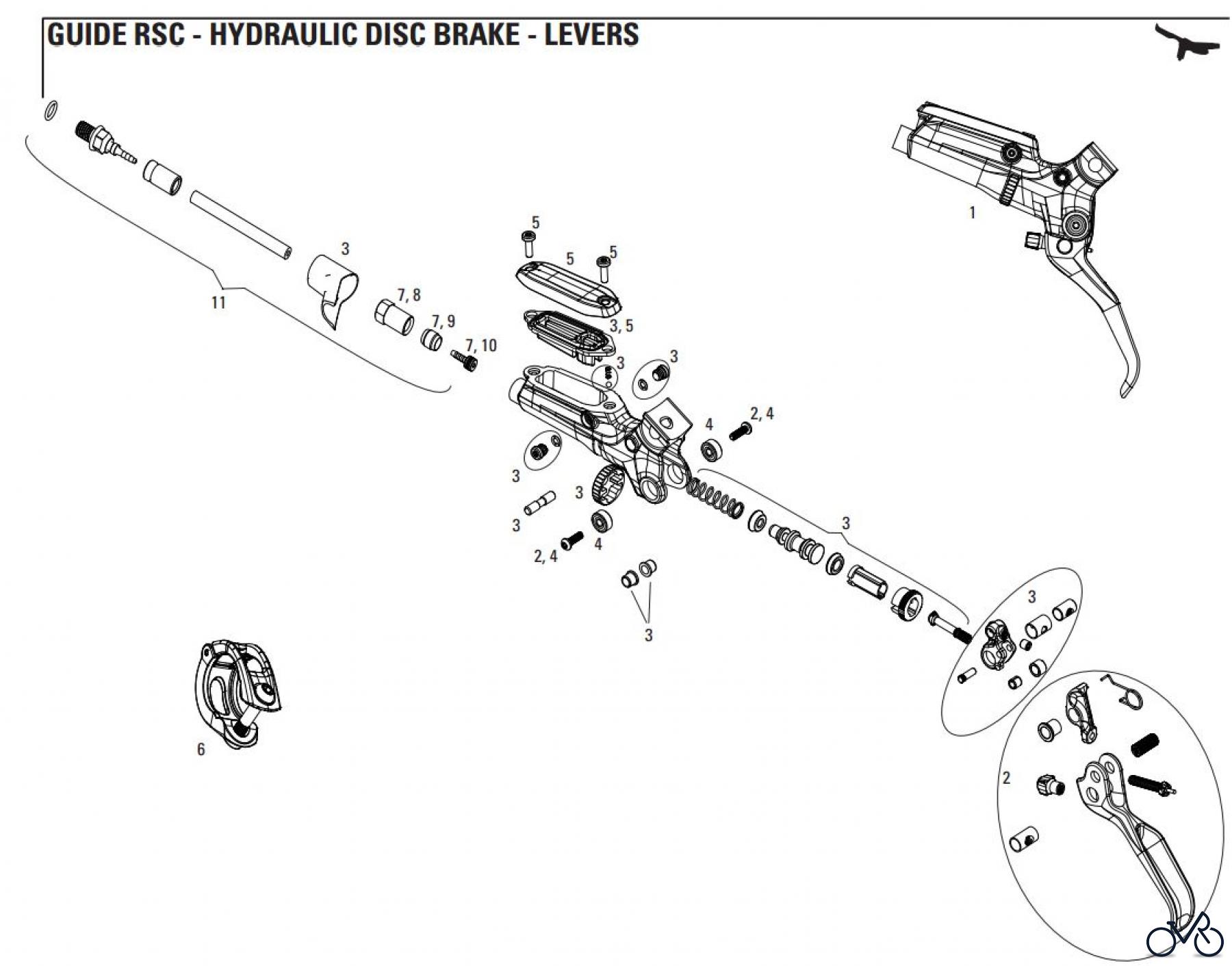

Here you will find the spare parts drawing for Sram Sram GUIDE RSC - HYDRAULIC DISC BRAKE - LEVERS. Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

PosArticle NumberDescription
01 11.5018.004.028Lever Assembly, Aluminum lever, Hinged Clamp/MMX compatible, Black Ano (assembled, no hose) - Guide RSC 11.5018.004.028
01 11.5018.004.029Lever Assembly, Aluminum lever, Hinged Clamp/MMX compatible, Silver Ano (assembled, no hose) - Guide RSC 11.5018.004.029
02 11.5018.003.010Lever Blade Aluminum Black - (includes cam guide) Guide RSC Qty 1 11.5018.003.010
03 11.5018.005.005Lever Internals Guide RSC Qty 1 11.5018.005.005
04 Sram Lever Bearing Kit (includes two 1/8x3/8x5/32 bearings and hardware) - Guide RSC/X0 Trail11.5018.023.000Lever Bearing Kit (includes two 1/8x3/8x5/32 bearings and hardware) - Guide RSC/X0 Trail 11.5018.023.000
05 11.5018.022.000Reservoir Cap Kit (includes reservoir cap, bladder and hardware) - Guide R/RS/RSC/DB5 11.5018.022.000
06 Sram MMX Clamp, Silver, Lever (Stainless Steel Bolt T25) - Guide DB5 Elixir 9/7/CR Mag/X0/ XX, Qty 111.5315.048.050MMX Clamp, Silver, Lever (Stainless Steel Bolt T25) - Guide DB5 Elixir 9/7/CR Mag/X0/ XX, Qty 1 11.5315.048.050
06 11.5315.048.060MMX Clamp, Silver, Lever (Ti Bolt T25) - Guide DB5 Elixir 9/7/CR Mag/X0/ XX, Qty 1 11.5315.048.060
06 Sram MMX Clamp, Black, Lever (Stainless Steel Bolt T25) - Guide DB5 Elixir 9/7/CR Mag/X0/ XX, Qty 111.5315.048.070MMX Clamp, Black, Lever (Stainless Steel Bolt T25) - Guide DB5 Elixir 9/7/CR Mag/X0/ XX, Qty 1 11.5315.048.070
06 Sram MMX Clamp, Black, Lever (Ti Bolt T25) - Guide DB5 Elixir 9/7/CR Mag/X0/ XX, Qty 111.5315.048.080MMX Clamp, Black, Lever (Ti Bolt T25) - Guide DB5 Elixir 9/7/CR Mag/X0/ XX, Qty 1 11.5315.048.080
07 11.5309.765.000Hydraulic Disc Brake Hose Fitting Kit, Qty 1 (threaded hose barb, comp fitting, comp nut) 11.5309.765.000
08 Sram Hydraulic Disc Brake Compression Hose Nut, Qty 511.5309.766.000Hydraulic Disc Brake Compression Hose Nut, Qty 5 11.5309.766.000
09 11.5311.555.000Hydraulic Disc Brake Compression Hose Fitting, Qty 10 11.5311.555.000
10 11.5311.556.000Hydraulic Disc Brake Hose Barb, Threaded, Qty 10 11.5311.556.000
11 Sram Hydraulic Line Kit - GUIDE R/RS/RSC, DB5, 2000mm, Stainless, Black, Qty 100.5016.168.130Hydraulic Line Kit - GUIDE R/RS/RSC, DB5, 2000mm, Stainless, Black, Qty 1 00.5016.168.130
11 Sram Hydraulic Line Kit - GUIDE R/RS/RSC, DB5, 2000mm, 2000mm, Stainless, White, Qty 100.5016.168.140Hydraulic Line Kit - GUIDE R/RS/RSC, DB5, 2000mm, 2000mm, Stainless, White, Qty 1 00.5016.168.140
