Sram HYDRAULIC DISC BRAKE - CALIPERS DB 3 - HYDRAULIC DISC BRAKE - CALIPERS

DB 3 - HYDRAULIC DISC BRAKE - CALIPERS HYDRAULIC DISC BRAKE - CALIPERS

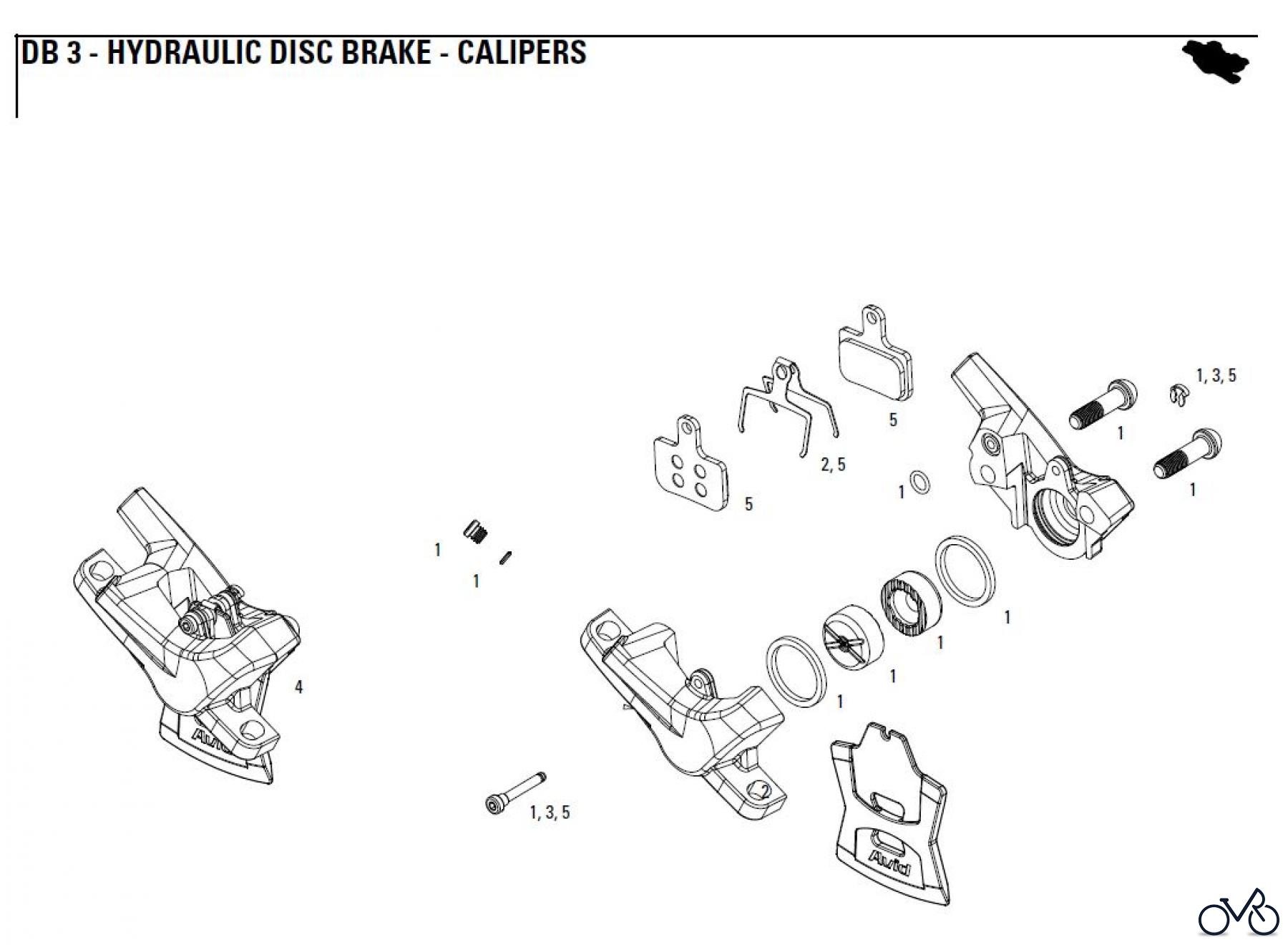

Here you will find the spare parts drawing for Sram avid HYDRAULIC DISC BRAKE - CALIPERS DB 3 - HYDRAULIC DISC BRAKE - CALIPERS. Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

Pos	Article Number	Description
1	115.018.007.005	Caliper Parts Kit Elixir DB 3 (includes all small parts) A1 115.018.007.005
2	115.015.035.000	Elixir Pad Spreader Kit, Qty 2 115.015.035.000
3	115.015.036.000	Pad Pin Kit, Black Qty 2 - Elixir 115.015.036.000
4	115.018.008.016	Caliper Assembly Standard (non-CPS) Black (assembled, no hose) - DB3 115.018.008.016
4	115.018.008.017	Caliper Assembly Standard (non-CPS) White (assembled, no hose) - DB3 115.018.008.017
5	00.5315.035.010	Disc Brake Pads Metal Scintered/Steel, Elixir (1 set) 00.5315.035.010
5	00.5315.035.020	Disc Brake Pads Organic/Alum, Elixir (1 set) 00.5315.035.020
5	00.5315.035.030	Disc Brake Pads Organic/Steel, Elixir (1 set) 00.5315.035.030
ns	00.5016.168.010	Hydraulic Line Kit - Code, Code R, Elixir 3, Elixir 1, Juicy 3, DB 3/1, 2000mm, Black, Qty 1 00.5016.168.010
ns	00.5016.168.020	Hydraulic Line Kit - Code, Code R, Elixir 3, Elixir 1, Juicy 3, DB 3/1, 2000mm, White, Qty 1 00.5016.168.020
ns	115.309.765.000	Hydraulic Disc Brake Hose Fitting Kit, Qty 1 (threaded hose barb, comp fitting, comp nut) 115.309.765.000
ns	115.309.766.000	Hydraulic Disc Brake Compression Hose Nut, Qty 5 115.309.766.000
ns	115.311.555.000	Hydraulic Disc Brake Compression Hose Fitting, Qty 10 115.311.555.000
ns	115.311.556.000	Hydraulic Disc Brake Hose Barb, Threaded, Qty 10 115.311.556.000
