Sram HYDRAULIC DISC BRAKE - LEVERS XX (2010-2013) / XX WORLD CUP (2011-2012) - HYDRAULIC DISC BRAKE - LEVERS

XX (2010-2013) / XX WORLD CUP (2011-2012) - HYDRAULIC DISC BRAKE - LEVERS HYDRAULIC DISC BRAKE - LEVERS

Sram avid HYDRAULIC DISC BRAKE - LEVERS XX (2010-2013) / XX WORLD CUP (2011-2012) - HYDRAULIC DISC BRAKE - LEVERS

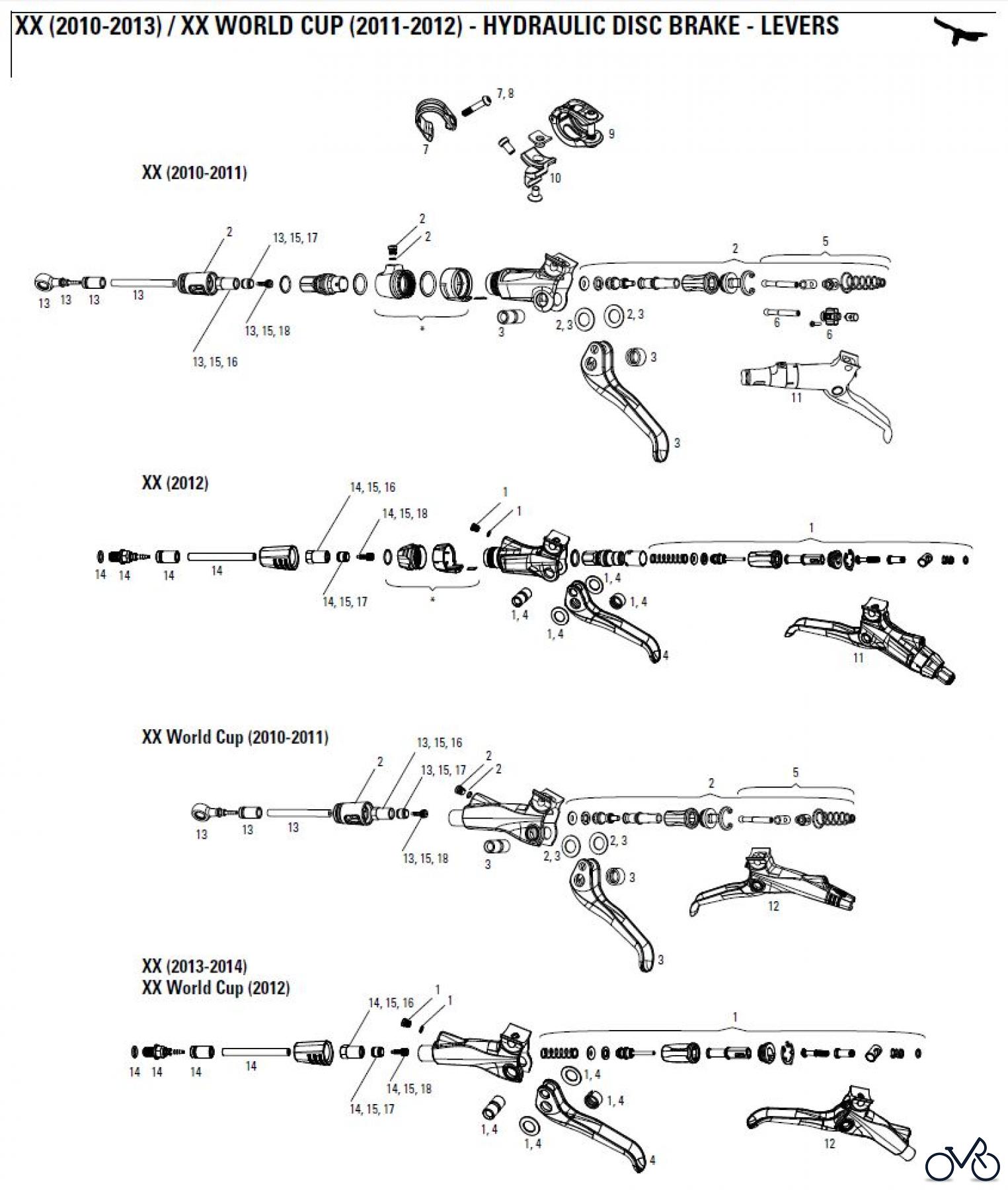

Here you will find the spare parts drawing for Sram avid HYDRAULIC DISC BRAKE - LEVERS XX (2010-2013) / XX WORLD CUP (2011-2012) - HYDRAULIC DISC BRAKE - LEVERS. Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

PosArticle NumberDescription
1 115.015.064.070Lever Internals / Service kit Carbon Qty 1 - 2012-2014 XX/ XXWC, 2013-2014 X0GS 115.015.064.070
2 115.015.064.080Lever Internals / Service Kit - XX 2010-2011, X0 2011-2012, X0 MY12 (Produced after August 2011) Qty 1 115.015.064.080
3 115.015.021.040Lever Blade, Carbon - XX 2010-2011 115.015.021.040
4 115.015.021.1702012 XX - Lever Blade, Carbon 115.015.021.170
4 115.018.003.006Lever Blade XX Carbon Black Qty 1 2013-2014 115.018.003.006
5 115.015.057.000Lever Pushrod/Cross Dowel/Return Spring - Elixir CR Mag/X0 Carbon/XX 115.015.057.000
6 115.015.061.010Lever External Reach Adjuster Knob/Pushrod Kit - Elixir CR Mag/XX 115.015.061.010
7 115.315.048.010Discrete Bar Clamp, Black, Lever (Stainless Steel Bolt T25) Elixir 9/7/CR Mag/X0/ XX, Qty 1 115.315.048.010
7 115.315.048.020Discrete Bar Clamp, Silver, Lever (Ti Bolt T25) - Elixir 9/7/CR Mag/X0/ XX, Qty 1 115.315.048.020
8 115.315.048.030Bolt, Bar Clamp Lever (Stainless Steel T25) - Elixir 9/7/CR Mag/X0/ XX, Qty 2 115.315.048.030
8 115.315.048.040Bolt, Bar Clamp Lever (Ti T25) - Elixir 9/7/CR Mag/X0/ XX, Qty 2 115.315.048.040
9 115.315.048.050MMX Clamp, Silver, Lever (Stainless Steel Bolt T25) - Elixir 9/7/CR Mag/X0/ XX, Qty 1 115.315.048.050
9 115.315.048.060MMX Clamp, Silver, Lever (Ti Bolt T25) - Elixir 9/7/CR Mag/X0/ XX, Qty 1 115.315.048.060
9 115.315.048.070MMX Clamp, Black, Lever (Stainless Steel Bolt T25) - Elixir 9/7/CR Mag/X0/ XX, Qty 1 115.315.048.070
9 115.315.048.080MMX Clamp, Black, Lever (Ti Bolt T25) - Elixir 9/7/CR Mag/X0/ XX, Qty 1 115.315.048.080
10 115.315.049.010MMX/Shifter Mounting Bracket, Left - Elixir CR Mag/X0/XX, Stainless Hardware 115.315.049.010
10 115.315.049.020MMX/Shifter Mounting Bracket, Right - Elixir CR Mag/X0/XX, Stainless Hardware 115.315.049.020
11 115.015.030.490Lever Assy, Carbon Lever (complete, no hose) - 2012 XX 115.015.030.490
12 115.018.004.021Carbon Lever Assy XX Carbon (tooled reach adjust), Hinged Clamp/MMX compatible, Obsidian Black 2013-2014 115.018.004.021
13 00.5016.168.030Hydraulic Line Kit - XX, Juicy Ultimate, Juicy 7, Juicy 5, 2000mm, Aluminum Banjo, Black, Qty 1 00.5016.168.030
13 00.5016.168.040Hydraulic Line Kit - XX, Juicy Ultimate, Juicy 7, Juicy 5, 2000mm, Aluminum Banjo, White, Qty 1 00.5016.168.040
14 00.5016.168.050Hydraulic Line Kit - Elixir 5, Elixir 7, Elixir 9, Elixir R, Elixir CR, Elixir X0, Elixir CR Mag, 2000mm, Stainless, Black, Qty 1 00.5016.168.050
14 00.5016.168.060Hydraulic Line Kit - Elixir 5, Elixir 7, Elixir 9, Elixir R, Elixir CR, Elixir X0, Elixir CR Mag, 2000mm, Stainless, White, Qty 1 00.5016.168.060
15 115.309.765.000Hydraulic Disc Brake Hose Fitting Kit, Qty 1 (threaded hose barb, comp fitting, comp nut) 115.309.765.000
16 115.309.766.000Hydraulic Disc Brake Compression Hose Nut, Qty 5 115.309.766.000
17 115.311.555.000Hydraulic Disc Brake Compression Hose Fitting, Qty 10 115.311.555.000
18 115.311.556.000Hydraulic Disc Brake Hose Barb, Threaded, Qty 10 115.311.556.000
n 115.315.050.010Elixir Lever Pivot Bearing Press Tool (required for 2010 Elixir CR Mag and XX 115.315.050.010
