Sram HYDRAULIC DISC BRAKE - LEVERS DB 3 - HYDRAULIC DISC BRAKE - LEVERS

DB 3 - HYDRAULIC DISC BRAKE - LEVERS HYDRAULIC DISC BRAKE - LEVERS

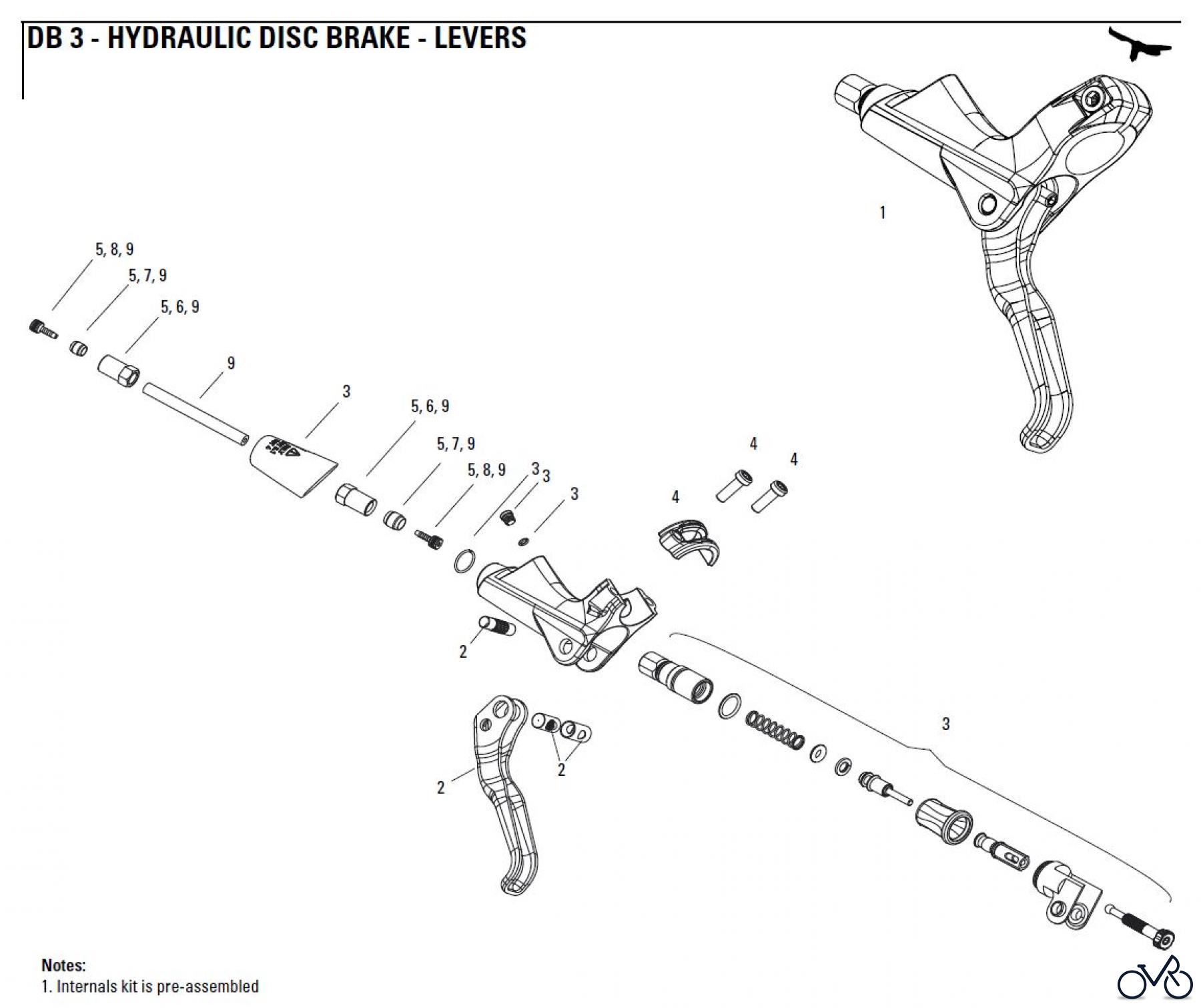

Here you will find the spare parts drawing for Sram avid HYDRAULIC DISC BRAKE - LEVERS DB 3 - HYDRAULIC DISC BRAKE - LEVERS. Select the required bicycle spare part from the spare parts list for your Sram bicycle and simply order online. We always have many Sram spare parts in stock for you.

Pos	Article Number	Description
01	11.5015.030.610	Lever Assembly, Aluminum lever, Black (assembled, no hose) - DB3 11.5015.030.610
01	11.5015.030.630	Lever Assembly, Aluminum lever, White (assembled, no hose) - DB3 11.5015.030.630
02	11.5018.003.007	Lever Blade Aluminum Black - DB1/DB3 Qty 1 A1 11.5018.003.007
03	11.5018.005.002	Lever Internals DB1/DB3 Qty 1 A1 11.5018.005.002
04	11.5015.029.030	Lever Split Clamp Kit, Black - Elixir 5/3, DB 3/1 Qty 1 (Steel Hardware) 11.5015.029.030
05	11.5309.765.000	Hydraulic Disc Brake Hose Fitting Kit, Qty 1 (threaded hose barb, comp fitting, comp nut) 11.5309.765.000
06	11.5309.766.000	Hydraulic Disc Brake Compression Hose Nut, Qty 5 11.5309.766.000
07	11.5311.555.000	Hydraulic Disc Brake Compression Hose Fitting, Qty 10 11.5311.555.000
08	11.5311.556.000	Hydraulic Disc Brake Hose Barb, Threaded, Qty 10 11.5311.556.000
09	00.5016.168.010	Hydraulic Line Kit - Code, Code R, Elixir 3, Elixir 1, Juicy 3, DB 3/1, 2000mm, Black, Qty 1 00.5016.168.010
09	00.5016.168.020	Hydraulic Line Kit - Code, Code R, Elixir 3, Elixir 1, Juicy 3, DB 3/1, 2000mm, White, Qty 1 00.5016.168.020
