Shimano RD-TX51-2757

RD-TX51-2757 RD Rear Derailleur - Schaltwerk

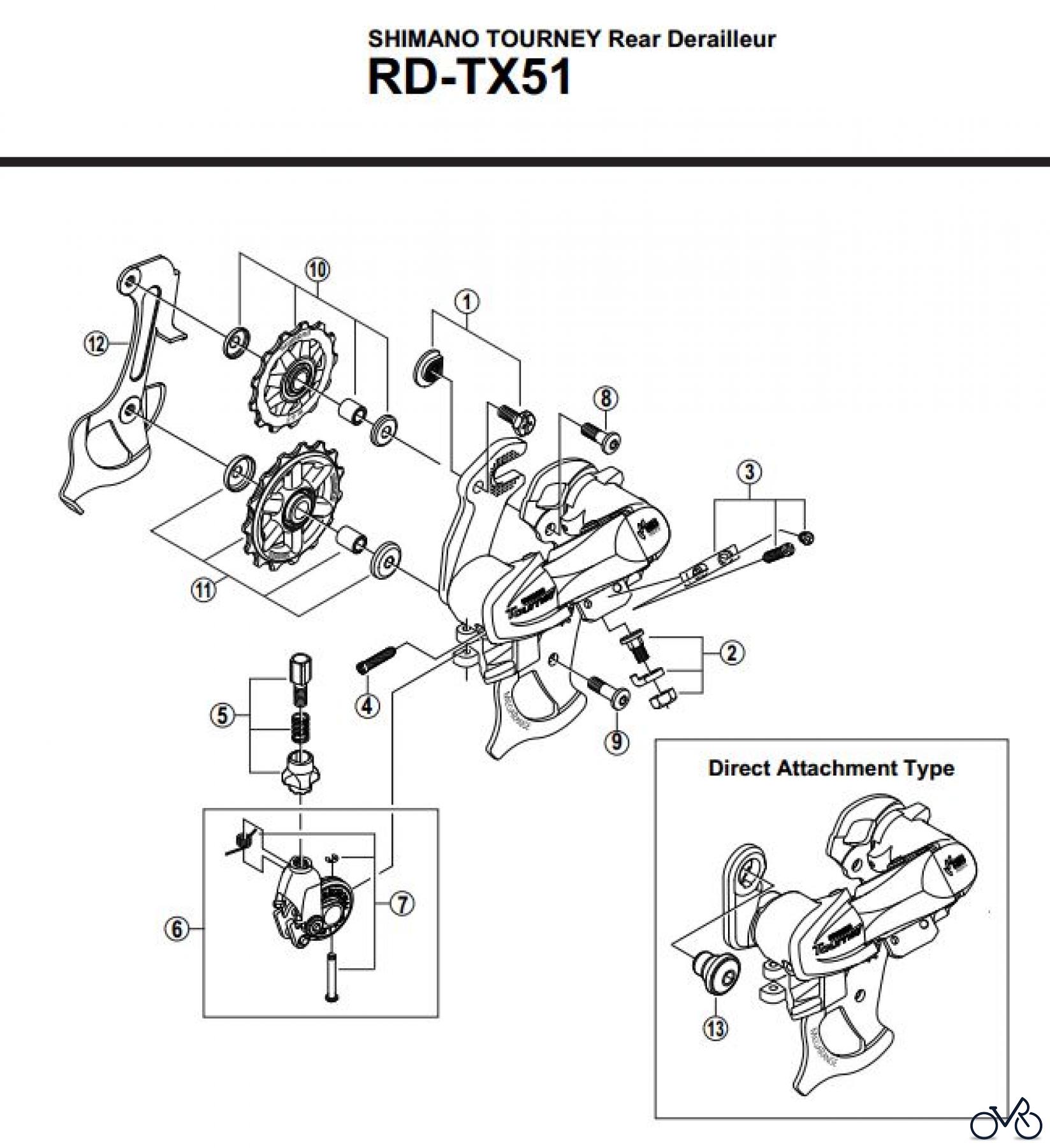

Here you will find the spare parts drawing for Shimano RD Rear Derailleur - Schaltwerk RD-TX51-2757. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-54M98030	Adapter Screw (M5 x 11.5) & Nut Y54M98030
2	Y-5WG98010	Cable Fixing Bolt (M5 x 8.5) & Plate Y5WG98010
3	Y-5V798010	Stroke Adjusting Screws (M4 x 15.3) & Plate Y5V798010
4	Y-5WF14000	B-Tension Adjusting Screw (M4 x 17.5) Y5WF14000
5	Y-5V898030	Cable Adjusting Bolt Unit Y5V898030
6	Y-5WF98010	Cable Roller Unit Y5WF98010
7	Y-5WF98020	Cable Roller Axle Unit Y5WF98020
8	Y-5TW35010	Guide Pulley Bolt (M5 x 14.5) Y5TW35010
9	Y-5TW35020	Tension Pulley Bolt (M5 x 16.2) Y5TW35020
10	Y-5T498040	Guide Pulley Unit Y5T498040
11	Y-5V898060	Tension Pulley Unit Y5V898060
12	Y-5V614000	Inner Plate Y5V614000
13	Y-5TW98010	B-Axle w/Spacer (Direct Attachment Type) Y5TW98010
