Shimano RD-MC18

RD-MC18 RD Rear Derailleur - Schaltwerk

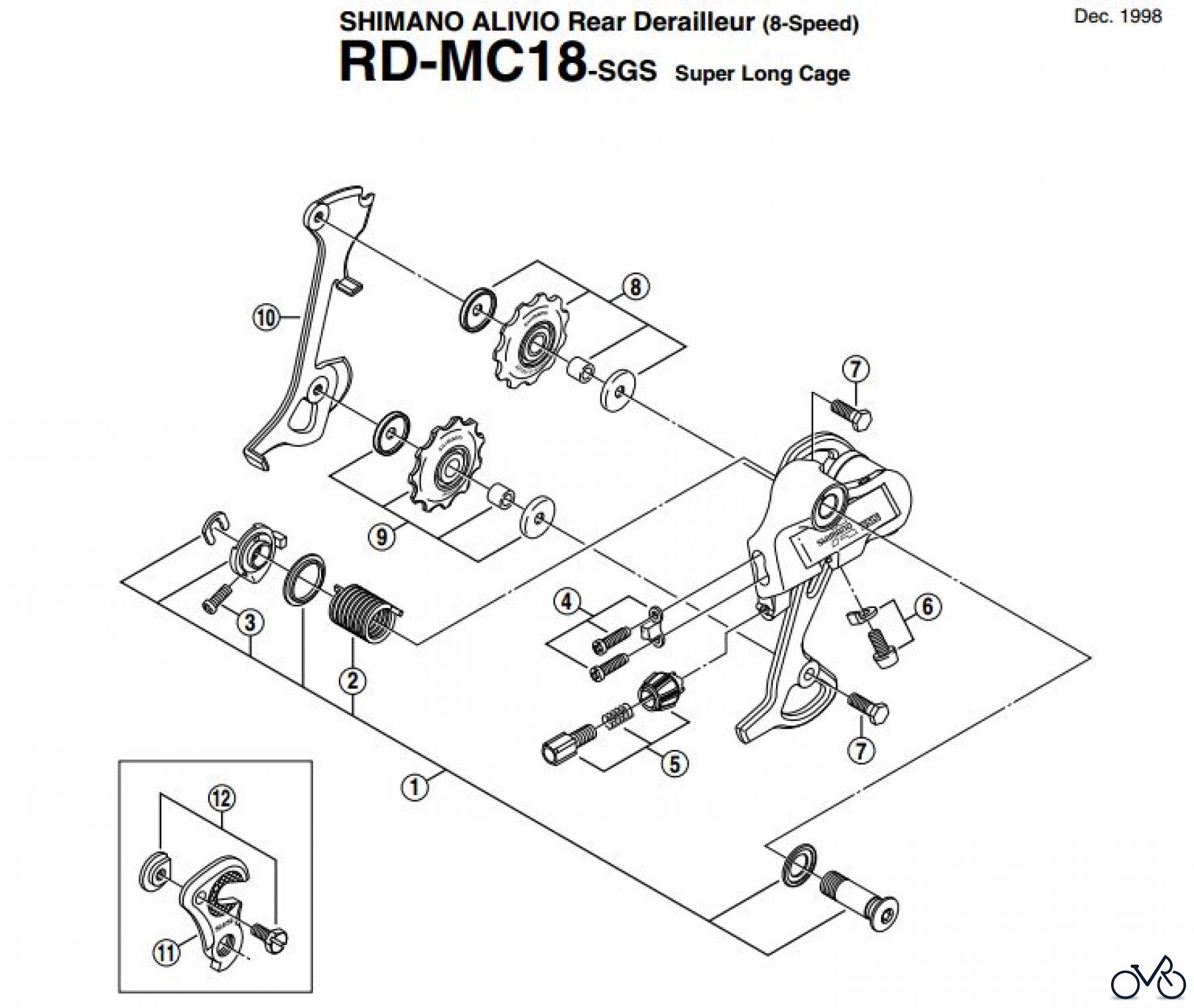

Here you will find the spare parts drawing for Shimano RD Rear Derailleur - Schaltwerk RD-MC18. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-5UH98020	B-Axle Assembly Y5UH98020
2	Y-5UH22000	B-Tension Spring Y5UH22000
3	Y-55625010	B-Tension Adjusting Screw (M4 x 12) Y55625010
4	Y-53K98020	Stroke Adjusting Screws (M4 x 14.5) & Plate Y53K98020
5	Y-52A98010	Cable Adjusting Bolt Unit Y52A98010
6	Y-5UG98020	Cable Fixing Bolt (M5 x 8.5) & Plate Y5UG98020
7	Y-54Y25200	Pulley Bolt (M5 x 14) Y54Y25200
8	Y-5UN98060	Guide Pulley Unit Y5UN98060
9	Y-5UN98070	Tension Pulley Unit Y5UN98070
10	Y-5UP10000	Inner Plate Y5UP10000
11	Y-52U11000	Adapter Y52U11000
12	Y-5UA98030	Adapter Screw (M5 x 10.5) & Nut Y5UA98030
