Shimano RD-M972-2758B

RD-M972-2758B RD Rear Derailleur - Schaltwerk

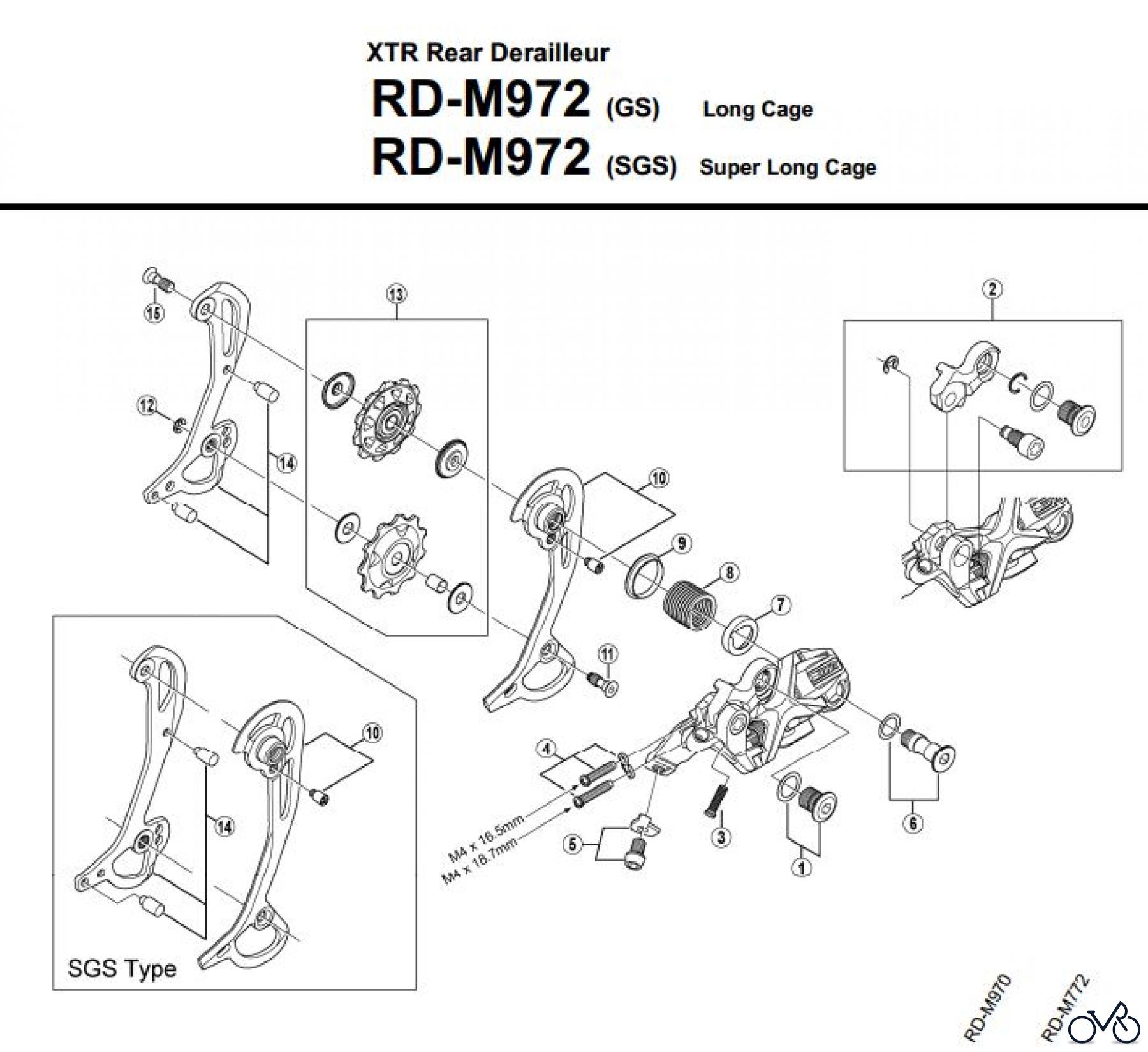

Here you will find the spare parts drawing for Shimano RD Rear Derailleur - Schaltwerk RD-M972-2758B. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y5WJ98130	B-Axle Assembly Y5WJ98130
2	Y5WJ98140	B-Axle Unit Y5WJ98140
3	Y55625070	B-Tension Adjusting Screw (M4 x 13.5) Y55625070
4	Y5WJ98020	Stroke Adjusting Screws & Plate Y5WJ98020
5	Y5WJ98030	Cable Fixing Bolt (M6 x 8) & Plate Y5WJ98030
6	Y5WJ98040	P-Axle Assembly Y5WJ98040
7	Y5WJ18000	P-Tension Spring Cover Y5WJ18000
8	Y5WJ27000	P-Tension Spring Y5WJ27000
9	Y5UC14000	P-Seal Ring Y5UC14000
10	Y5WJ98050	Outer Plate Assembly (GS-Type) Y5WJ98050
10	Y5WJ98060	Outer Plate Assembly (SGS-Type) Y5WJ98060
11	Y5VW24000	Tension Pulley Bolt (M5 x 14.35) Y5VW24000
12	Y5U524010	Stop Ring Y5U524010
13	Y5VW98100	Guide & Tension Pulley Unit Y5VW98100
14	Y5WJ98090	Inner Plate Assembly (GS-Type) Y5WJ98090
14	Y5WJ98100	Inner Plate Assembly (SGS-Type) Y5WJ98100
15	Y5WJ21000	Guide Pulley Bolt (M5 x 12.6) Y5WJ21000
