Shimano RD-M663-3043

RD-M663-3043 RD Rear Derailleur - Schaltwerk

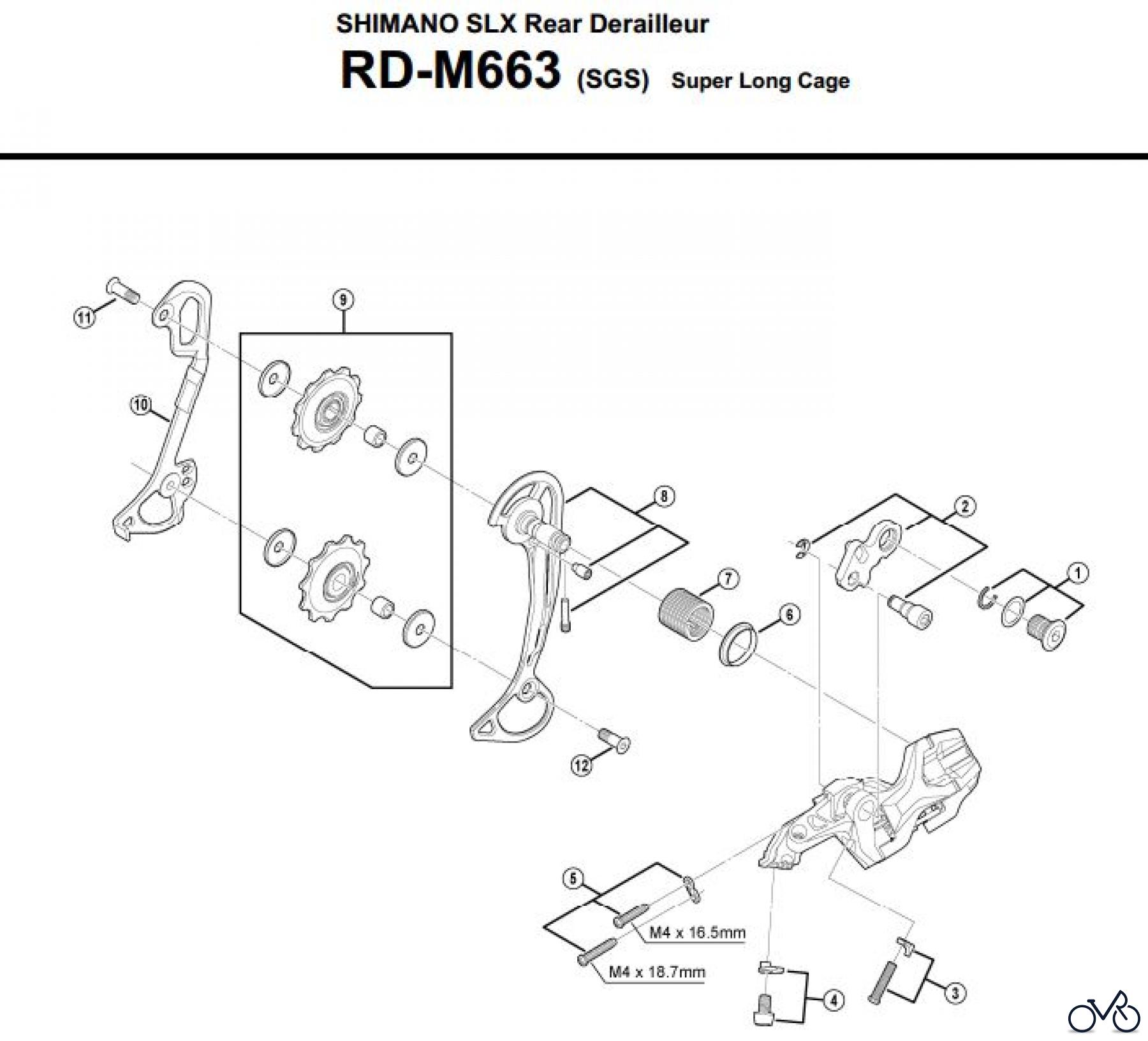

Here you will find the spare parts drawing for Shimano RD Rear Derailleur - Schaltwerk RD-M663-3043. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y5XF98010	B-Axle Assembly Y5XF98010
2	Y5XF98020	Bracket Axle Unit Y5XF98020
3	Y5XF98030	B-Tension Adjusting Screw (M4 x 18) & Plate Y5XF98030
4	Y5W798030	Cable Fixing Bolt (M5 x 8) & Plate Y5W798030
5	Y5W798020	Stroke Adjusting Screws & Plate Y5W798020
6	Y5UC14000	P-Seal Ring Y5UC14000
7	Y5W722000	P-Tension Spring Y5W722000
8	Y5XE98010	Outer Plate Assembly Y5XE98010
9	Y5XE98030	Guide & Tension Pulley Unit Y5XE98030
10	Y5XF10100	Inner Plate Y5XF10100
11	Y53M24400	Guide Pulley Bolt (M5 x 13.95) Y53M24400
12	Y53M24000	Tension Pulley Bolt (M5 x 12.45) Y53M24000
