Shimano RD-M570

RD-M570 RD Rear Derailleur - Schaltwerk

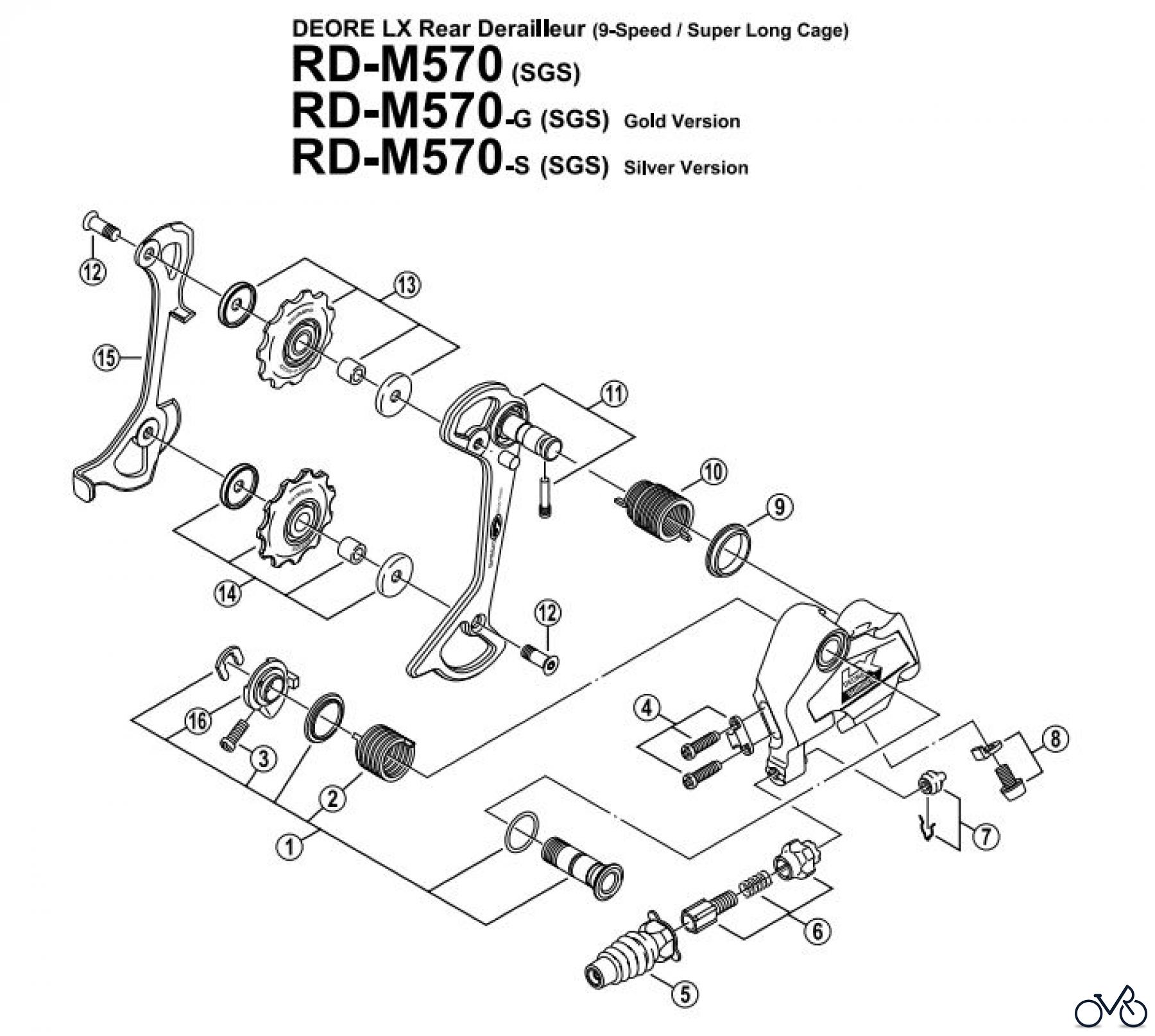

Here you will find the spare parts drawing for Shimano RD Rear Derailleur - Schaltwerk RD-M570. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-5TR98010	B-Axle Assembly (Silver) Y5TR98010
1	Y-5TR98040	B-Axle Assembly (Black) for RD-M570-G Y5TR98040
2	Y-5UG11000	B-Tension Spring Y5UG11000
3	Y-55625010	B-Tension Adjusting Screw (M4 x 12) Y55625010
4	Y-5TP98020	Stroke Adjusting Screws (M4 x 12) Y5TP98020
5	Y-5TN13000	Cable Adjusting Rubber Cover Y5TN13000
6	Y-5TJ98030	Cable Adjusting Bolt Unit Y5TJ98030
7	Y-5TP98030	Rubber Boot & Stop Ring Y5TP98030
8	Y-5UG98020	Cable Fixing Bolt (M5 x 8,5) & Plate Y5UG98020
9	Y-5UC14000	P-Seal Ring Y5UC14000
10	Y-5UC12100	P-Tension Spring Y5UC12100
11	Y-5TR98020	Outer Plate Assembly (Silver) Y5TR98020
11	Y-5TR98050	Outer Plate Assembly (Gold) for RD-M570-G Y5TR98050
11	Y-5TR98070	Outer Plate Assembly (Black) for RD-M570-S Y5TR98070
12	Y-53M24000	Pulley Bolt Y53M24000
13	Y-5UN98060	Guide Pulley Unit Y5UN98060
14	Y-5UN98070	Tension Pulley Unit Y5UN98070
15	Y-5TP10100	Inner Plate (Silver) Y5TP10100
15	Y-5TP10000	Inner Plate (Black) for RD-M570-G/M570-S Y5TP10000
16	Y-5UA15000	Stopper Plate (Silver) Y5UA15000
16	Y-5UA15100	Stopper Plate (Black) for RD-M570-G Y5UA15100
