Shimano RD-3300-EV

RD-3300-EV RD Rear Derailleur - Schaltwerk

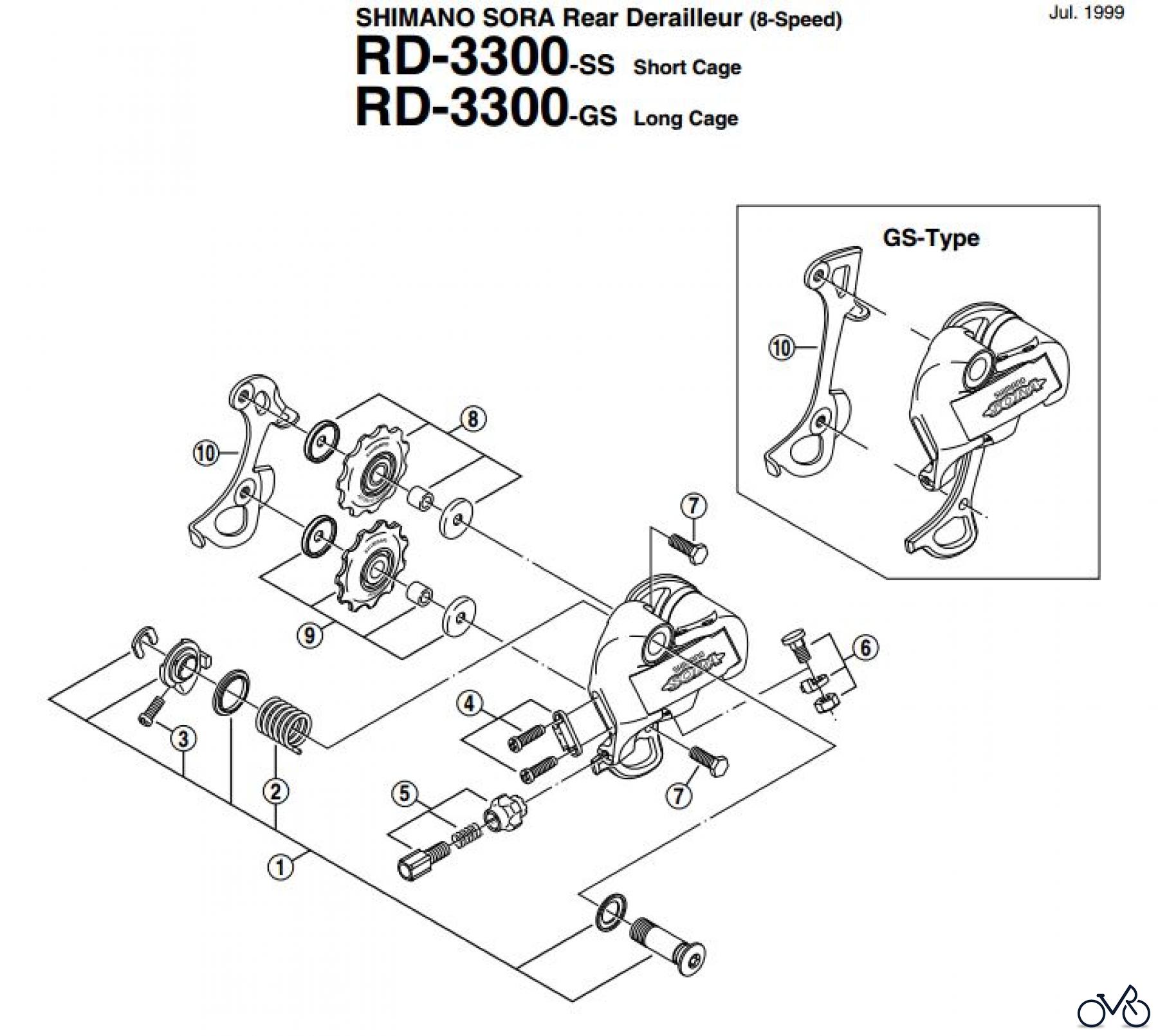

Here you will find the spare parts drawing for Shimano RD Rear Derailleur - Schaltwerk RD-3300-EV. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-5TS98010	B-Axle Assembly Y5TS98010
2	Y-5TJ27100	B-Tension Spring Y5TJ27100
3	Y-55625030	B-Tension Adjusting Screw (M4 x 12) Y55625030
4	Y-5TK98020	Stroke Adjusting Screws (M4 x 14.5) & Plate Y5TK98020
5	Y-5TJ98030	Cable Adjusting Bolt Unit Y5TJ98030
6	Y-5UF98020	Cable Fixing Bolt Unit Y5UF98020
7	Y-54Y25200	Pulley Bolt (M5 x 14) Y54Y25200
8	Y-5UN98060	Guide Pulley Unit Y5UN98060
9	Y-5UN98070	Tension Pulley Unit Y5UN98070
10	Y-53Z08200	Inner Plate (SS-Type) Y53Z08200
10	Y-53Z09200	Inner Plate (GS-Type) Y53Z09200
