Shimano BR-5600

BR-5600 BR Brake - Bremse

Shimano 105 Caliper Brake

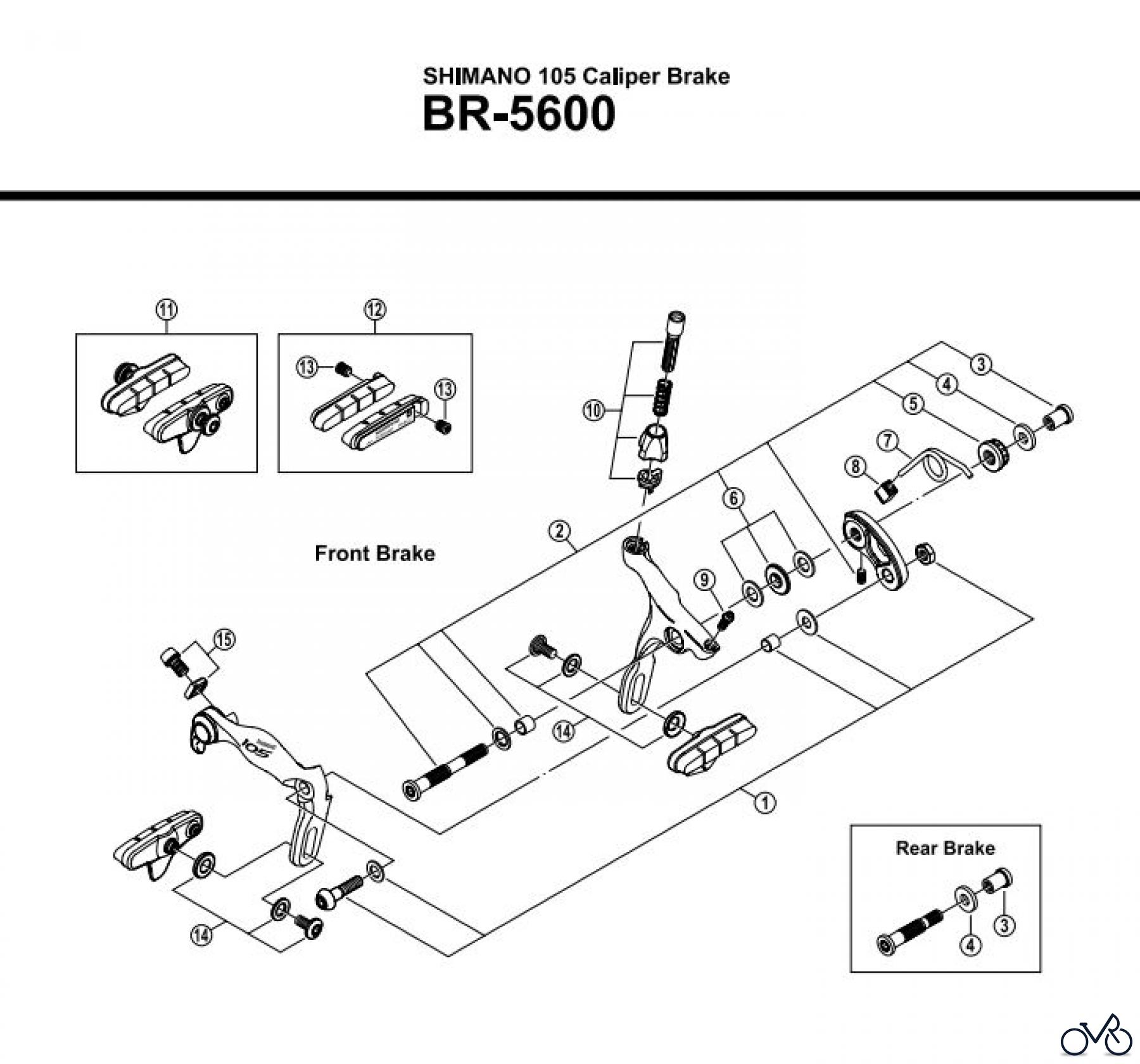

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-5600. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y-8DU98010	Arm Bolt Unit (M6 x 22.5) Y8DU98010
02	Y-8DU98020	Front Pivot Bolt Assembly {Pivot Bolt: 52.5 mm (2-1/16") / Pivot Nut: 10.5 mm} Y8DU98020
02	Y-8DU98030	Front Pivot Bolt Assembly {Pivot Bolt: 52.5 mm (2-1/16") / Pivot Nut: 12.5 mm} Y8DU98030
02	Y-8DU98040	Front Pivot Bolt Assembly {Pivot Bolt: 52.5 mm (2-1/16") / Pivot Nut: 18.0 mm} Y8DU98040
02	Y-8DU98050	Front Pivot Bolt Assembly {Pivot Bolt: 52.5 mm (2-1/16") / Pivot Nut:27.0 mm} Y8DU98050
02	Y-8DU98060	Rear Pivot Bolt Assembly {Pivot Bolt: 37.8 mm (1-1/2") / Pivot Nut:10.5 mm} Y8DU98060
03	Y-85575110	Pivot Nut (10.5 mm) for Front/Rear Y85575110
03	Y-85575020	Pivot Nut (12.5 mm) for Front/Rear Y85575020
03	Y-85574010	Pivot Nut (18.0 mm) for Front Y85574010
03	Y-8A023000	Pivot Nut (27.0 mm) for Front Y8A023000
04	Y-85850100	Spacer-R (2 mm) Y85850100
05	Y-8DD04100	Lock Nut (M7) Y8DD04100
06	Y-84B98050	Ball Retainer Unit ( 7) Y84B98050
07	Y-8DD05000	Arm Spring Y8DD05000
08	Y-84B11000	Sleeve Y84B11000
09	Y-81U10100	EC-Bolt (M4 x 12.5) Y81U10100
10	Y-8DD98080	Cable Adjusting Bolt Unit Y8DD98080
11	Y-8DU98070	R55C2 Cartridge-Type Brake Shoe Set (Pair/Silver) for BR-5600 Y8DU98070
12	Y-8A098020	R55C2 Cartridge-Type Brake Shoes & Fixing Bolts (Pair) Y8A098020
13	Y-8FA17000	Fixing Bolt (M4 x 5.5) Y8FA17000
14	Y-8DU98080	Shoe Fixing Bolt Unit (M5 x 11.2) Y8DU98080
15	Y-8DU98090	Cable Fixing Bolt (M6 x 8.5) & Plate Y8DU98090
