Shimano BR-5501

BR-5501 BR Brake - Bremse

Shimano 105 Caliper Brake

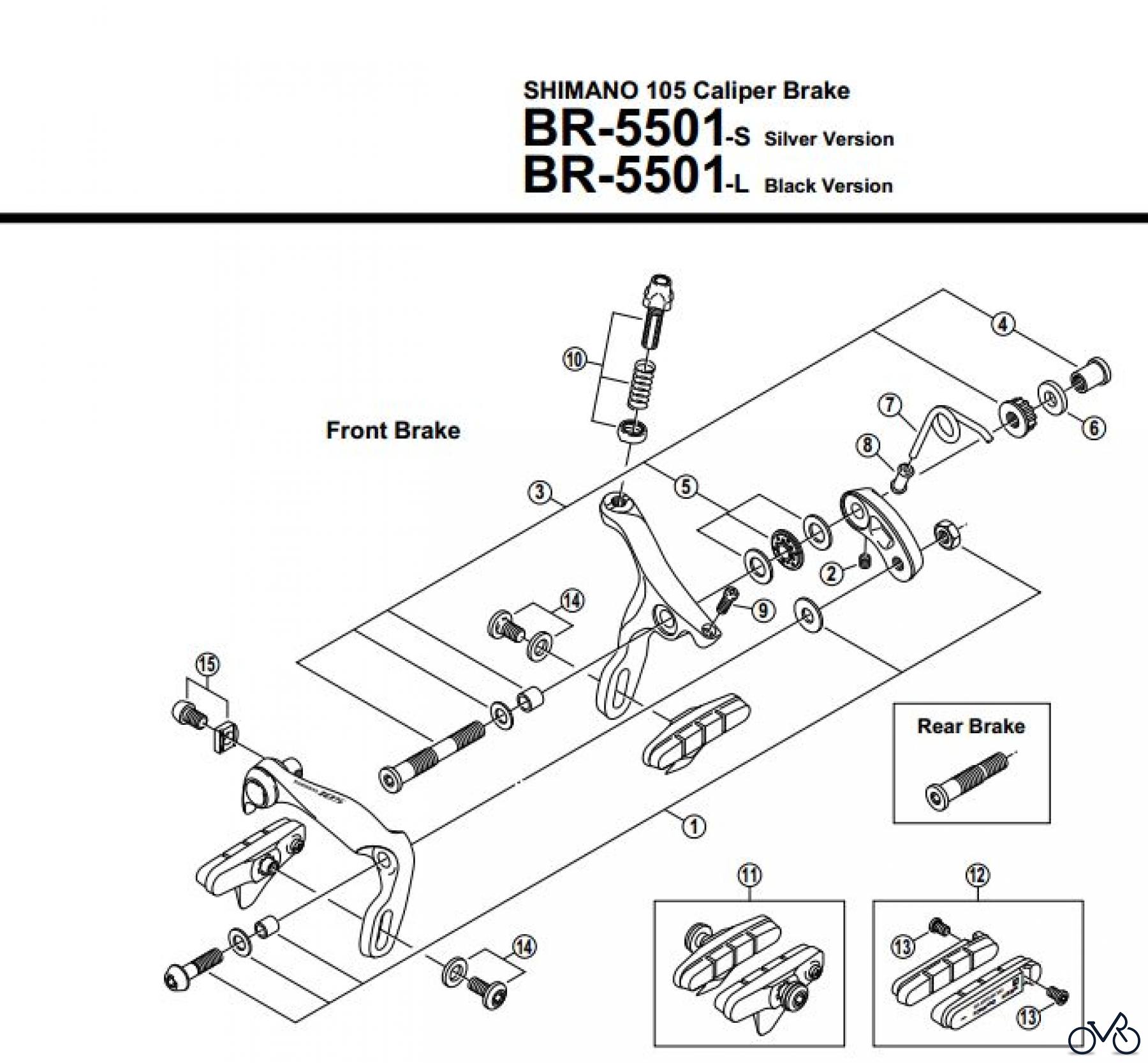

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-5501. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
01	Y-83J98020	Arm Bolt Unit (M6 x 22.5) Y83J98020
02	Y-88414200	Set Bolt Y88414200
03	Y-83J98030	Front Pivot Bolt Assembly {Pivot Bolt: 50.7 mm (2") / Pivot Nut: 10.5 mm } Y83J98030
03	Y-83J98040	Rear Pivot Bolt Assembly {Pivot Bolt: 36.00 mm (1-13/32") / Pivot Nut: 10.5 mm } Y83J98040
04	Y-85575110	Pivot Nut 10,5 mm for Front/Rear Y85575110
04	Y-85575020	Pivot Nut 12,5 mm for Front Y85575020
04	Y-85574010	Pivot Nut 18.0 mm for Front Y85574010
05	Y-84B98050	Ball Retainer Unit 7mm Y84B98050
06	Y-85850100	Washer for Pivot Nut 18.0 mm Y85850100
07	Y-83J05000	Arm Spring Y83J05000
08	Y-84B11000	Sleeve Y84B11000
09	Y-91U10200	EC-Screw (M4 x 11.7) Y91U10200
10	Y-83J98050	Cable Adjusting Bolt Unit Y83J98050
11	Y-83J98070	Cartridge-Type Brake Shoe Set (Pair) Y83J98070
12	Y-8FA98020	Cartridge-Type Brake Shoes & Fixing Bolts (Pair) Y8FA98020
13	Y-8FA17000	Fixing Bolt (M4 x 5.5) Y8FA17000
14	Y-8FA98090	Shoe Fixing Bolt (M5 x 11.2) & Washer Y8FA98090
15	Y-83J98060	Cable Fixing Bolt (M6 x 8.5) & Plate Y83J98060
