Shimano BR-4600-3142

BR-4600-3142 BR Brake - Bremse

Tiagra Caliper Brake

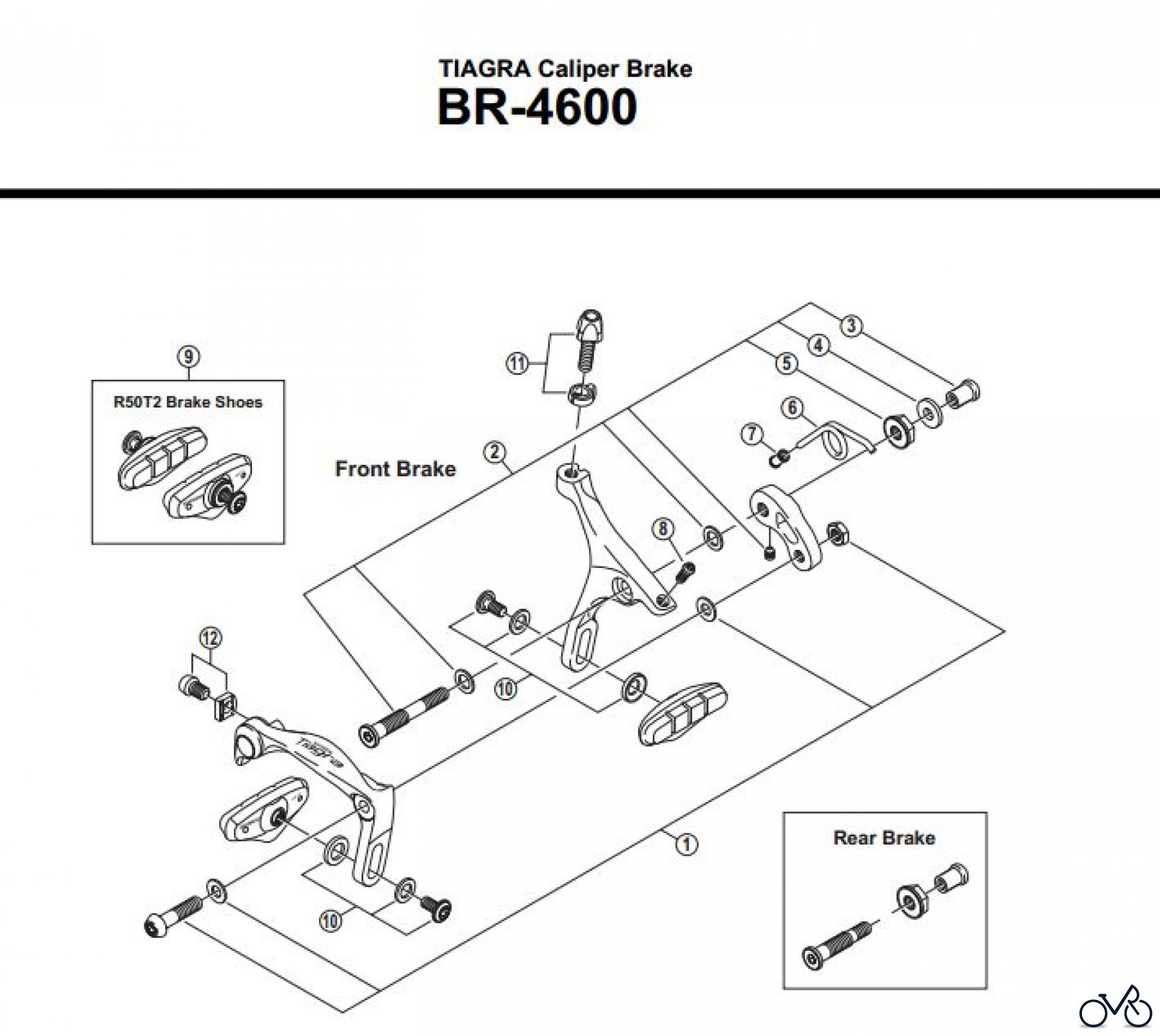

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-4600-3142. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
001	Y8JY98010	Arm Bolt Unit (M6 x 26.5) Y8JY98010
002	Y8JY98020	Front Pivot Bolt Assembly {Pivot Bolt: 50.4 mm (2") / Pivot Nut: 10.5 mm} Y8JY98020
002	Y8JY98030	Front Pivot Bolt Assembly {Pivot Bolt: 50.4 mm (2") / Pivot Nut: 12.5 mm} Y8JY98030
002	Y8JY98040	Front Pivot Bolt Assembly {Pivot Bolt: 50.4 mm (2") / Pivot Nut: 18.0 mm} Y8JY98040
002	Y8JY98050	Front Pivot Bolt Assembly {Pivot Bolt: 50.4 mm (2") / Pivot Nut: 27.0 mm} Y8JY98050
002	Y8JY98060	Rear Pivot Bolt Assembly {Pivot Bolt: 35.7 mm (1-13/32") / Pivot Nut: 10.5 mm} Y8JY98060
003	Y85575120	Pivot Nut (10.5 mm) for Front/Rear Y85575120
003	Y85575220	Pivot Nut (12.5 mm) for Front Y85575220
003	Y85574210	Pivot Nut (18.0 mm) for Front Y85574210
003	Y8A023100	Pivot Nut (27.0 mm) for Front Y8A023100
004	Y85850100	Spacer-R (2 mm) Y85850100
005	Y8E604000	Lock Nut Y8E604000
006	Y8FN10000	Arm Spring Y8FN10000
007	Y8BY08000	Spring Guide Y8BY08000
008	Y8JY10000	EC-Screw (M4 x 10.2) Y8JY10000
009	Y8JY98070	R50T2 Brake Shoe Set (5 pairs) Y8JY98070
010	Y8JY98080	Shoe Fixing Bolt Unit (M5 x 11.2) Y8JY98080
011	Y8JY98090	Cable Adjusting Bolt (M6 x 21.6) & Clip Y8JY98090
012	Y8BT98010	Cable Fixing Bolt (M6 x 9) & Plate Y8BT98010
