Shimano BR-4500

BR-4500 BR Brake - Bremse

Tiagra Caliper Brake

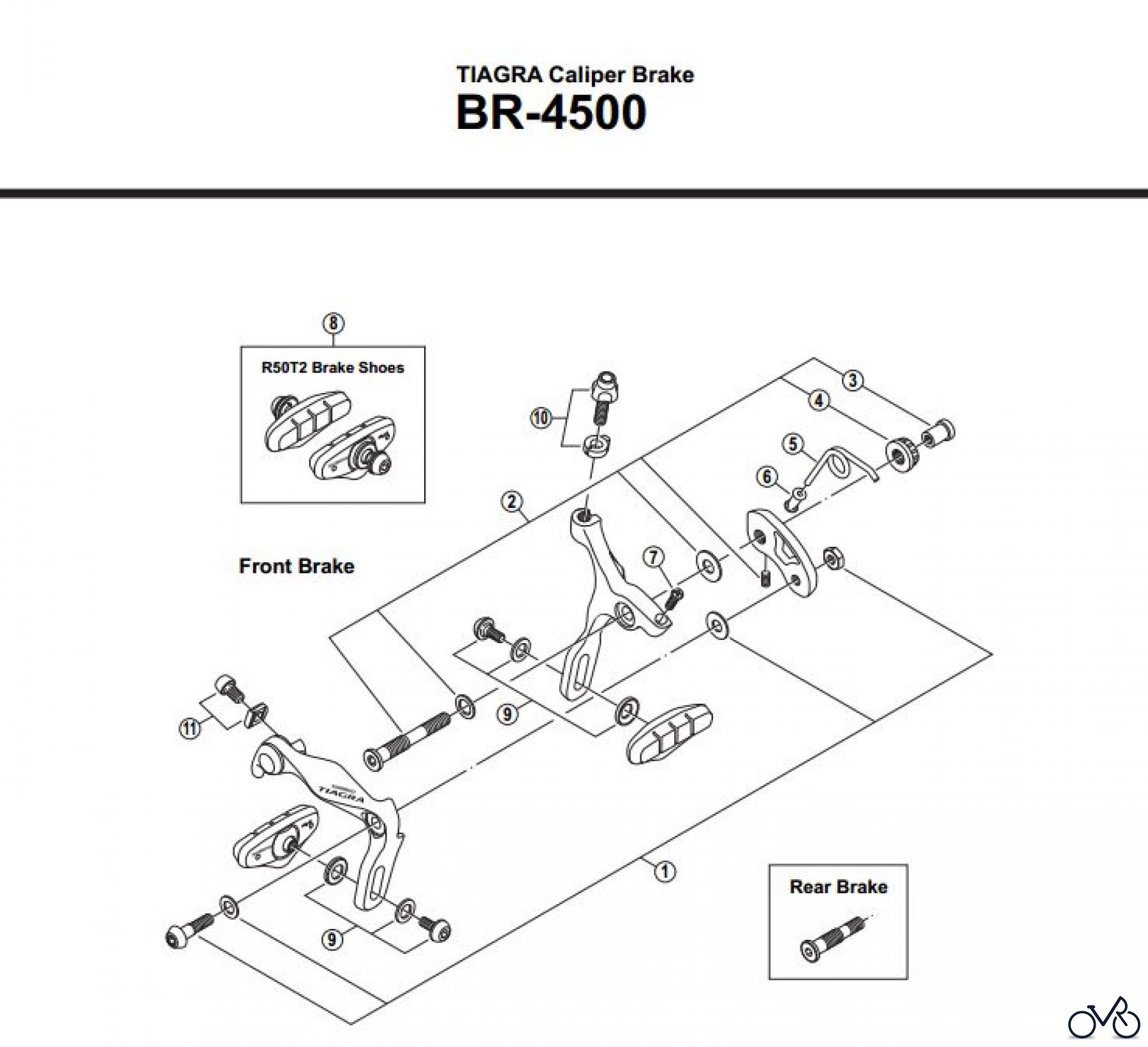

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-4500. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
001	Y-8BY98030	Arm Bolt Unit (M6 x 21.5) Y8BY98030
002	Y-8BZ98010	Front Pivot Bolt Assembly {Pivot Bolt: 48.9 mm (1-15/16") / Pivot Nut: 10.5 mm} Y8BZ98010
002	Y-8BZ98020	Front Pivot Bolt Assembly {Pivot Bolt: 48.9 mm (1-15/16") / Pivot Nut: 12.5 mm} Y8BZ98020
002	Y-8BZ98030	Front Pivot Bolt Assembly {Pivot Bolt: 48.9 mm (1-15/16") / Pivot Nut: 18.0 mm} Y8BZ98030
002	Y-8E698020	Front Pivot Bolt Assembly {Pivot Bolt: 48.9 mm (1-15/16") / Pivot Nut: 27.0 mm} Y8E698020
002	Y-8BZ98050	Rear Pivot Bolt Assembly {Pivot Bolt: 34.2 mm (1-11/32") / Pivot Nut: 10.5 mm} Y8BZ98050
003	Y-85575110	Pivot Nut (10.5 mm) for Front/Rear Y85575110
003	Y-85575020	Pivot Nut (12.5 mm) for Front Y85575020
003	Y-85574010	Pivot Nut (18.0 mm) for Front Y85574010
003	Y-8A023000	Pivot Nut (27.0 mm) for Front Y8A023000
004	Y-8BC06000	Lock Nut Y8BC06000
005	Y-8BY06000	Arm Spring Y8BY06000
006	Y-8BY08000	Spring Guide Y8BY08000
007	Y-81U10200	EC-Screw (M4 x 11.7) Y81U10200
008	Y-8E698010	R50T2 Brake Shoe Set (5 pairs) Y8E698010
009	Y-8E698030	Shoe Fixing Bolt Unit (M5 x 11.2) Y8E698030
010	Y-8BY98040	Cable Adjusting Bolt (M6 x 19.3) & Clip Y8BY98040
011	Y-8BT98010	Cable Fixing Bolt (M6 x 9) & Plate Y8BT98010
