Shimano BR-3500

BR-3500 BR Brake - Bremse

Sora Caliper Brake

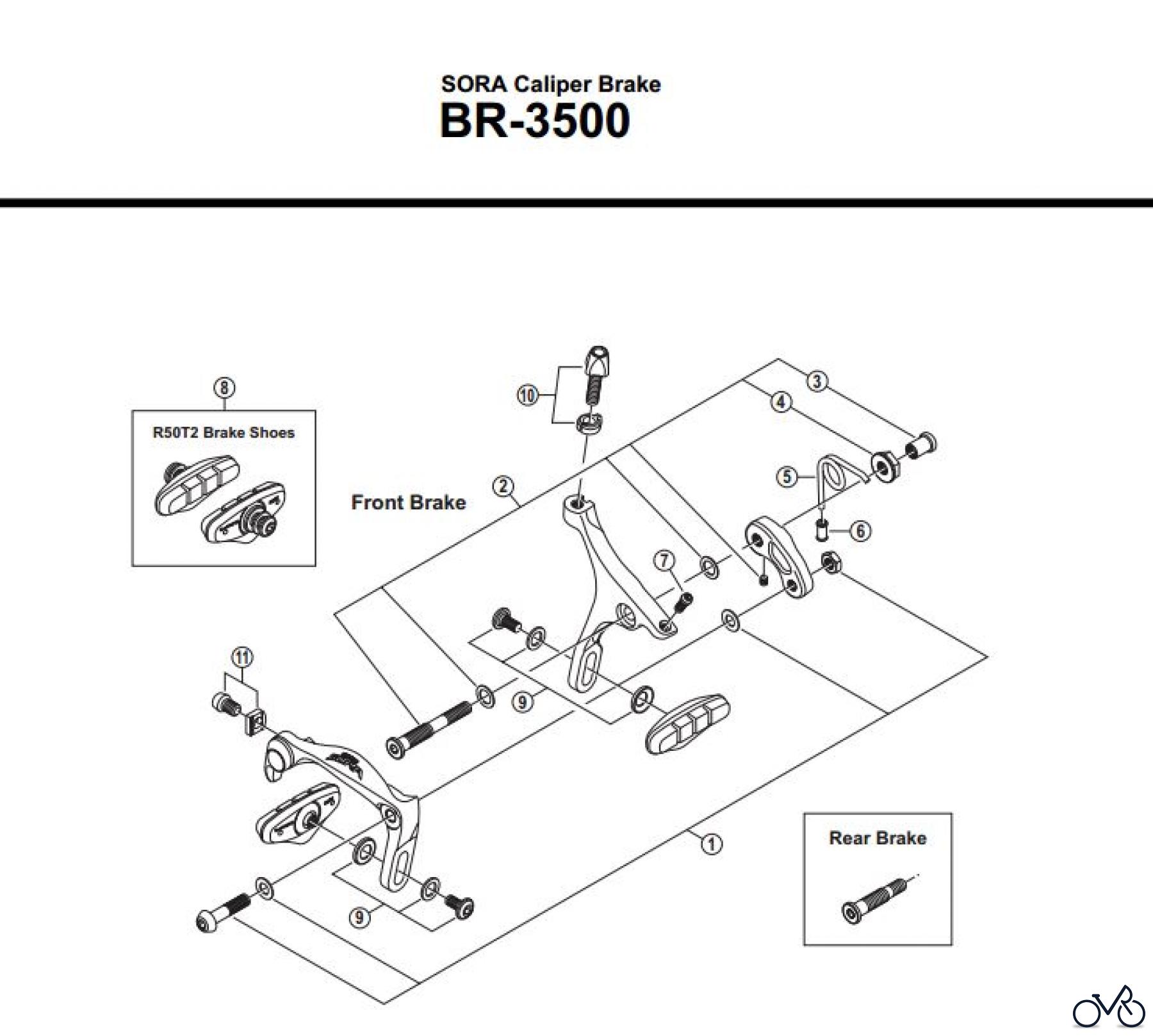

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-3500. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
001	Y8JY98010	Arm Bolt Unit (M6 x 26.5) Y8JY98010
002	Y8JY98020	Front Pivot Bolt Assembly {Pivot Bolt: 50.4 mm (2") / Pivot Nut: 10.5 mm} Y8JY98020
002	Y8JY98030	Front Pivot Bolt Assembly {Pivot Bolt: 50.4 mm (2") / Pivot Nut: 12.5 mm} Y8JY98030
002	Y8JY98040	Front Pivot Bolt Assembly {Pivot Bolt: 50.4 mm (2") / Pivot Nut: 18.0 mm} Y8JY98040
002	Y8JY98050	Front Pivot Bolt Assembly {Pivot Bolt: 50.4 mm (2") / Pivot Nut: 27.0 mm} Y8JY98050
002	Y8JY98060	Rear Pivot Bolt Assembly {Pivot Bolt: 35.7 mm (1-13/32") / Pivot Nut: 10.5 mm} Y8JY98060
003	Y85575110	Pivot Nut (10.5 mm) for Front/Rear Y85575110
003	Y85575020	Pivot Nut (12.5 mm) for Front Y85575020
003	Y85574010	Pivot Nut (18.0 mm) for Front Y85574010
003	Y8A023000	Pivot Nut (27.0 mm) for Front Y8A023000
004	Y8E604000	Lock Nut Y8E604000
005	Y8JY27000	Arm Spring Y8JY27000
006	Y8BY08000	Spring Guide Y8BY08000
007	Y8JY10000	EC-Screw (M4 x 10.2) Y8JY10000
008	Y8JY98070	R50T2 Brake Shoe Set (5 pairs) Y8JY98070
009	Y8JY98080	Shoe Fixing Bolt Unit (M5 x 11.2) Y8JY98080
010	Y8JY98090	Cable Adjusting Bolt (M6 x 21.6) & Clip Y8JY98090
011	Y8BT98010	Cable Fixing Bolt (M6 x 9) & Plate Y8BT98010
