Shimano BR-3300-A-2543

BR-3300-A-2543 BR Brake - Bremse

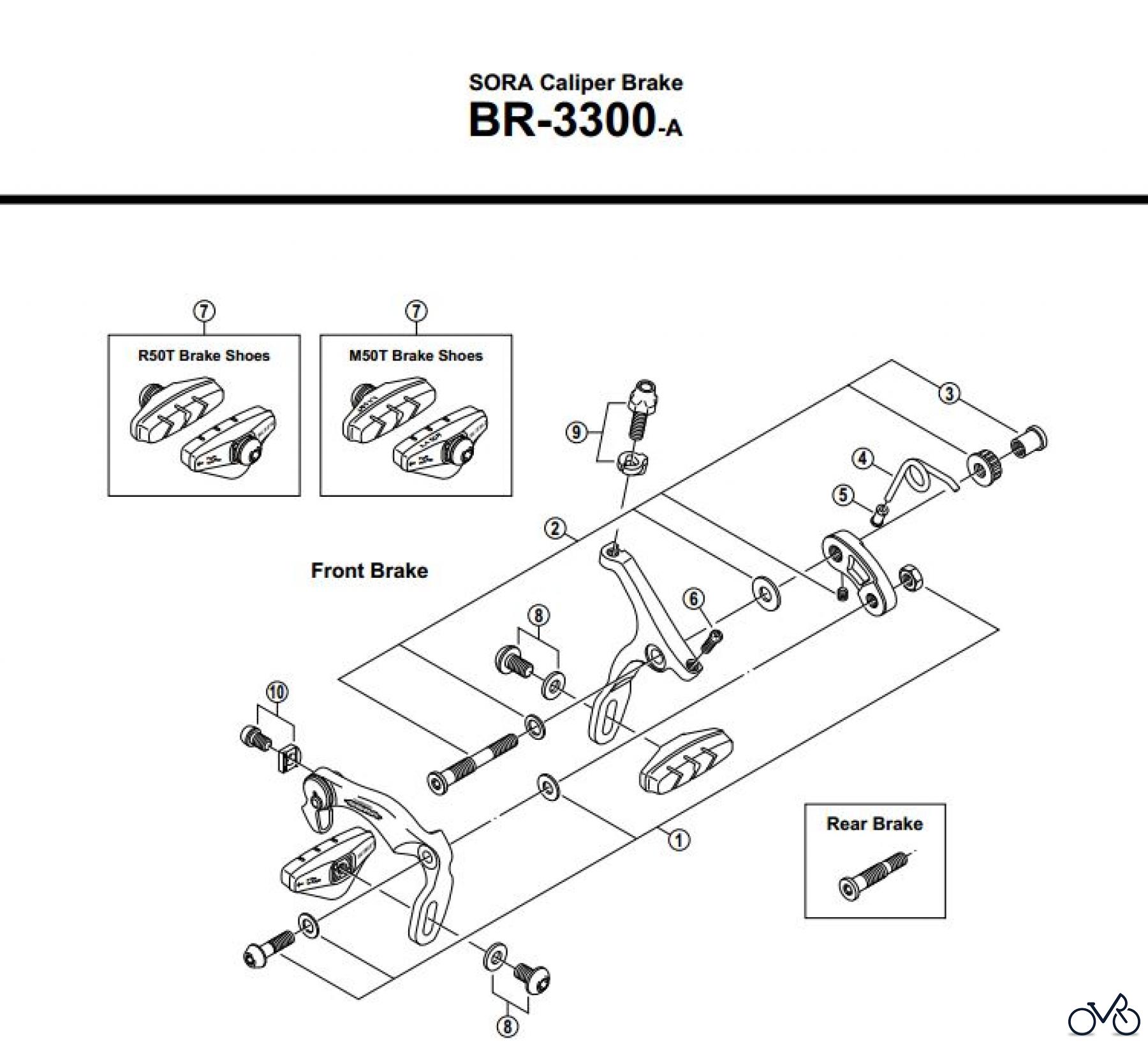

Here you will find the spare parts drawing for Shimano BR Brake - Bremse BR-3300-A-2543. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
001	Y-8BY98030	Arm Bolt Unit (M6 x 21.5) Y8BY98030
002	Y-8BZ98010	Front Pivot Bolt Assembly {Pivot Bolt: 48.9 mm (1-15/16") / Pivot Nut: 10.5 mm} Y8BZ98010
002	Y-8BZ98020	Front Pivot Bolt Assembly {Pivot Bolt: 48.9 mm (1-15/16") / Pivot Nut: 12.5 mm} Y8BZ98020
002	Y-8BZ98030	Front Pivot Bolt Assembly {Pivot Bolt: 48.9 mm (1-15/16") / Pivot Nut: 18.0 mm} Y8BZ98030
002	Y-8BZ98040	Front Pivot Bolt Assembly {Pivot Bolt: 48.9 mm (1-15/16") / Pivot Nut: 20.0 mm} Y8BZ98040
002	Y-8BZ98050	Rear Pivot Bolt Assembly {Pivot Bolt: 34.2 mm (1-11/32") / Pivot Nut: 10.5 mm} Y8BZ98050
003	Y-85575110	Pivot Nut (10.5 mm) for Front/Rear Y85575110
003	Y-85575020	Pivot Nut (12.5 mm) for Front Y85575020
003	Y-85574010	Pivot Nut (18.0 mm) for Front Y85574010
003	Y-8A023010	Pivot Nut (20.0 mm) for Front Y8A023010
004	Y-8BY06000	Arm Spring Y8BY06000
005	Y-8BY08000	Spring Guide Y8BY08000
006	Y-81U10200	EC-Screw (M4 x 11.7) Y81U10200
007	Y-82A99010	R50T Brake Shoe Set (5 pairs) Y82A99010
007	Y-8BC98100	M50T Brake Shoe Set (10 pairs) for M-System Y8BC98100
008	Y-8BC98040	Shoe Fixing Bolt (M6 x 11.2) & Washer Y8BC98040
009	Y-8BY98040	Cable Adjusting Bolt (M6 x 19.3) & Clip Y8BY98040
010	Y-8BT98010	Cable Fixing Bolt (M6 x 9) & Plate Y8BT98010
