Shimano SM-Disc-Rotor

SM-Disc-Rotor BL Brake Lever - Bremshebel

Shimano BL Brake Lever - Bremshebel SM-Disc-Rotor

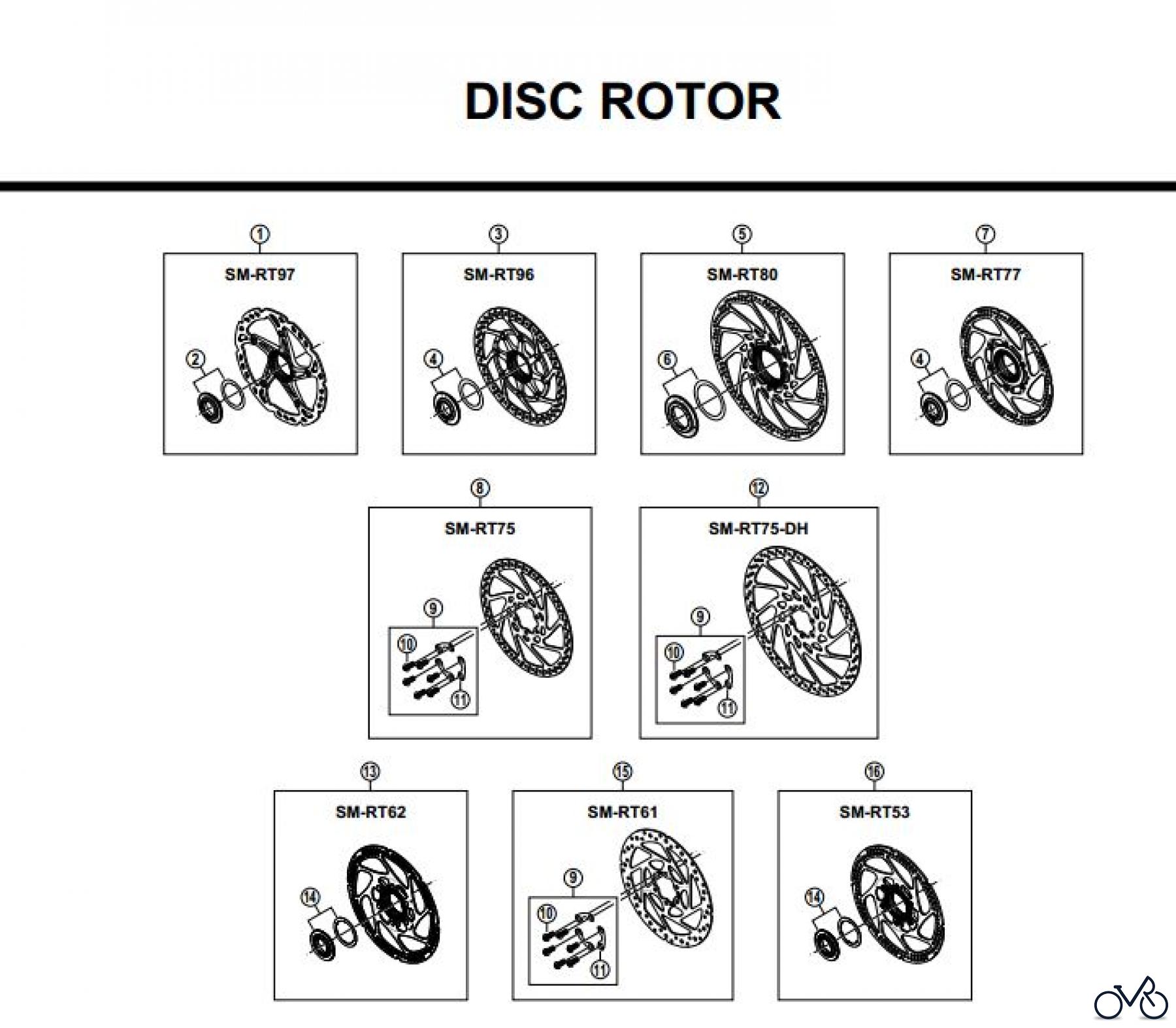

Here you will find the spare parts drawing for Shimano BL Brake Lever - Bremshebel SM-Disc-Rotor. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-8HN98040SM-RT97SS Disc Rotor Unit ( 140 mm) Y8HN98040
1 Y-8HN98010SM-RT97 Disc Rotor Unit ( 160 mm) Y8HN98010
1 Y-8HN98020SM-RT97M Disc Rotor Unit ( 180 mm) Y8HN98020
1 Y-8HN98030SM-RT97L Disc Rotor Unit ( 203 mm) Y8HN98030
2 Y-8HN98050Lock Ring & Washer for SM-RT97 Y8HN98050
3 Y-8CL98080SM-RT96 Disc Rotor Unit ( 160 mm) Y8CL98080
4 Y-8CL98090Lock Ring & Washer for SM-RT96/RT77 Y8CL98090
5 Y-8HU98010SM-RT80 Disc Rotor Unit ( 203 mm) / Oversized Center Lock Y8HU98010
5 Y-8HU98020SM-RT80S Disc Rotor Unit ( 160 mm) / Oversized Center Lock Y8HU98020
6 Y-8HU98030Lock Ring & Washer for SM-RT80 / Oversized Center Lock Y8HU98030
7 Y-8HV98010SM-RT77 Disc Rotor Unit ( 160 mm) Y8HV98010
7 Y-8HV98020SM-RT77L Disc Rotor Unit ( 203 mm) Y8HV98020
8 Y-81898010SM-RT75 Disc Rotor Unit ( 160 mm) Y81898010
8 Y-81898020SM-RT75M Disc Rotor Unit ( 170 mm) for Post Type Mount Y81898020
8 Y-81898080SM-RT75MA Disc Rotor Unit ( 180 mm) Y81898080
9 Y-81898030Disc Rotor Fixing Bolt & Plate for SM-RT75/RT75-DH/RT61 Y81898030
10 Y-81802001Disc Rotor Fixing Bolt for SM-RT75/RT75-DH/RT61 Y81802001
11 Y-81803000Disc Rotor Fixing Plate for SM-RT75/RT75-DH/RT61 Y81803000
12 Y-81898060SM-RT75-DH Disc Rotor Unit ( 203 mm) Y81898060
13 Y-8HS98010SM-RT62 Disc Rotor Unit ( 160 mm) Y8HS98010
13 Y-8HS98060SM-RT62M Disc Rotor Unit ( 180 mm) Y8HS98060
13 Y-8HS98020SM-RT62L Disc Rotor Unit ( 203 mm) Y8HS98020
14 Y-8HS98030Lock Ring & Washer for SM-RT62/RT53 Y8HS98030
15 Y-8HY98010SM-RT61 Disc Rotor Unit ( 160 mm) Y8HY98010
16 Y-8HM98010SM-RT53 Disc Rotor Unit ( 160 mm) Y8HM98010
