Shimano BL-T785-3160A

BL-T785-3160A BL Brake Lever - Bremshebel

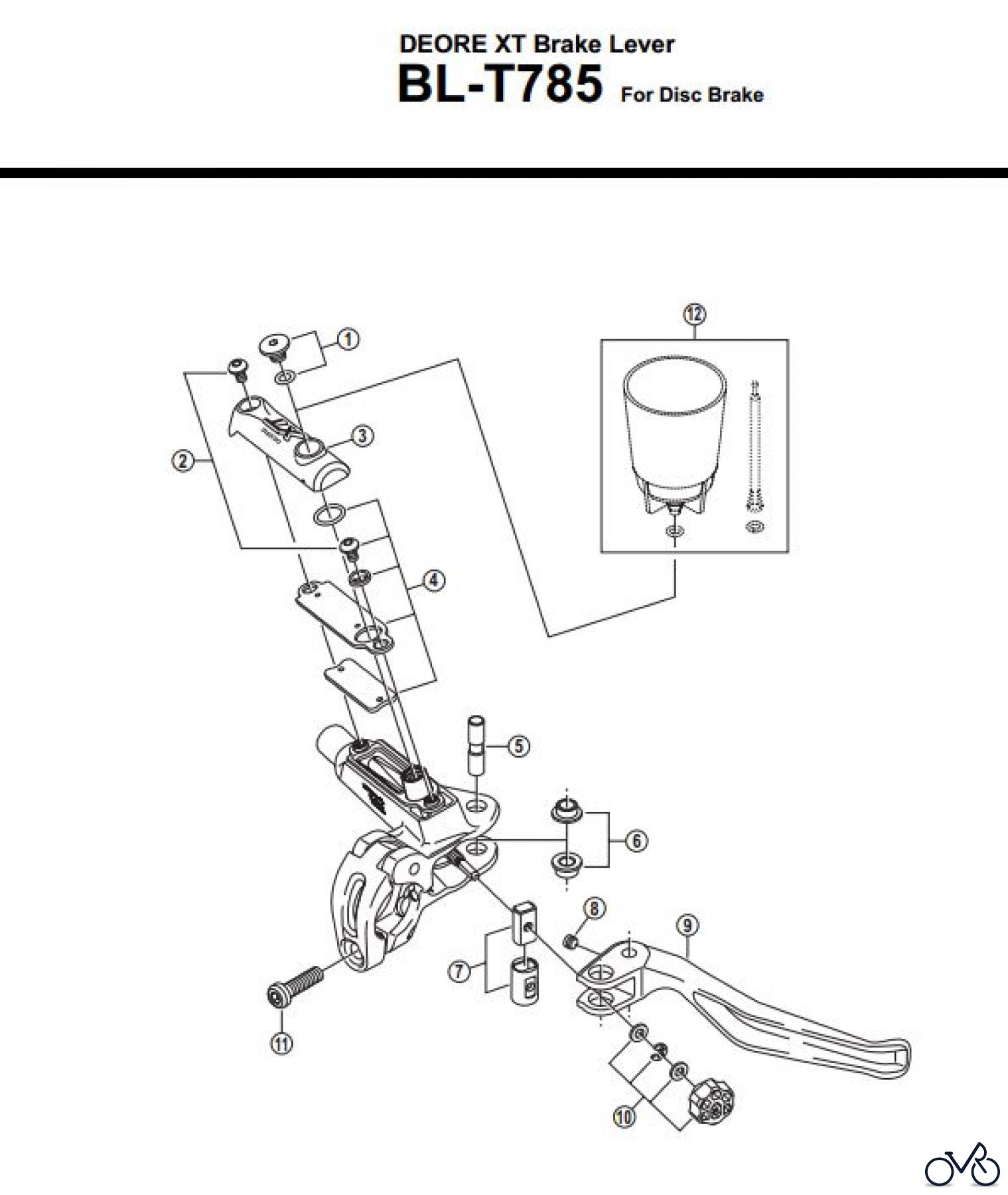

Here you will find the spare parts drawing for Shimano BL Brake Lever - Bremshebel BL-T785-3160A. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y8VC98010	Bleed Screw (M5 x 4.7) & O-Ring Y8VC98010
2	Y8VC98050	Lid Fixing Bolt (M3) 2 pcs. Y8VC98050
3	Y8VC04000	R.H. Lid Y8VC04000
3	Y8VC04010	L.H. Lid Y8VC04010
4	Y8VC98060	Separator Unit Y8VC98060
5	Y8VD05000	Lever Axle ø5 Y8VD05000
6	Y8UW98060	Lever Axle Bush A & B Y8UW98060
7	Y8VD98010	Adjust Boss & Sleeve Y8VD98010
8	Y88414000	Lever Axle Fixing Bolt Y88414000
9	Y8VD01000	Lever Member Y8VD01000
10	Y8VD98020	Reach Adjust Grip Unit Y8VD98020
11	Y8VC10000	Clamp Bolt (M5 x 18) Y8VC10000
12	ESMDISCBP	Funnel & Oil Stopper ESMDISCBP
