Shimano BL-M810-2831B

BL-M810-2831B BL Brake Lever - Bremshebel

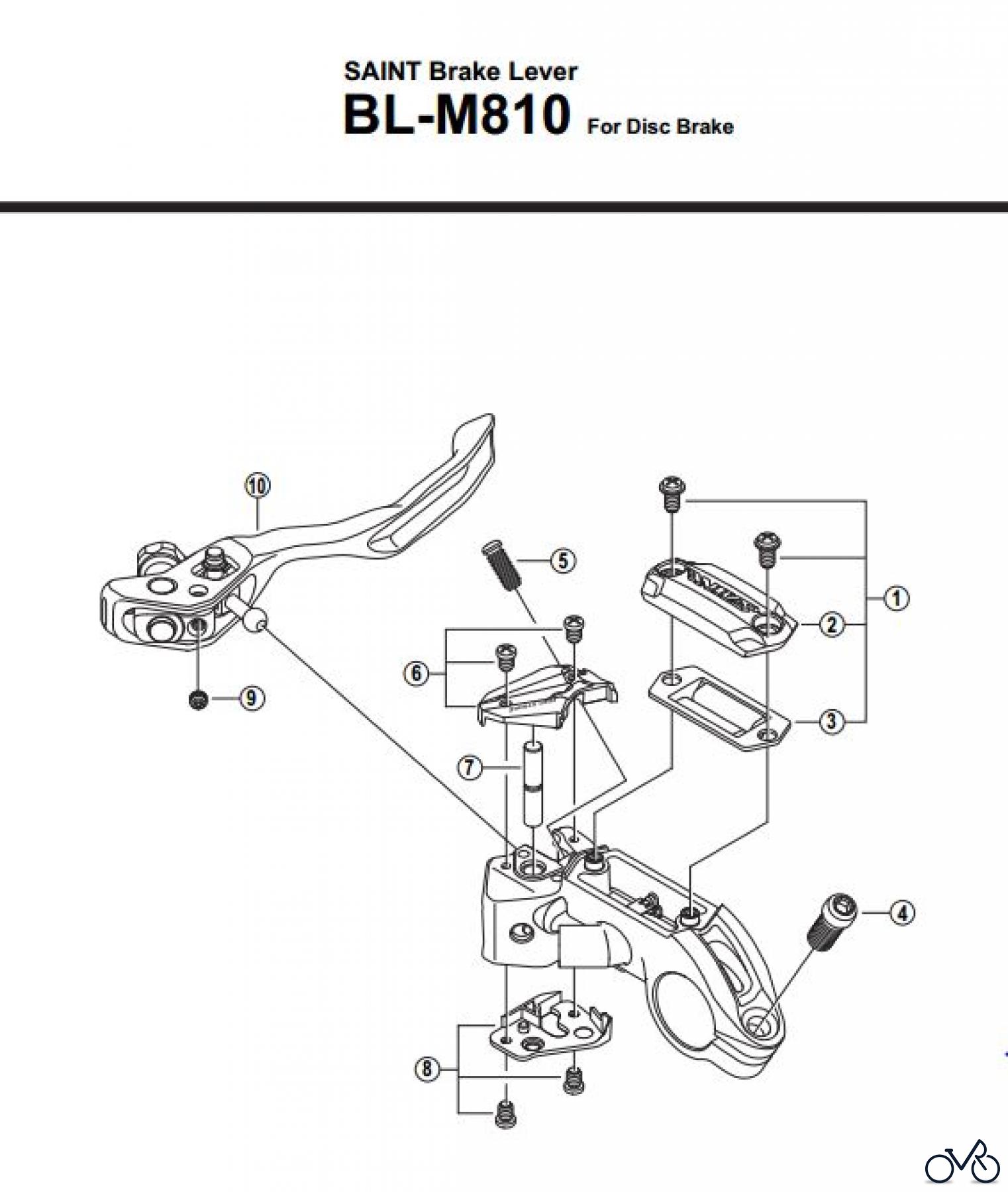

Here you will find the spare parts drawing for Shimano BL Brake Lever - Bremshebel BL-M810-2831B. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-8UL	Lid Unit Y8UL
2	Y-8UL03000	Lid Y8UL03000
3	Y-8U913000	Diaphragm Y8U913000
4	Y-8U914010	Clamp Bolt (M6 x 14.8) Y8U914010
5	Y-8U916000	Stroke Adjust Screw (M4 x 12) Y8U916000
6	Y-8UL98020	R.H. Top Cam Cover & Fixing Screws (M3 x 5) Y8UL98020
6	Y-8UL98030	L.H. Top Cam Cover & Fixing Screws (M3 x 5) Y8UL98030
7	Y-8U904000	Lever Axle Y8U904000
8	Y-8U998040	R.H. Bottom Cam Cover & Fixing Screws (M3 x 5) Y8U998040
8	Y-8U998050	L.H. Bottom Cam Cover & Fixing Screws (M3 x 5) Y8U998050
9	Y-8SZ07000	Lever Axle Fixing Bolt Y8SZ07000
10	Y-8UL98060	Lever Unit Y8UL98060
