Shimano BL-M775-XT

BL-M775-XT BL Brake Lever - Bremshebel

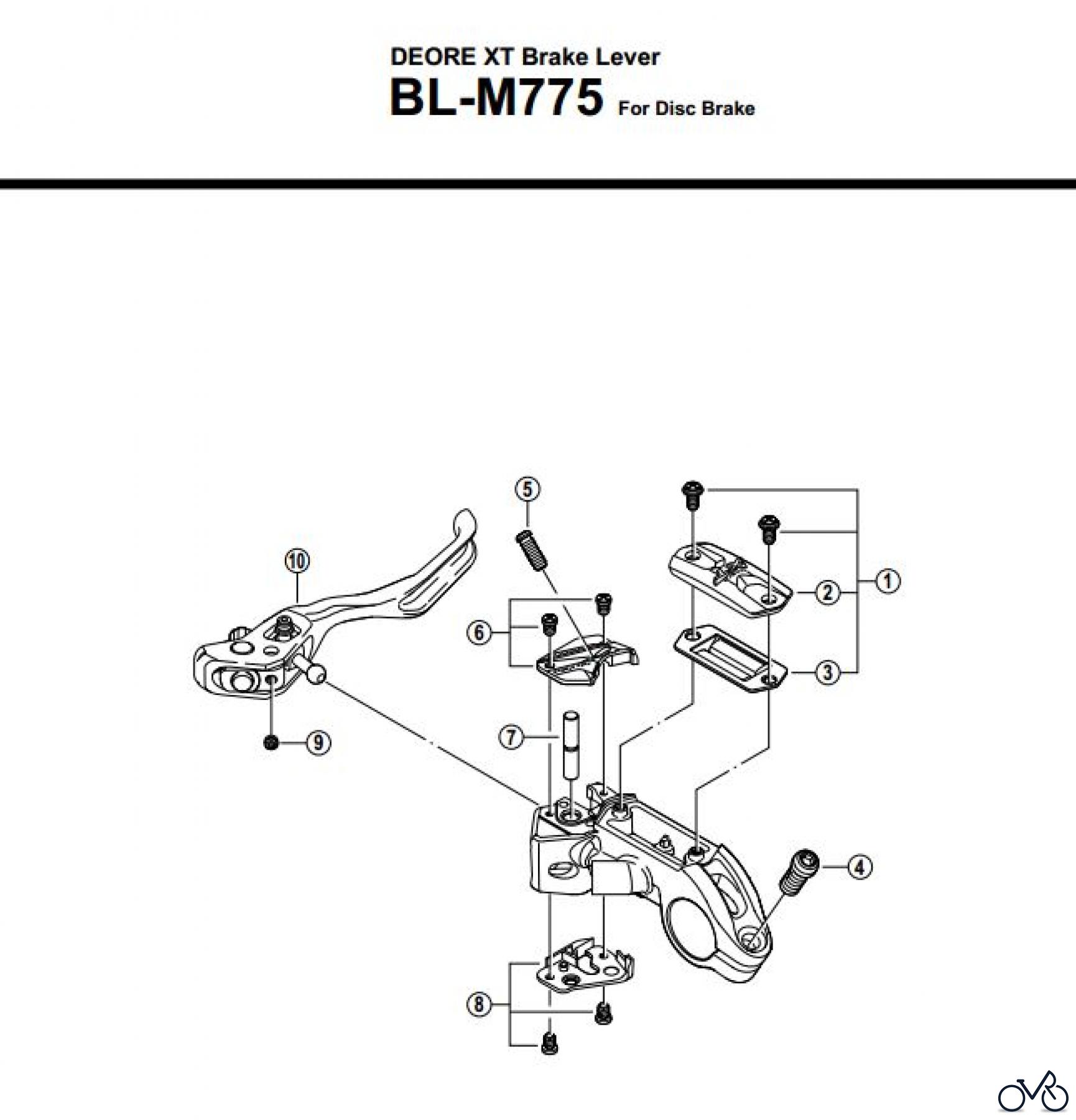

Here you will find the spare parts drawing for Shimano BL Brake Lever - Bremshebel BL-M775-XT. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-8U998010	Lid Unit Y8U998010
2	Y-8U908000	Lid Y8U908000
3	Y-8U913000	Diaphragm Y8U913000
4	Y-8U914000	Clamp Bolt (M6 x 14.8) Y8U914000
5	Y-8U916000	Stroke Adjust Screw (M4 x 12) Y8U916000
6	Y-8U998020	R.H. Top Cam Cover & Fixing Screws (M3 x 5) Y8U998020
6	Y-8U998030	L.H. Top Cam Cover & Fixing Screws (M3 x 5) Y8U998030
7	Y-8U904000	Lever Axle Y8U904000
8	Y-8U998040	R.H. Bottom Cam Cover & Fixing Screws (M3 x 5) Y8U998040
8	Y-8U998050	L.H. Bottom Cam Cover & Fixing Screws (M3 x 5) Y8U998050
9	Y-8SZ07000	Lever Axle Fixing Bolt Y8SZ07000
10	Y-8U998060	Lever Unit Y8U998060
