Shimano BL-M525-EV

BL-M525-EV BL Brake Lever - Bremshebel

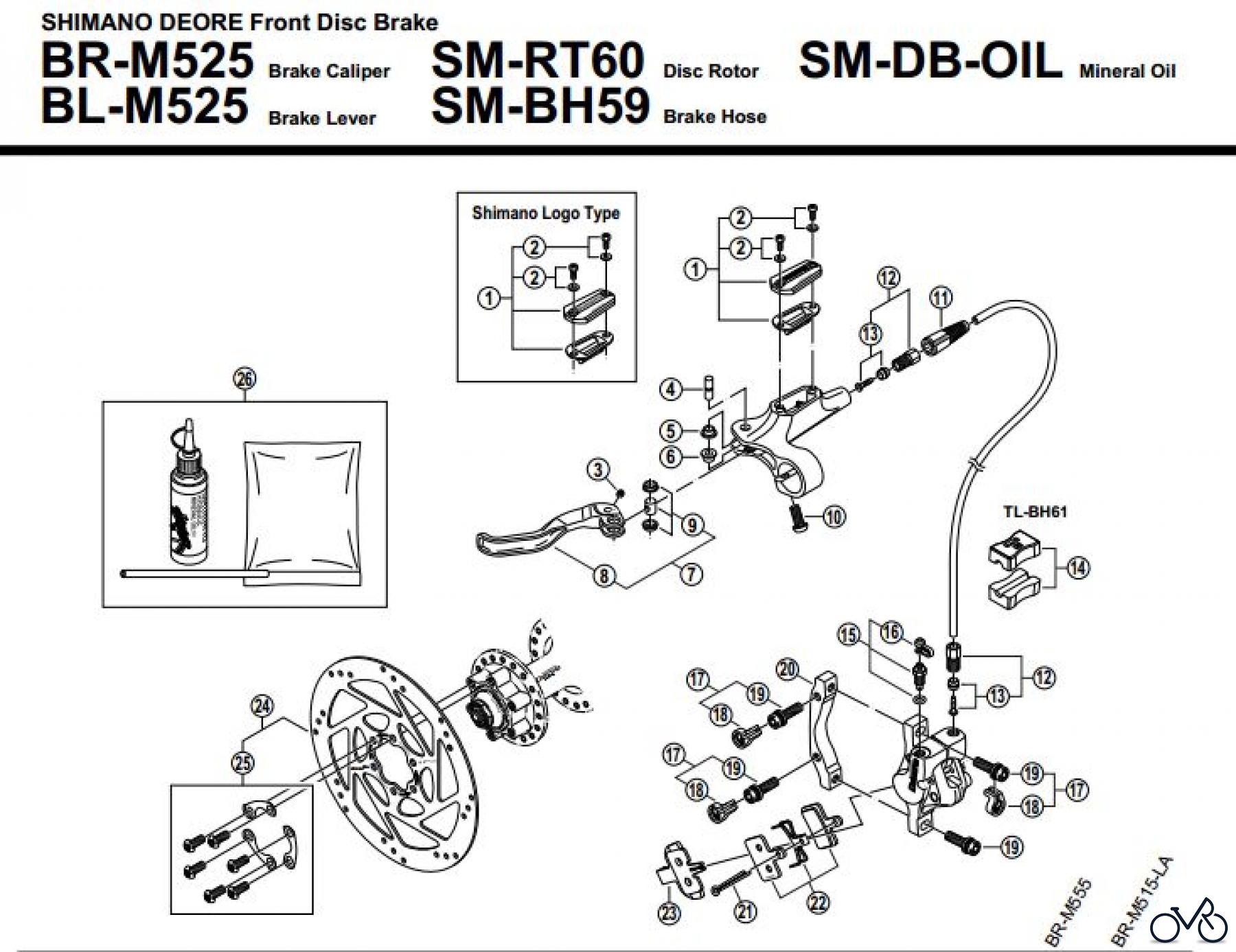

Here you will find the spare parts drawing for Shimano BL Brake Lever - Bremshebel BL-M525-EV. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-8S498010	L.H. Lid Unit Y8S498010
1	Y-8S498020	L.H. Lid Unit (Shimano Logo Type) Y8S498020
2	Y-8SZ98020	Lid Fixing Screw (M3 x 8) & Washer Y8SZ98020
3	Y-8SZ07000	Lever Axle Fixing Bolt Y8SZ07000
4	Y-8SZ06000	Lever Axle Y8SZ06000
5	Y-8SZ03000	Lever Axle Bush A Y8SZ03000
6	Y-8SZ04000	Lever Axle Bush B Y8SZ04000
7	Y-8S498050	Lever Unit Y8S498050
8	Y-8SZ05010	Lever Member Y8SZ05010
9	Y-8S498060	Reach Adjusting Boss & Bush Y8S498060
10	Y-8SB10000	Clamp Bolt (M6 x 14.8) Y8SB10000
11	Y-8H203000	Cover Y8H203000
12	Y-8H298010	Connecting Bolt Unit Y8H298010
13	Y-8H298020	Olive & Connecting Insert Y8H298020
14	Y-8H198030	TL-BH61 Special Tool (2 pcs.) Y8H198030
15	Y-8C598010	Bleed Nipple Unit Y8C598010
16	Y-8B214000	Bleed Nipple Cap Y8B214000
17	Y-8C498010	Adapter Fixing Bolt (M6 x 20) & Stop Ring Y8C498010
18	Y-8C511000	Stop Ring Y8C511000
19	Y-8C509000	Adapter Fixing Bolt (M6 x 20) Y8C509000
20	Y-8C508000	Adapter for Front Y8C508000
21	Y-8C505000	Split Pin Y8C505000
22	Y-8C598020	Pad & Spring Y8C598020
23	Y-8C515000	Pad Spacer Y8C515000
24	Y-8HZ98010	Disc Rotor Unit ( 160 mm) Y8HZ98010
25	Y-81898030	Disc Rotor Fixing Bolt & Plate Y81898030
26	Y-83998010	Mineral Oil Bleed Kit (50 ml) Y83998010
