Shimano CS-HG61 Cassette Sprocket (9-Speed)

CS-HG61 Cassette Sprocket (9-Speed) CS Cassette / Zahnkranz

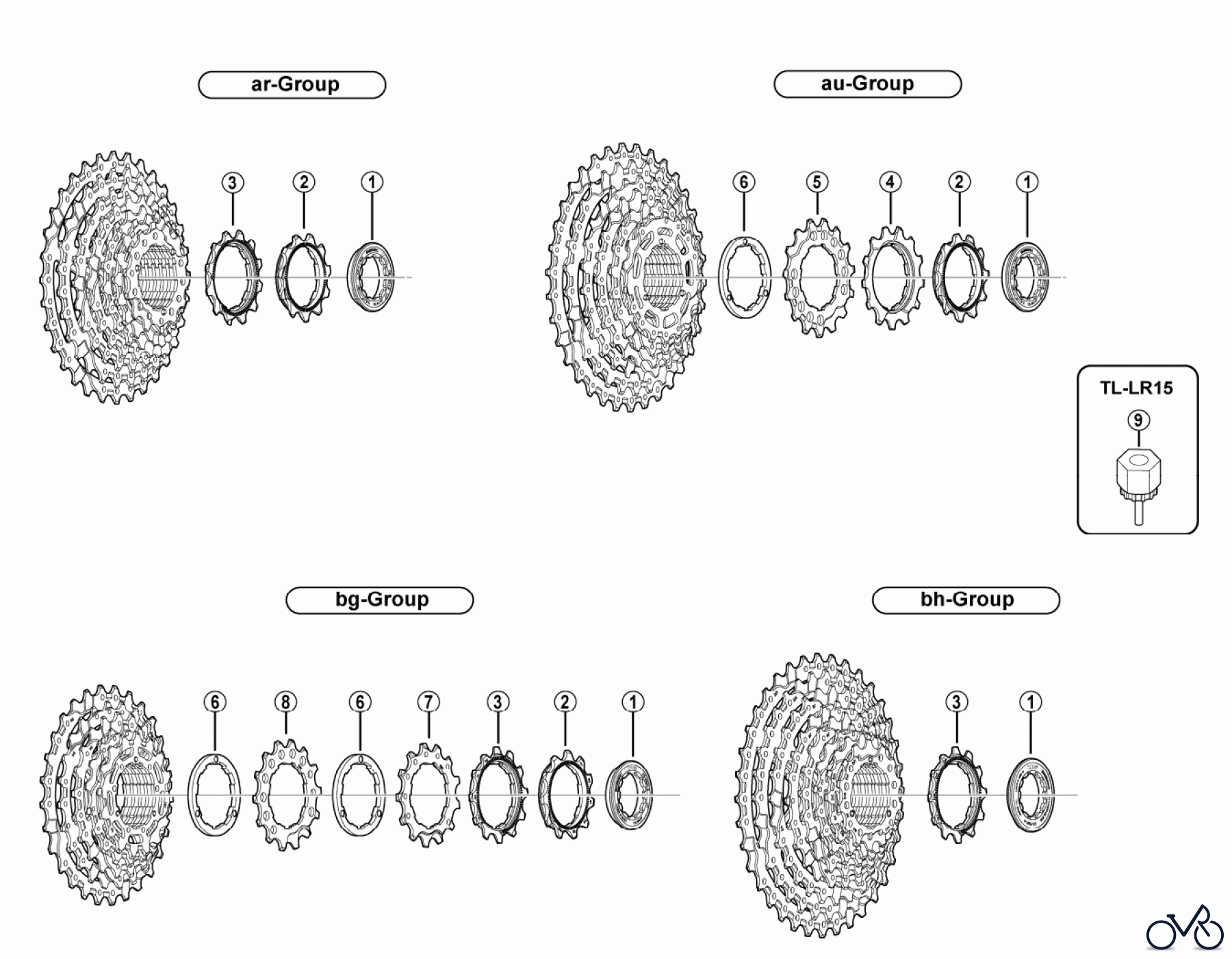

Here you will find the spare parts drawing for Shimano CS Cassette / Zahnkranz CS-HG61 Cassette Sprocket (9-Speed). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-1ZX98010	Lock Ring (with Sticker) for 11T Y1ZX98010
1	Y-1ZX98040	Lock Ring (with Sticker) for 12T Y1ZX98040
2	Y-1ZX1144N	Sprocket Wheel 11T (Built in spacer type) for ar/bg-Group A Y1ZX1144N
2	Y-1ZX1147N	Sprocket Wheel 11T (Built in spacer type) for au-Group A Y1ZX1147N
3	Y-1ZX1244N	Sprocket Wheel 12T (Built in spacer type) for ar/bg-Group A Y1ZX1244N
3	Y-1ZX1268N	Sprocket Wheel 12T (Built in spacer type) for bh-Group Y1ZX1268N
4	Y-1ZX1347N	Sprocket Wheel 13T (Built in spacer type) Y1ZX1347N
5	Y-1ZX1547N	Sprocket Wheel 15T A Y1ZX1547N
6	Y-35764251	Sprocket Spacer (t=2.56 mm) A A Y35764251
7	Y-10R1300N	Sprocket Wheel 13T A Y10R1300N
8	Y-10R1400N	Sprocket Wheel 14T A Y10R1400N
9	Y-12009230	Lock Ring Removal Tool (TL-LR15) Y12009230
