Shimano WH-MT55-F15 Front Wheel

WH-MT55-F15 Front Wheel WH Wheels - Laufräder

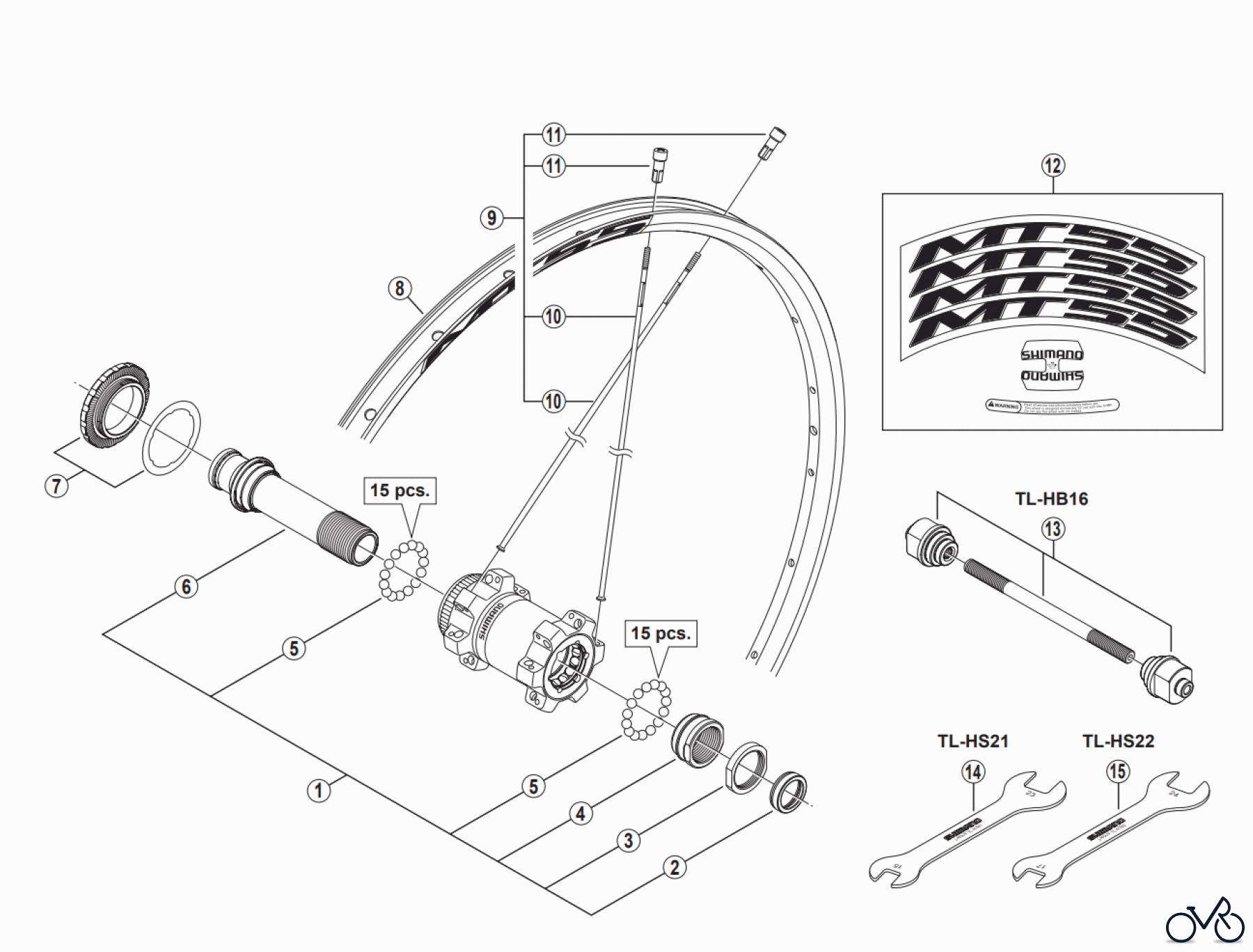

Here you will find the spare parts drawing for Shimano WH Wheels - Laufräder WH-MT55-F15 Front Wheel . Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-4SC98010	Complete Hub Axle A Y4SC98010
2	Y-2TT98020	Right Hand Contact Cap A Y2TT98020
3	Y-2TN09000	Lock Nut (M20) A Y2TN09000
4	Y-2TT08000	Right Hand Cone (M20) A Y2TT08000
5	Y-25U98020	Steel Ball (3/16") 36 pcs. A Y25U98020
6	Y-4SC98020	Hub Axle 98 mm A Y4SC98020
7	Y-26L98030	Lock Ring & Washer A Y26L98030
8	E-WHRIM2TDBC	Rim for WH-MT55 {24H / Black} EWHRIM2TDBC
8	E-WHRIM2TDWC	Rim for WH-MT55-W {24H / White} EWHRIM2TDWC
9	E-WHSPOKE2TA1	Spoke Unit {Spoke (268 mm x 24 pcs.) / Nipple (24 pcs.)} EWHSPOKE2TA1
10	Y-4SDS1000	Spoke (268 mm) Y4SDS1000
11	Y-012Z4075	Nipple Y012Z4075
12	Y-4SD98010	Rim Sticker Unit for WH-MT55 Y4SD98010
12	Y-4SD98020	Rim Sticker Unit for WH-MT55-W Y4SD98020
13	Y-20W98020	TL-HB16 Hub Setting Tool A Y20W98020
14	Y-3C228000	TL-HS21 Hub Spanner (15 mm x 23 mm) A Y3C228000
15	Y-3C227000	TL-HS22 Hub Spanner (17 mm x 24 mm Y3C227000
