Shimano WH-M988-F15 XTR Front Wheel For Disc Brake

WH-M988-F15 XTR Front Wheel For Disc Brake WH Wheels - Laufräder

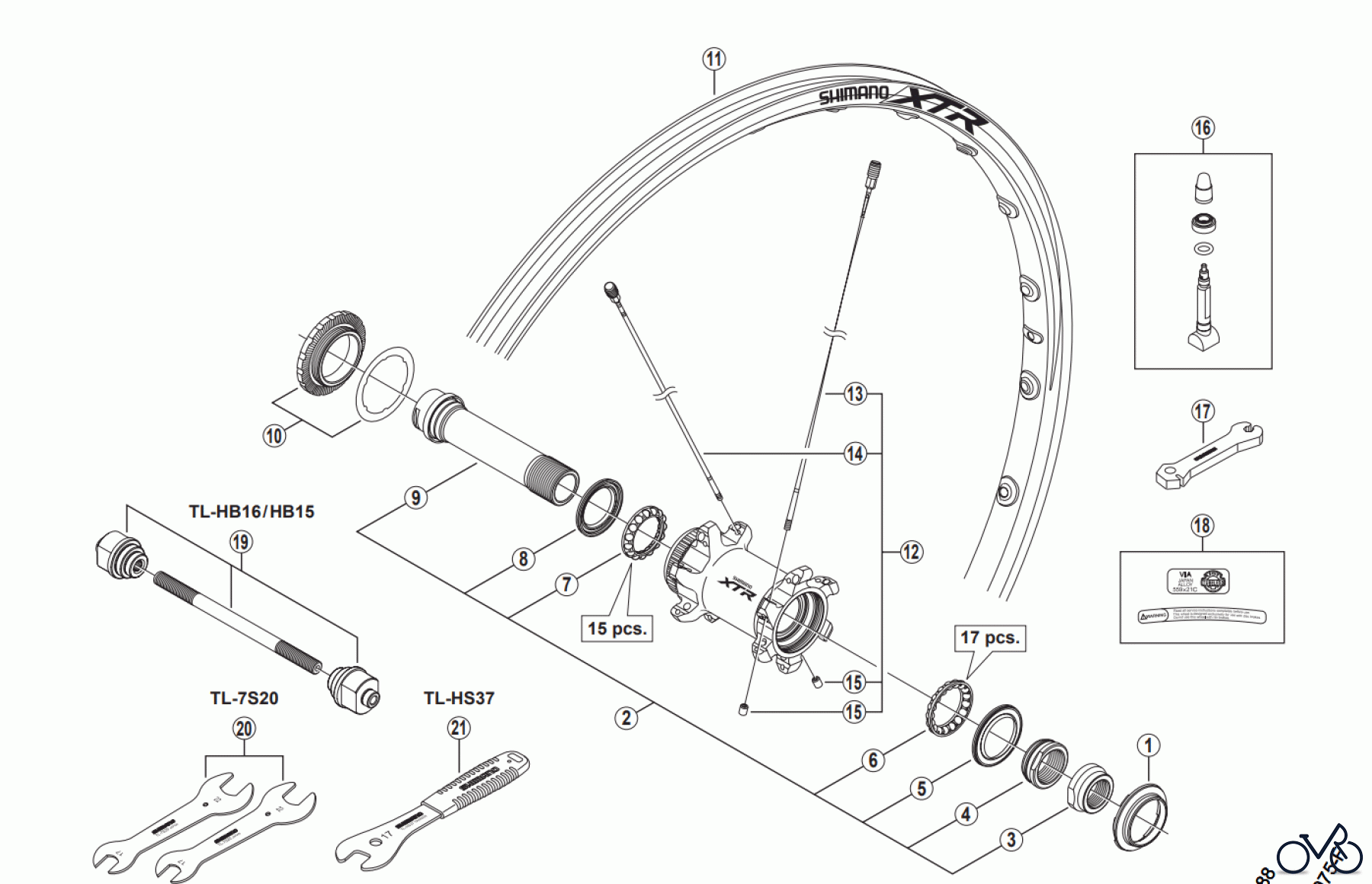

Here you will find the spare parts drawing for Shimano WH Wheels - Laufräder WH-M988-F15 XTR Front Wheel For Disc Brake. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-27X17000	Cap Y27X17000
2	Y-27X98010	Complete Hub Axle Y27X98010
3	Y-27X19000	Right Hand Lock Nut (M19) Y27X19000
4	Y-27X11000	Right Hand Cone (M19) Y27X11000
5	Y-27X15000	Right Hand Seal Ring Y27X15000
6	Y-27X98030	Right Hand Ball Retainer (5/32" x 17) Y27X98030
7	Y-27X98040	Left Hand Ball Retainer (5/32" x 15) Y27X98040
8	Y-27X14000	Left Hand Seal Ring Y27X14000
9	Y-27X98020	Hub Axle Unit Y27X98020
10	Y-27X98050	Lock Ring & Washer Y27X98050
11	I-WHRIM2HDJD	Rim {24H} IWHRIM2HDJD
12	S-poke	Unit {Spoke (269 mm x 12 pcs. & 267 mm x 12 pcs.) / Spoke Plug (24 pcs.) / Washer (24 pcs.) / Hub Nut (24 pcs.)} Spoke
13	Y-4G398010	Right Hand Spoke (269 mm) w/Plug & Washer Y4G398010
14	Y-4G398020	Left Hand Spoke (267 mm) w/Plug & Washer Y4G398020
15	Y-4G308100	Hub Nut Y4G308100
16	Y-4G398030	Valve Unit Y4G398030
17	Y-4CK19000	Spoke Plug Wrench Y4CK19000
18	Y-4G398040	Rim Sticker Unit Y4G398040
19	Y-20W98020	TL-HB16 Hub Setting Tool Y20W98020
19	Y-20W98010	TL-HB15 Hub Setting Tool Y20W98010
20	Y-13098900	TL-7S20 Hub Spanners (17 mm x 22 mm) 2 pcs. Y13098900
21	Y-23098030	TL-HS37 Hub Spanner (17 mm) Y23098030
