Shimano WH-M980-R-29 XTR Rear Wheel (9/10-Speed) For Disc Brake

WH-M980-R-29 XTR Rear Wheel (9/10-Speed) For Disc Brake WH Wheels - Laufräder

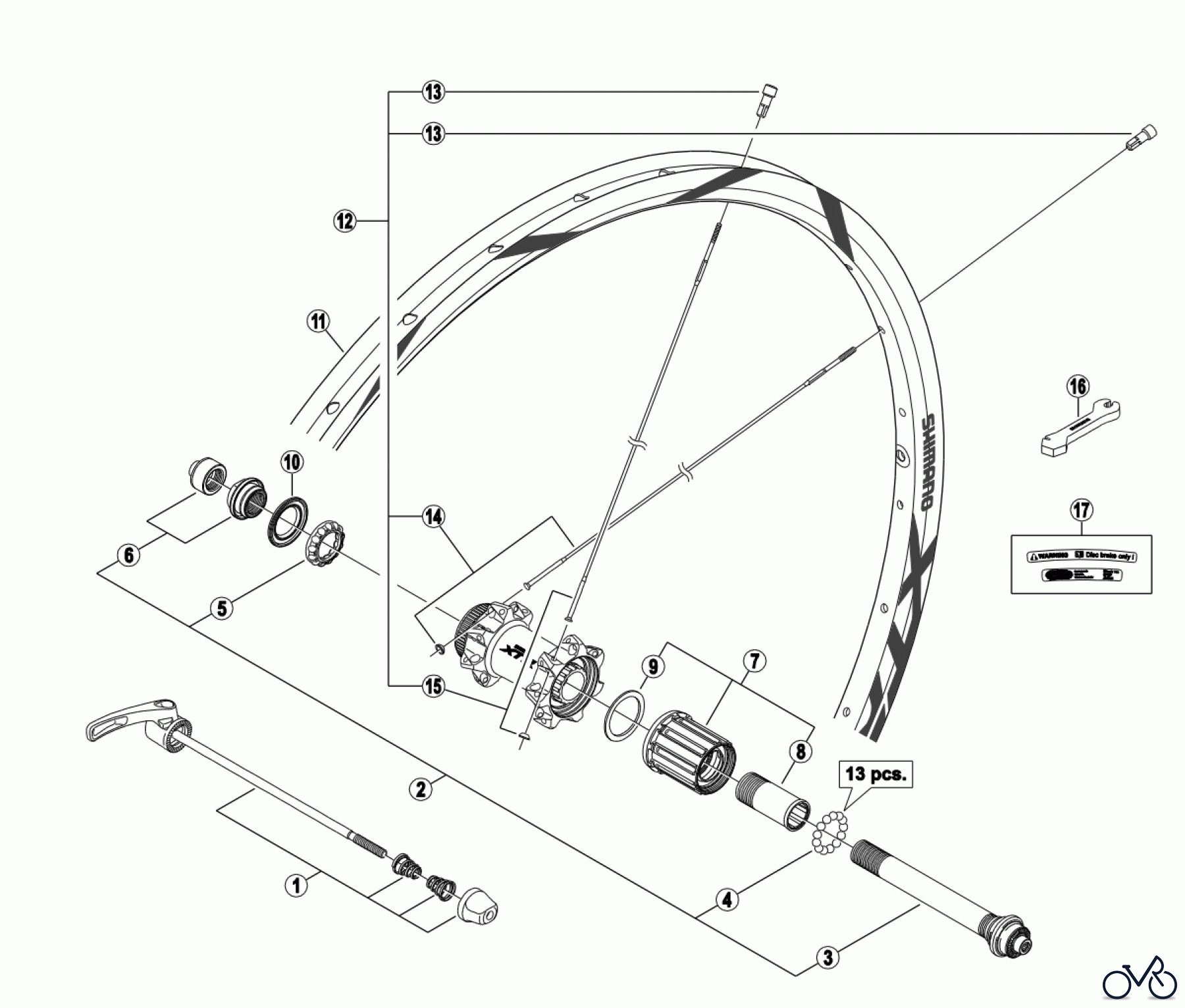

Here you will find the spare parts drawing for Shimano WH Wheels - Laufräder WH-M980-R-29 XTR Rear Wheel (9/10-Speed) For Disc Brake. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-4G498010	Complete Quick Release 168 mm (6-5/8") Y4G498010
1	Y-4G498020	Complete Quick Release 173 mm (6-13/16") Y4G498020
2	Y-3DX98010	Complete Hub Axle Y3DX98010
3	Y-3CN98040	Hub Axle Unit Y3CN98040
4	Y-00091270	Stainless Ball (3/16") 22 pcs. Y00091270
5	Y-25R98080	Ball Retainer (3/16") Y25R98080
6	Y-3DX98020	Left Hand Lock Nut (M14) & Cone (M14) w/Dust Cover Y3DX98020
7	Y-3CN98080	Complete Freewheel Body w/Body Fixing Bolt Y3CN98080
8	Y-3CN17000	Body Fixing Bolt Y3CN17000
9	Y-3CN07000	Freewheel Body Washer Y3CN07000
10	Y-26D10000	Seal Ring Y26D10000
11	--	Rim {28H}
12	--	Spoke Unit {Spoke (295 mm x 14 pcs. & 297 mm x 14 pcs.) / Spherical Washer (28 pcs.) /
13	Y-012Z4078	Nipple Y012Z4078
14	Y-44898010	Left Hand Spoke (297 mm) w/Spherical Washer Y44898010
15	Y-44898020	Right Hand Spoke (295 mm) w/Spherical Washer Y44898020
16	Y-4EF28000	Nipple Wrench 4.0 Y4EF28000
17	Y-44898030	Rim Sticker Unit Y44898030
