Shimano FH-M5100 DEORE FREEHUB (11/10/9/8-Speed)

FH-M5100 DEORE FREEHUB (11/10/9/8-Speed) FH Free Hub - Freilaufnabe

Shimano FH Free Hub - Freilaufnabe FH-M5100 DEORE FREEHUB (11/10/9/8-Speed)

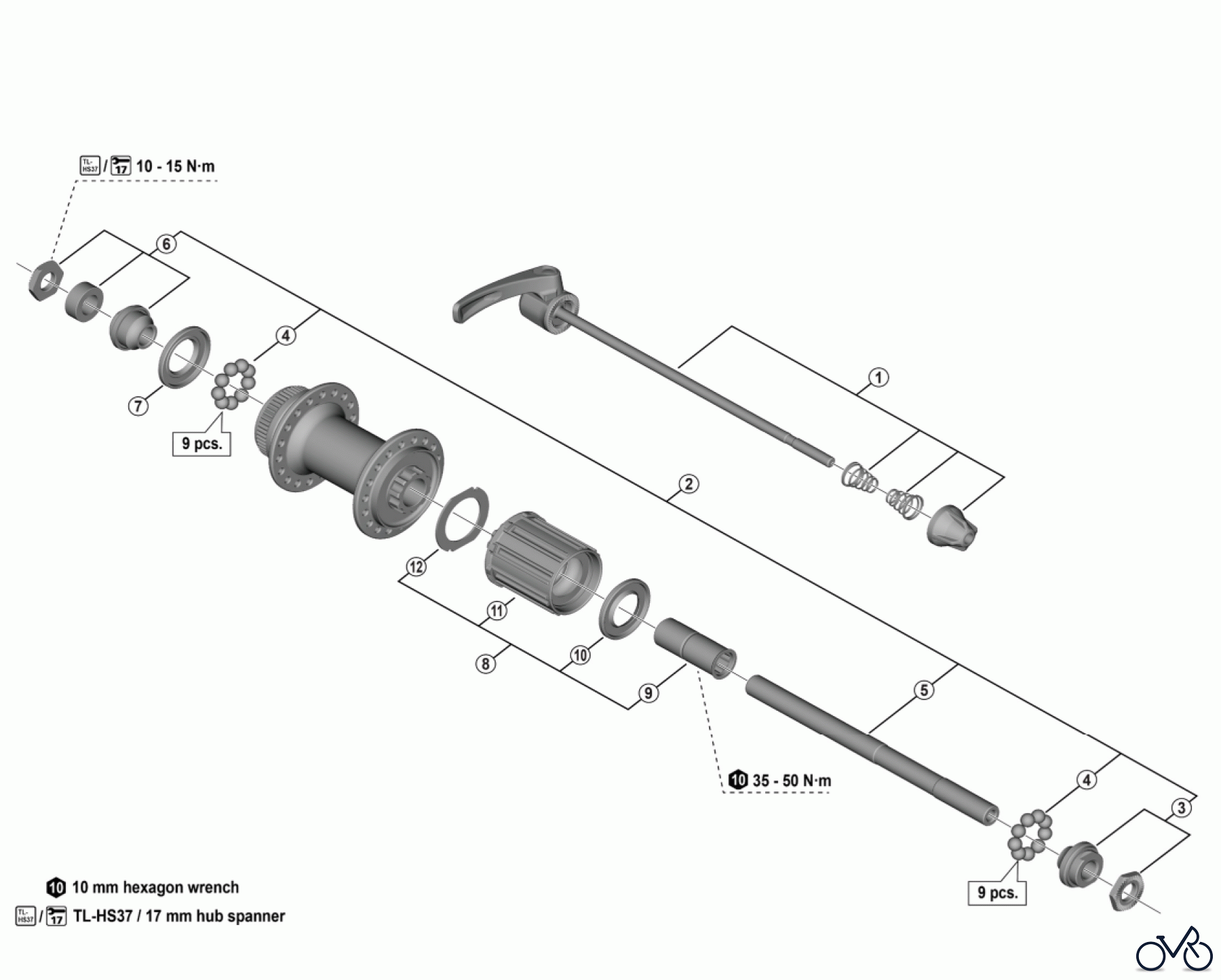

Here you will find the spare parts drawing for Shimano FH Free Hub - Freilaufnabe FH-M5100 DEORE FREEHUB (11/10/9/8-Speed). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-30T98010 Complete quick release 168 mm Y30T98010
1 Shimano Complete quick release 173 mm Y-30T98020 Complete quick release 173 mm Y30T98020
2 Shimano Complete hub axle 146 mm Y-3SW98010 Complete hub axle 146 mm Y3SW98010
3 Shimano Right-hand lock nut unit Y-3SP98090 Right-hand lock nut unit Y3SP98090
4 Shimano Steel ball (1/4") 18 pcs. Y-00091310 Steel ball (1/4") 18 pcs. Y00091310
5 Shimano Hub axle M10 x 146 mm Y-30K01200 Hub axle M10 x 146 mm Y30K01200
6 Shimano Left-hand lock nut unit Y-3SW98030 Left-hand lock nut unit Y3SW98030
7 Shimano Left-hand seal ring Y-3CR09000 Left-hand seal ring Y3CR09000
8 Shimano Complete freewheel body Y-3SW98050 Complete freewheel body Y3SW98050
9 Shimano Body fixing screw Y-3BL03000 Body fixing screw Y3BL03000
10 Shimano Right-hand seal ring Y-3CR08000 Right-hand seal ring Y3CR08000
11 Y-3SW98060 Freewheel body unit Y3SW98060
12 Shimano Freewheel body spacerY-3AN10000 Freewheel body spacer Y3AN10000
