Shimano HB-M5100 DEORE Front Hub

HB-M5100 DEORE Front Hub HB Hub - Vordere Nabe

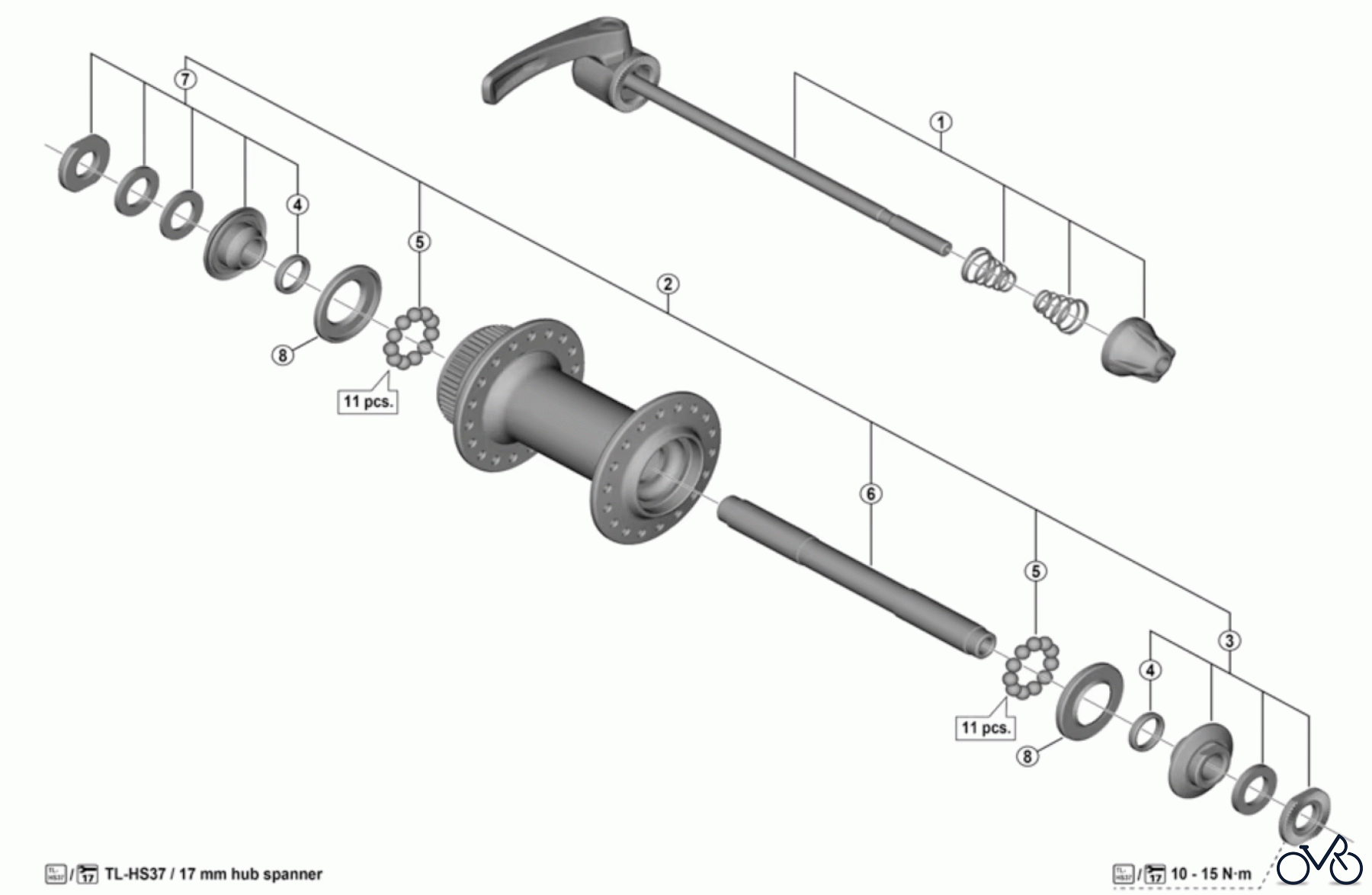

Here you will find the spare parts drawing for Shimano HB Hub - Vordere Nabe HB-M5100 DEORE Front Hub. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-24998010	Complete quick release 133 mm Y24998010
2	Y-2TS98010	Complete hub axle 108 mm Y2TS98010
3	Y-2TS98020	Right-hand lock nut unit Y2TS98020
4	Y-2T804000	O-ring Y2T804000
5	Y-4BB98030	Steel ball (3/16") 22 pcs. Y4BB98030
6	Y-21S02000	Hub axle M10 x 108 mm Y21S02000
7	Y-2TS98030	Left-hand lock nut unit Y2TS98030
8	Y-2TA06000	Seal ring Y2TA06000
