Shimano FH-TC500-MS FH-TC500-MS-B 12-speed FH-TC500-HM FH-TC500-HM-B 11/10/9/8-speed FH-TC500-HL 12/11-speed

FH-TC500-MS FH-TC500-MS-B 12-speed FH-TC500-HM FH-TC500-HM-B 11/10/9/8-speed FH-TC500-HL 12/11-speed FH Free Hub - Freilaufnabe

Shimano FH Free Hub - Freilaufnabe FH-TC500-MS FH-TC500-MS-B 12-speed FH-TC500-HM FH-TC500-HM-B 11/10/9/8-speed FH-TC500-HL 12/11-speed

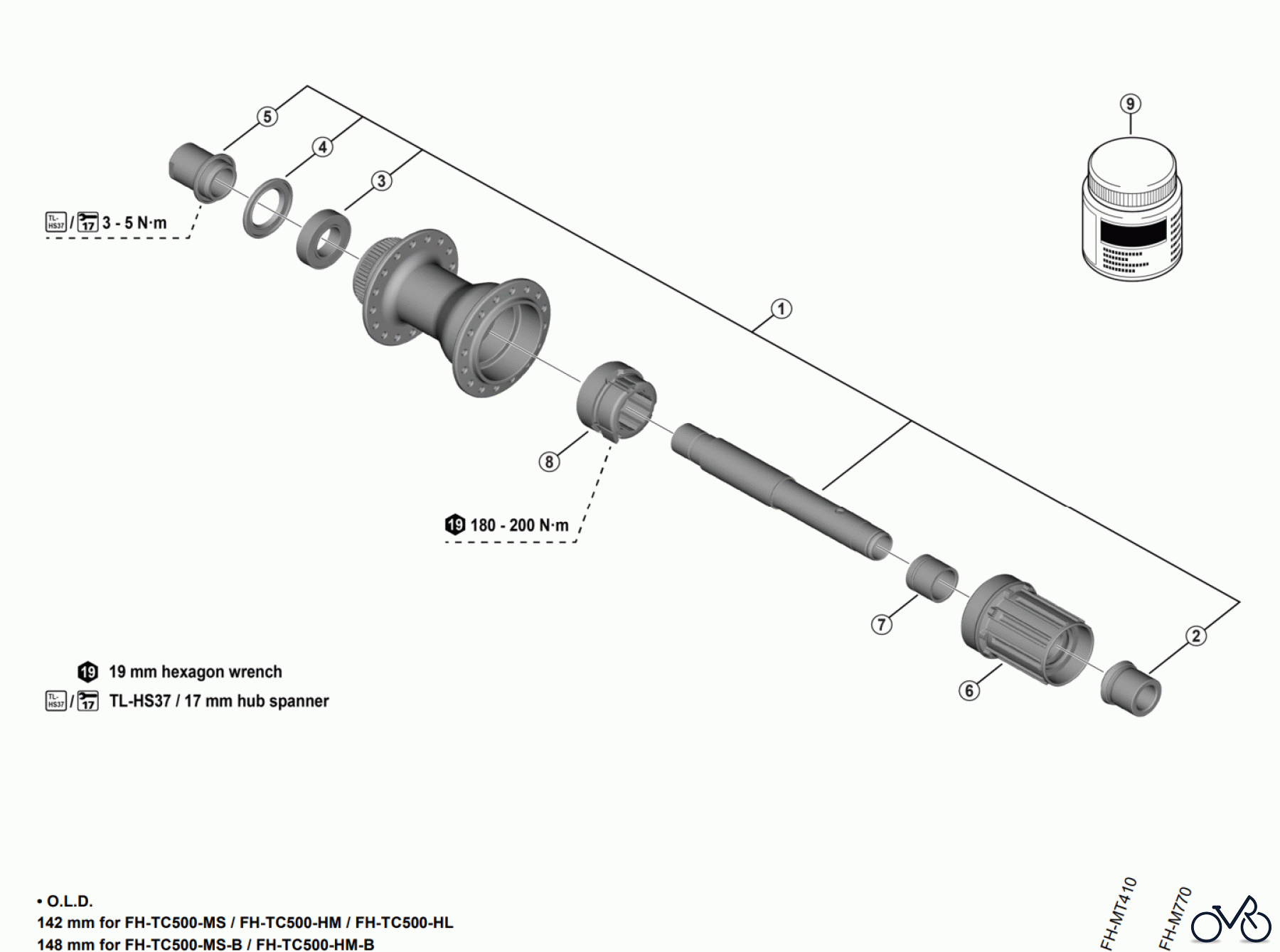

Here you will find the spare parts drawing for Shimano FH Free Hub - Freilaufnabe FH-TC500-MS FH-TC500-MS-B 12-speed FH-TC500-HM FH-TC500-HM-B 11/10/9/8-speed FH-TC500-HL 12/11-speed. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-3JW98010 Complete hub axle for FH-TC500-MS / FH-TC500-HM Y3JW98010
1 Y-3JV98010 Complete hub axle for FH-TC500-MS-B / FH-TC500-HM-B Y3JV98010
1 Y-3KJ98010 Complete hub axle for FH-TC500-HL Y3KJ98010
2 Shimano Right cap for FH-TC500-MS / FH-TC500-HM / FH-TC500-MS-B / FH-TC500-HM-B Y-3HV98020 Right cap for FH-TC500-MS / FH-TC500-HM / FH-TC500-MS-B / FH-TC500-HM-B Y3HV98020
2 Y-3KJ98020 Right cap for FH-TC500-HL Y3KJ98020
3 Y-3JV9801T Sealed cartridge bearing (15 x 28 x 7) Y3JV9801T
4 Shimano Seal ring Y-26D10000 Seal ring Y26D10000
5 Y-3JV98020 Left-hand lock nut Y3JV98020
6 Y-3JV98030 Freewheel body unit (MICRO SPLINE) Y3JV98030
6 Y-3JZ98010 Freewheel body unit (HG spline M) Y3JZ98010
6 Y-3KJ98030 Freewheel body unit (HG spline L) Y3KJ98030
7 Y-3JV9802T Bush Y3JV9802T
8 Y-3JV98040 Inner unit with bearing Y3JV98040
9 Y-3B980000 Grease for freehub 50 g Y3B980000
