Shimano FH-QC500-MS FH-QC500-MS-B 12-speed

FH-QC500-MS FH-QC500-MS-B 12-speed FH Free Hub - Freilaufnabe

Shimano FH Free Hub - Freilaufnabe FH-QC500-MS FH-QC500-MS-B 12-speed

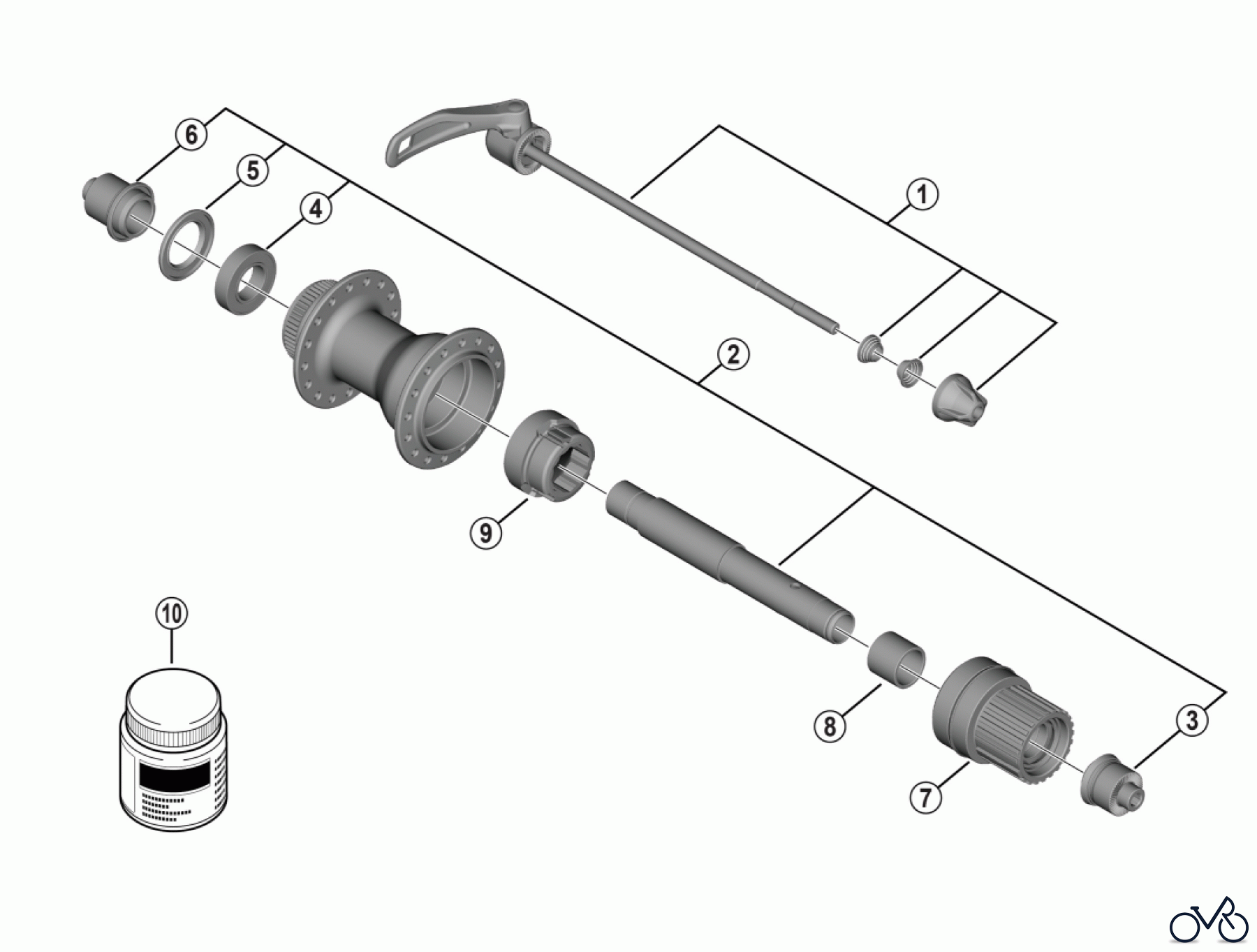

Here you will find the spare parts drawing for Shimano FH Free Hub - Freilaufnabe FH-QC500-MS FH-QC500-MS-B 12-speed. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-4SK98120 Complete quick release 168 mm Y4SK98120
1 Y-31H98010 Complete quick release 173 mm Y31H98010
1 Y-3HW98010 Complete quick release 174 mm Y3HW98010
1 Shimano Complete quick release 178 mm Y-3GC98040 Complete quick release 178 mm Y3GC98040
2 Y-3JY98010 Complete hub axle for FH-QC500-MS Y3JY98010
2 Y-3JX98010 Complete hub axle for FH-QC500-MS-B Y3JX98010
3 Shimano Right cap Y-3HW98030 Right cap Y3HW98030
4 Y-3JV9801T Sealed cartridge bearing (15 x 28 x 7) Y3JV9801T
5 Shimano Seal ring Y-26D10000 Seal ring Y26D10000
6 Y-3JX98020 Left-hand lock nut Y3JX98020
7 Y-3JV98030 Freewheel body unit (MICRO SPLINE) Y3JV98030
8 Y-3JV9802T Bush Y3JV9802T
9 Y-3JV98040 Inner unit Y3JV98040
10 Y-3B980000 Grease for freehub 50 g Y3B980000
