Shimano RD-U6020, RD-U4020, RD-U3020 CUES Rear Derailleur

RD-U6020, RD-U4020, RD-U3020 CUES Rear Derailleur RD Rear Derailleur - Schaltwerk

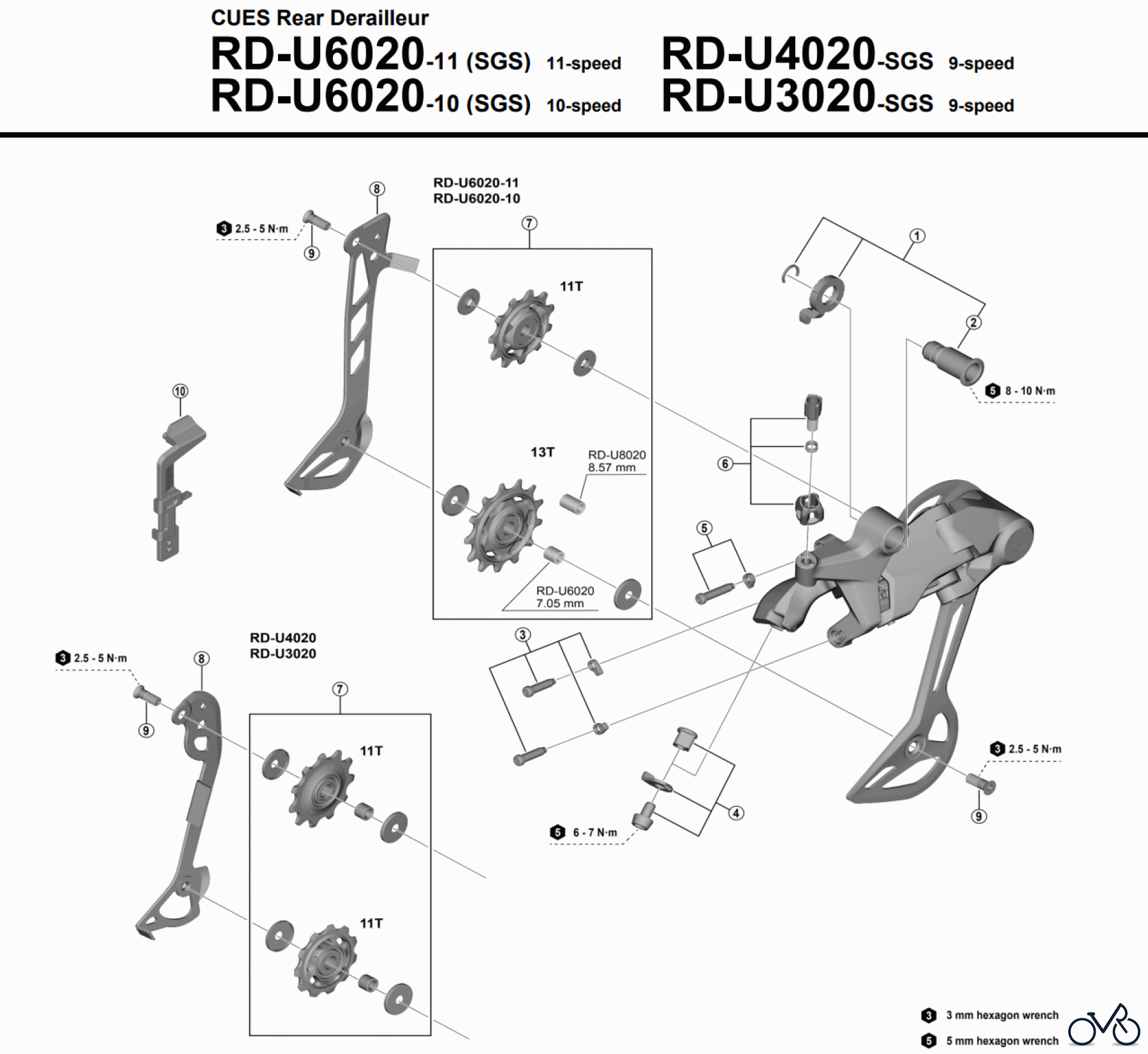

Here you will find the spare parts drawing for Shimano RD Rear Derailleur - Schaltwerk RD-U6020, RD-U4020, RD-U3020 CUES Rear Derailleur. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-3JE98020	Mounting screw unit (used for RD-U8020) Y3JE98020
2	Y-3JE9801T	Mounting screw (used for RD-U8020) Y3JE9801T
3	Y-3JE98050	Stroke adjusting screws and plates (used for RD-U8020) Y3JE98050
4	Y-3JE98060	Cable fixing bolt unit (used for RD-U8020) Y3JE98060
5	Y-3JH98010	End adjust screw (M4 x 18) and plate (used for RD-U6020) Y3JH98010
6	Y-3JD98070	Cable adjustment barrel unit (used for RD-U8020) Y3JD98070
7	Y-3JE98010	Tension and guide pulley set for RD-U6020-11 / RD-U6020-10 (used for RD-U8020) Y3JE98010
7	Y-3JK98010	Tension and guide pulley set for RD-U4020 / RD-U3020 Y3JK98010
8	Y-3JE9804T	Inner plate (SGS) for RD-U6020-11 (used for RD-U8020) Y3JE9804T
8	Y-3JJ9801T	Inner plate (SGS) for RD-U6020-10 Y3JJ9801T
8	Y-3JK9801T	Inner plate (SGS) for RD-U4020 / RD-U3020 Y3JK9801T
9	Y-3HM98080	Pulley screw (2 pcs.) Y3HM98080
10	Y-07A98020	TL-RD200 G-pulley setting too Y07A98020
