Shimano BL-U8000 SHIMANO CUES Bremshebel (Hydraulische Scheibenbremse)

BL-U8000 SHIMANO CUES Bremshebel (Hydraulische Scheibenbremse) BL Brake Lever - Bremshebel

Shimano BL Brake Lever - Bremshebel BL-U8000 SHIMANO CUES Bremshebel (Hydraulische Scheibenbremse)

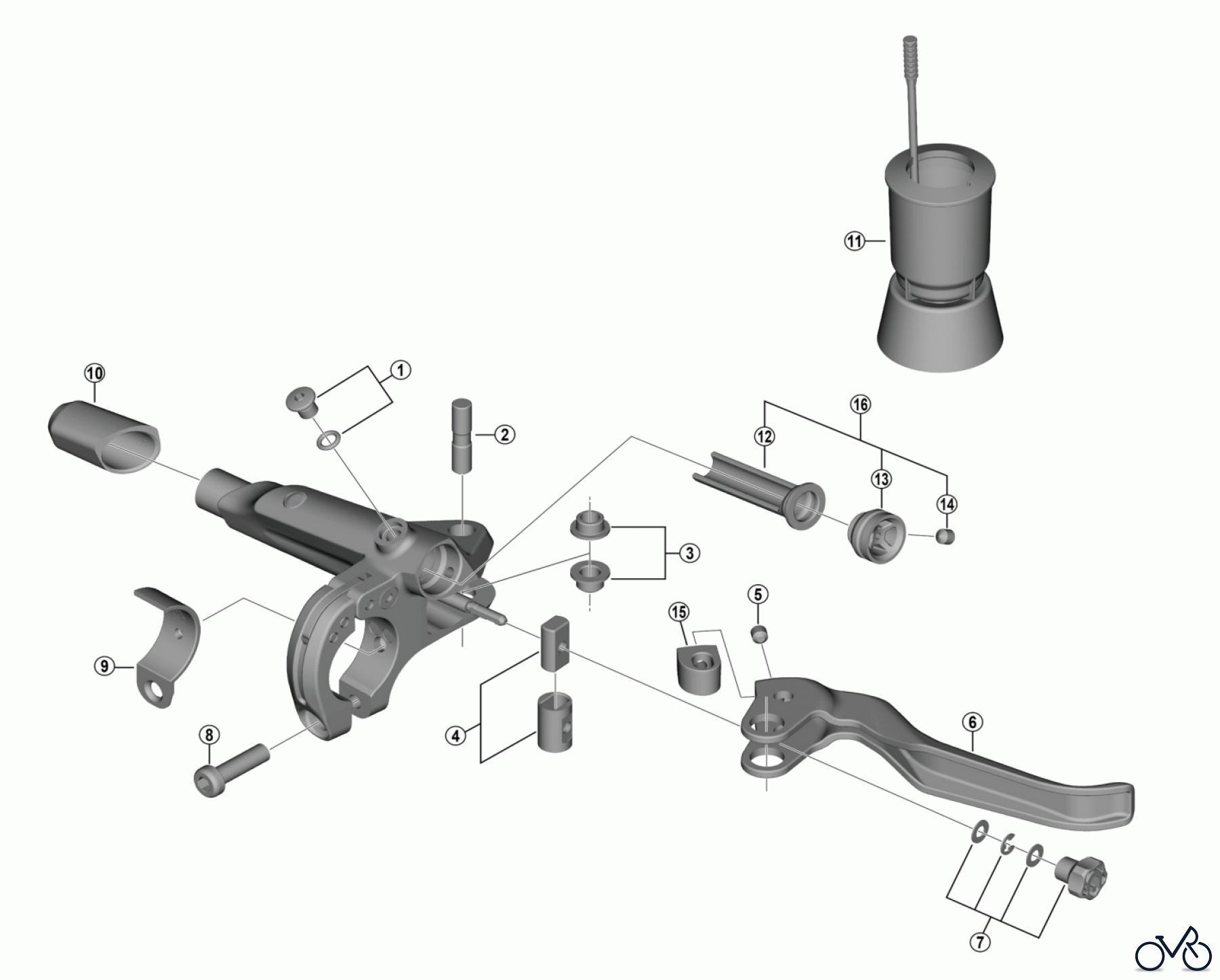

Here you will find the spare parts drawing for Shimano BL Brake Lever - Bremshebel BL-U8000 SHIMANO CUES Bremshebel (Hydraulische Scheibenbremse). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Shimano Bleed screw (M5 x 4.7) and O-ring Y-8V398010 Bleed screw (M5 x 4.7) and O-ring Y8V398010
2 Y-8VD05000 Lever axle (diameter 5 mm) Y8VD05000
3 Y-8UW98060 Lever axle bush A and Y8UW98060
4 Shimano Adjust boss and sleeve Y-8VD98010 Adjust boss and sleeve Y8VD98010
5 Y-8SZ07000 Lever axle fixing screw Y8SZ07000
6 Y-2R09804T Lever member Y2R09804T
7 Y-2R098010 Reach adjust grip unit Y2R098010
8 Shimano Mounting screw Y-8WS05000 Mounting screw Y8WS05000
9 Shimano BL Band adapter Y-8WM05000 BL Band adapter Y8WM05000
10 Y-2R09801T R.H. Cover Y2R09801T
10 Y-2R09802T L.H. Cover Y2R09802T
11 Shimano TL-BR003 Funnel unit for M5 screw Y-13000100 TL-BR003 Funnel unit for M5 screw Y13000100
12 Y-1XK9801T Diaphragm Y1XK9801T
13 Y-2R09803T Cap Y2R09803T
14 Y-88414000 Fixing screw Y88414000
15 Y-2R09805T Lever member spacer Y2R09805T
16 Y-2R098020 Diaphragm unit Y2R098020
