Shimano FD-R7100 105 Umwerfer

FD-R7100 Shimano 105 Umwerfer FD Front Derailleur - Umwerfer

(2x12-speed)
Shimano FD Front Derailleur - Umwerfer FD-R7100 Shimano 105 Umwerfer

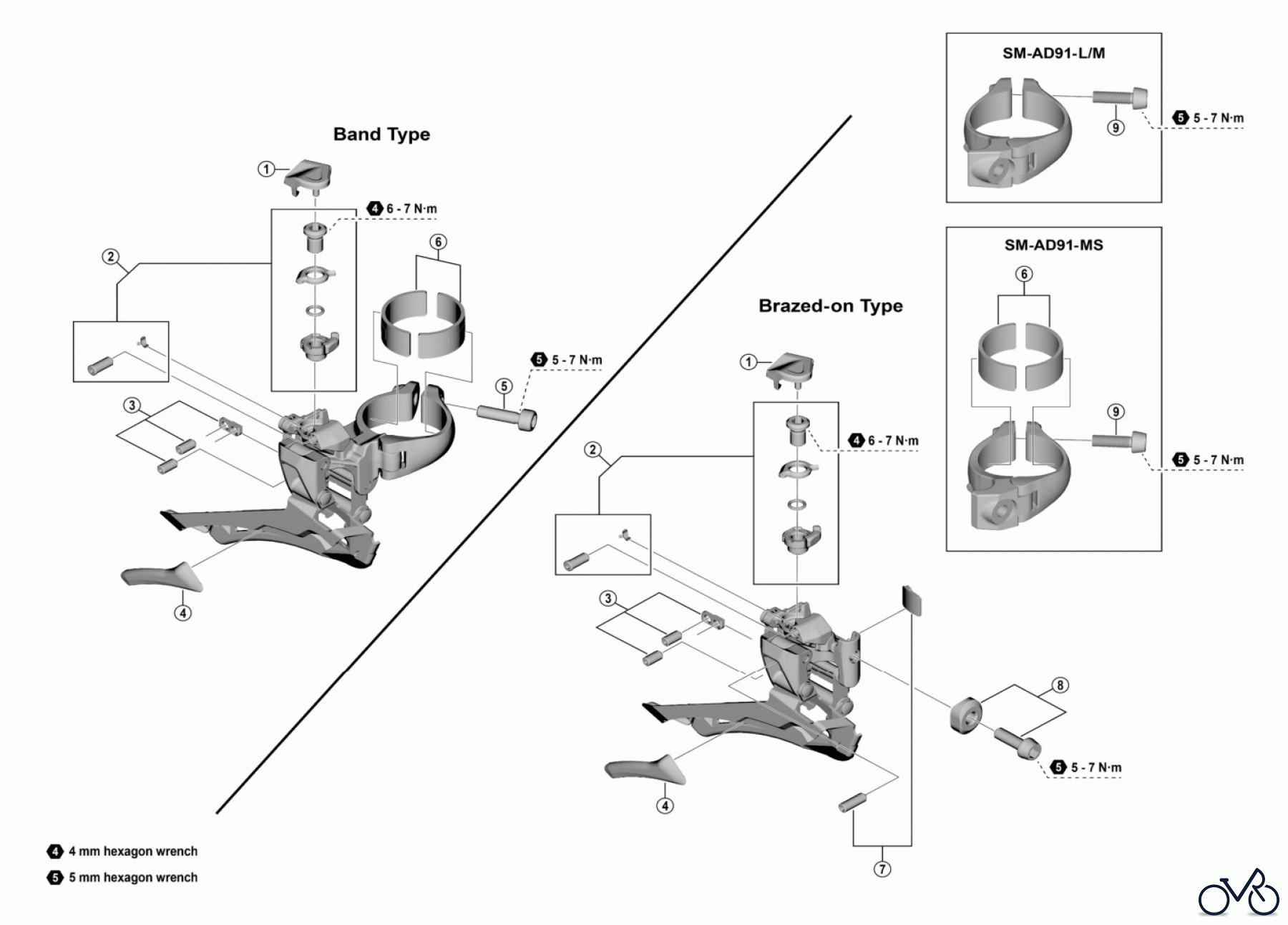

Here you will find the spare parts drawing for Shimano FD Front Derailleur - Umwerfer FD-R7100 Shimano 105 Umwerfer. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Shimano Link cover Y-5ZS22000 Link cover Y5ZS22000
2 Shimano Cable fixing screw unit and cable adjust screw unit Y-2C098010 Cable fixing screw unit and cable adjust screw unit Y2C098010
3 Shimano Adjust screws and plate Y-2ES98010 Adjust screws and plate Y2ES98010
4 Shimano Inner skid plate Y-2BA12000 Inner skid plate Y2BA12000
5 Y-5BG07900 Mounting screw (M5 x 17.5) Y5BG07900
6 Y-5P198030 Clamp band adapter unit for S-size / diameter 28.6 mm Y5P198030
7 Y-2C098030 Support screw and plate Y2C098030
8 Y-5P898010 Mounting screw (M5 x 15) and radius washer Y5P898010
9 Y-5ZS39000 Mounting screw (M5 x 17) Y5ZS39000
