Shimano ST-R7120 SHIMANO 105 CONTROL LEVER (For Disc Brake)

ST-R7120 SHIMANO 105 CONTROL LEVER (For Disc Brake) ST Rapidfire- Schaltbremshebel

(2x12-speed)

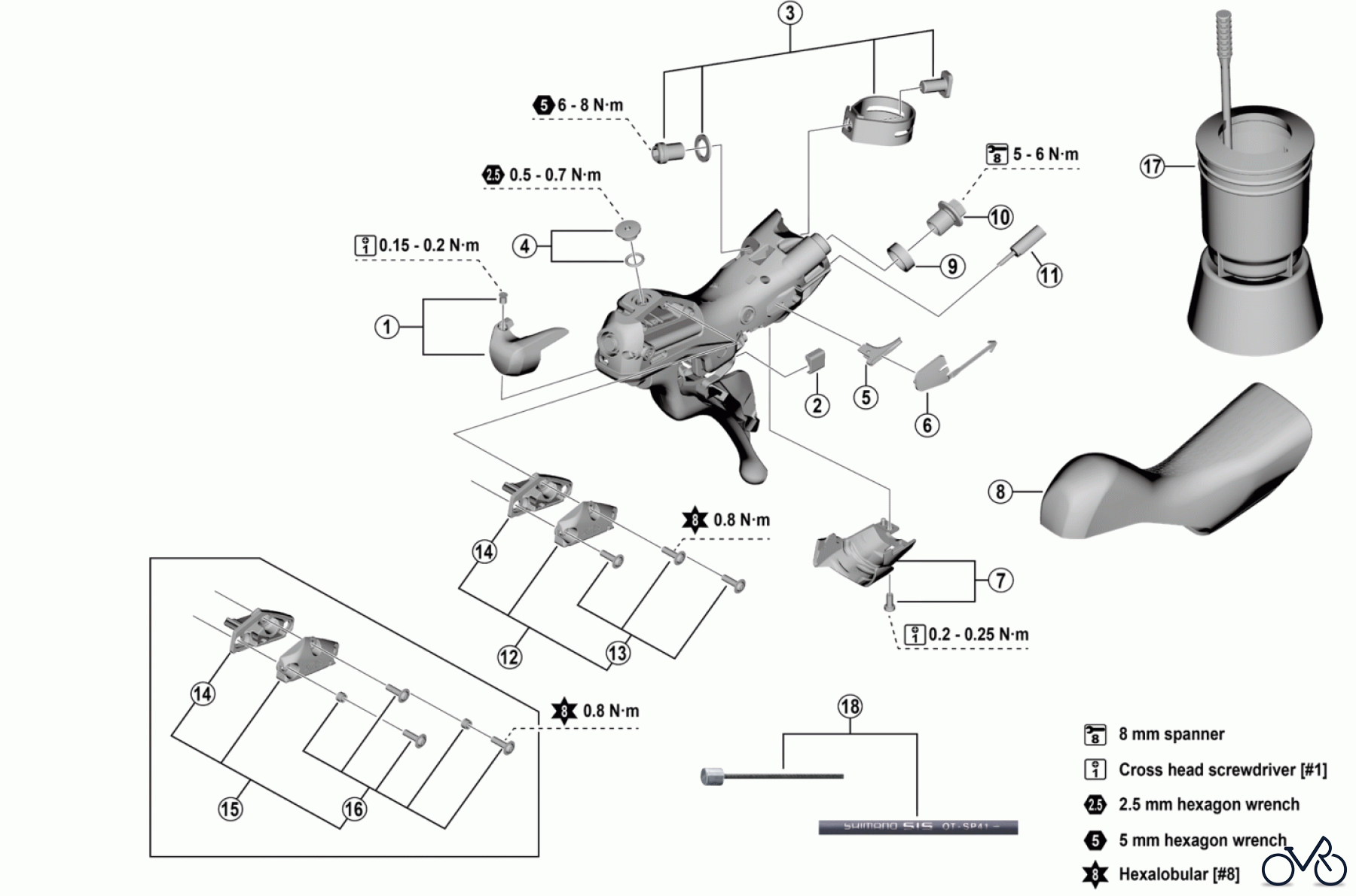

Here you will find the spare parts drawing for Shimano ST Rapidfire- Schaltbremshebel ST-R7120 SHIMANO 105 CONTROL LEVER (For Disc Brake). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-0F398020	Name plate R and fixing screw Y0F398020
1	Y-0F498010	Name plate L and fixing screw Y0F498010
2	Y-63X80000	Main lever support R Y63X80000
2	Y-63X80010	Main lever support L Y63X80010
3	Y-0E098030	Clamp band unit diameter (23.8 - 24.2 mm) Y0E098030
4	Y-0F398030	Bleed screw and O-ring Y0F398030
5	Y-0RY9801T	SL cable guide R Y0RY9801T
5	Y-07V75000	SL cable guide L Y07V75000
6	Y-00E75000	SL cable cover R Y00E75000
6	Y-0C574000	SL cable cover L Y0C574000
7	Y-0F398040	Unit cover R and fixing screw Y0F398040
7	Y-0F498020	Unit cover L and fixing screw Y0F498020
8	Y-0F398010	Bracket covers (pair) Y0F398010
9	Y-0RM9801T	Right-hand joint support ring Y0RM9801T
9	Y-0C514000	Left-hand joint support ring Y0C514000
10	Y-8RD02000	Flange flare nut (M9/black) Y8RD02000
11	Y-63Z27000	Outer cap with short tongue for ST Y63Z27000
12	Y-0SD98010	Right-hand lid unit for bracket with bosses Y0SD98010
12	Y-0SE98010	Left-hand lid unit for bracket with bosses Y0SE98010
13	Y-0SD98020	Lid fixing screw (3 pcs.) for bracket with bosses Y0SD98020
14	Y-0C678000	Diaphragm R Y0C678000
14	Y-0C578000	Diaphragm L Y0C578000
15	Y-0C598030	Left-hand lid unit for bracket without bosses Y0C598030
16	Y-0C698070	Lid fixing screw (3 pcs.) and lid spacer (2 pcs.) for bracket without bosses Y0C698070
17	Y-13000090	TL-BR002 Funnel unit for M7 screw Y13000090
18	Y-8ZG98090	OT-SP41 OPTISLICK shift cable sets black (OT-RS900 is included) Y8ZG98090
18	Y-8ZG98100	OT-SP41 OPTISLICK shift cable sets white (OT-RS900 is included) Y8ZG98100
18	Y-8ZG98110	OT-SP41 OPTISLICK shift cable sets red (OT-RS900 is included) Y8ZG98110
Y8ZG98120	O-T-SP41	OPTISLICK shift cable sets high-tech gray (OT-RS900 is included) OTSP41
