Shimano FC-RX820 GRX Crankset

FC-RX820 GRX Crankset FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt

FC-RX820-1, FC-RX820-2

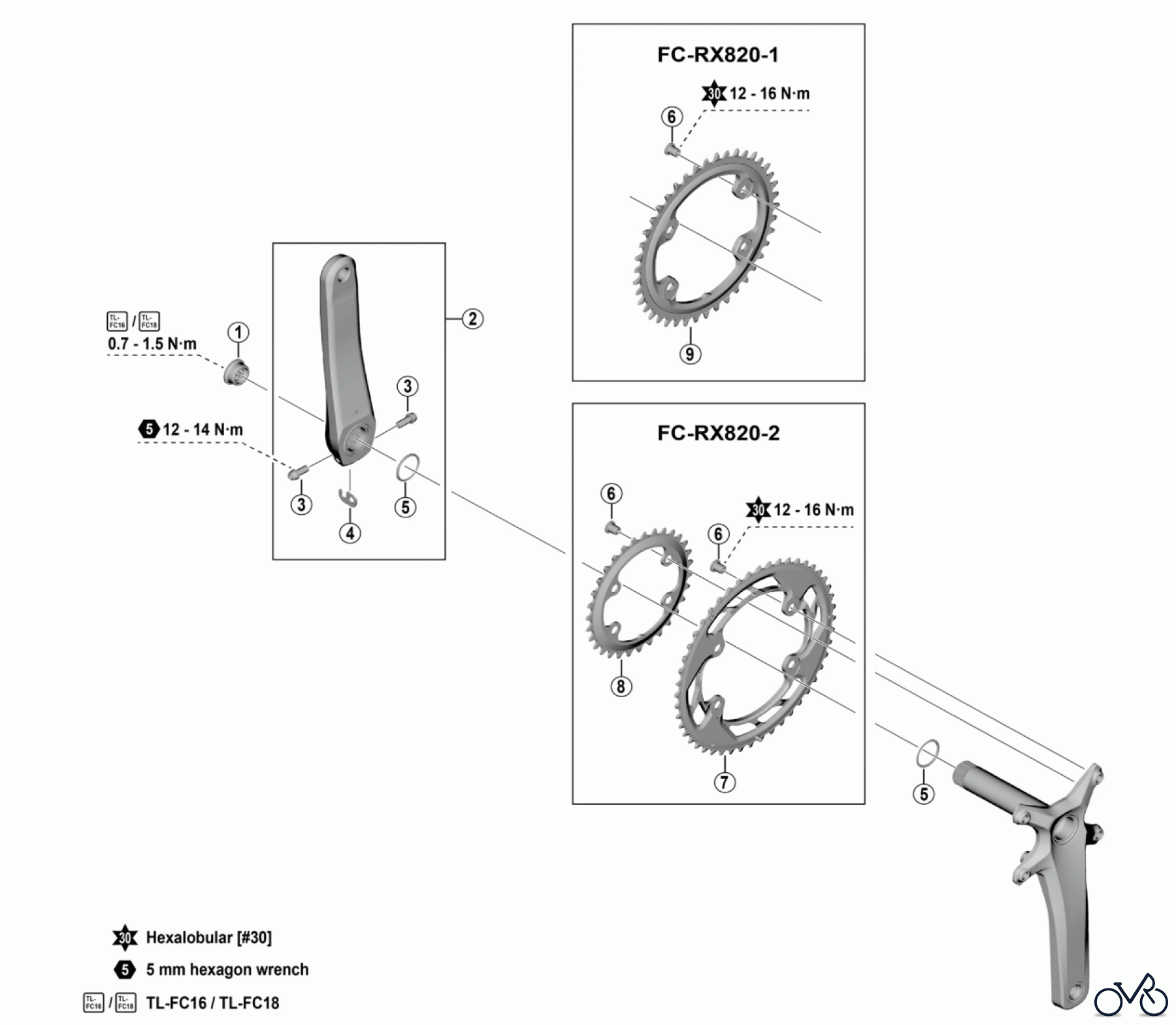

Here you will find the spare parts drawing for Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-RX820 GRX Crankset . Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-0J620000	Crank mounting screw Y0J620000
2	Y-0SB98030	Left-hand crank arm unit 170 mm Y0SB98030
2	Y-0SB98040	Left-hand crank arm unit 172.5 mm Y0SB98040
2	Y-0SB98050	Left-hand crank arm unit 175 mm Y0SB98050
3	Y-1GS22000	Crank fixing screw with washer (M6 x 19) Y1GS22000
4	Y-1GE98050	Plate Y1GE98050
5	Y-1F316000	Ring Y1F316000
6	Y-0JR98050	Chainring fixing screw (M8 x 9 / 1 unit = 4 pcs.) Y0JR98050
7	Y-0SC98010	Chainring 48T-NL Y0SC98010
8	Y-0SC9801T	Chainring 31T-NL Y0SC9801T
9	Y-0SB98010	Chainring 40T Y0SB98010
9	Y-0SB98020	Chainring 42T Y0SB98020
