Shimano ST-RX820 GRX Schalt-/Bremshebel (Hydraulische Scheibenbremse)

ST-RX820 GRX Schalt-/Bremshebel (Hydraulische Scheibenbremse) ST Rapidfire- Schaltbremshebel

Shimano ST Rapidfire- Schaltbremshebel ST-RX820 GRX Schalt-/Bremshebel (Hydraulische Scheibenbremse)

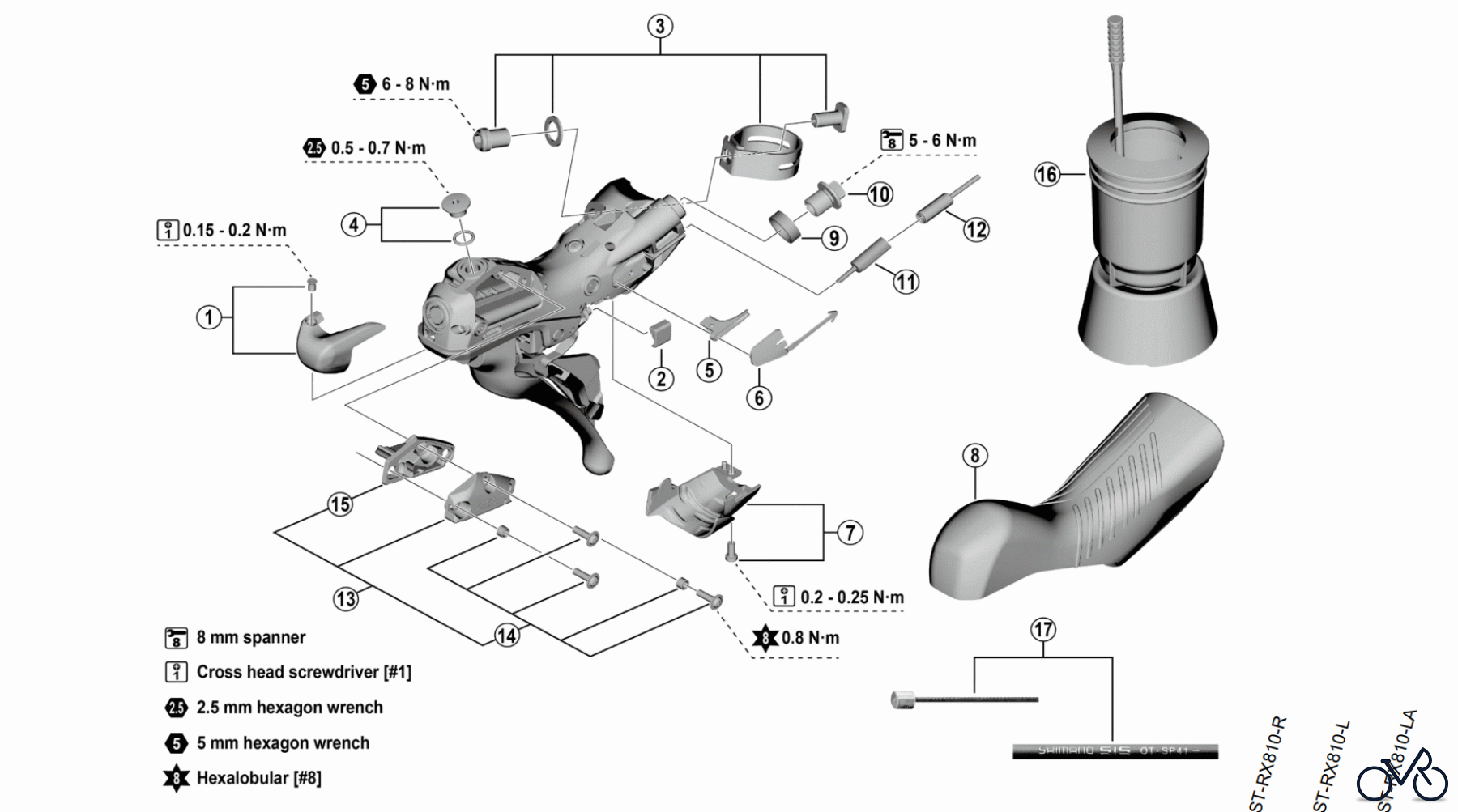

Here you will find the spare parts drawing for Shimano ST Rapidfire- Schaltbremshebel ST-RX820 GRX Schalt-/Bremshebel (Hydraulische Scheibenbremse). Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-0RY98020	Name plate R and fixing screw Y0RY98020
1	Y-0RZ98010	Name plate L and fixing screw for ST-RX820-L / RX820-LA Y0RZ98010
2	Y-63X80000	Main lever support R Y63X80000
2	Y-63X80010	Main lever support L for ST-RX820-L / RX820-LA Y63X80010
3	Y-0E098030	Clamp band unit diameter (23.8 - 24.2 mm) Y0E098030
4	Y-0MX98020	Bleed screw and O-ring BBB Y0MX98020
5	Y-0RY9801T	SL cable guide R Y0RY9801T
5	Y-07V75000	SL cable guide L for ST-RX820-L / RX820-LA Y07V75000
6	Y-00E75000	SL cable cover R Y00E75000
6	Y-0C574000	SL cable cover L for ST-RX820-L / RX820-LA Y0C574000
7	Y-0C698040	Unit cover R and fixing screw Y0C698040
7	Y-0C598020	Unit cover L and fixing screw for ST-RX820-L / RX820-LA Y0C598020
8	Y-0RY98010	Bracket covers (pair) Y0RY98010
9	Y-0RM9801T	Joint support ring Y0RM9801T
10	Y-8RD02000	Flange flare nut (M9/black) Y8RD02000
11	Y-63Z27000	Outer cap with short tongue for ST Y63Z27000
12	Y-63Z28000	Outer cap with long tongue for ST-RX820-R / RX820-L Y63Z28000
13	Y-0C698060	Right-hand lid unit Y0C698060
13	Y-0C598030	Left-hand lid unit for L for ST-RX820-L / RX820-LA Y0C598030
14	Y-0C698070	Lid fixing screw (3 pcs.) and lid spacer (2 pcs.) Y0C698070
15	Y-0C678000	Diaphragm R Y0C678000
15	Y-0C578000	Diaphragm L for ST-RX820-L / RX820-LA Y0C578000
16	Y-13000090	TL-BR002 Funnel unit for M7 screw Y13000090
17	Y-8ZG98090	OT-SP41 OPTISLICK shift cable sets black (OT-RS900 is included) Y8ZG98090
17	Y-8ZG98100	OT-SP41 OPTISLICK shift cable sets white (OT-RS900 is included) Y8ZG98100
17	Y-8ZG98110	OT-SP41 OPTISLICK shift cable sets red (OT-RS900 is included) Y8ZG98110
17	Y-8ZG98120	OT-SP41 OPTISLICK shift cable sets high-tech gray (OT-RS900 is included) Y8ZG98120
