Shimano BM-E8031

BM-E8031 BM Akkuhalterung (E-Bike)

Shimano BM Akkuhalterung (E-Bike) BM-E8031

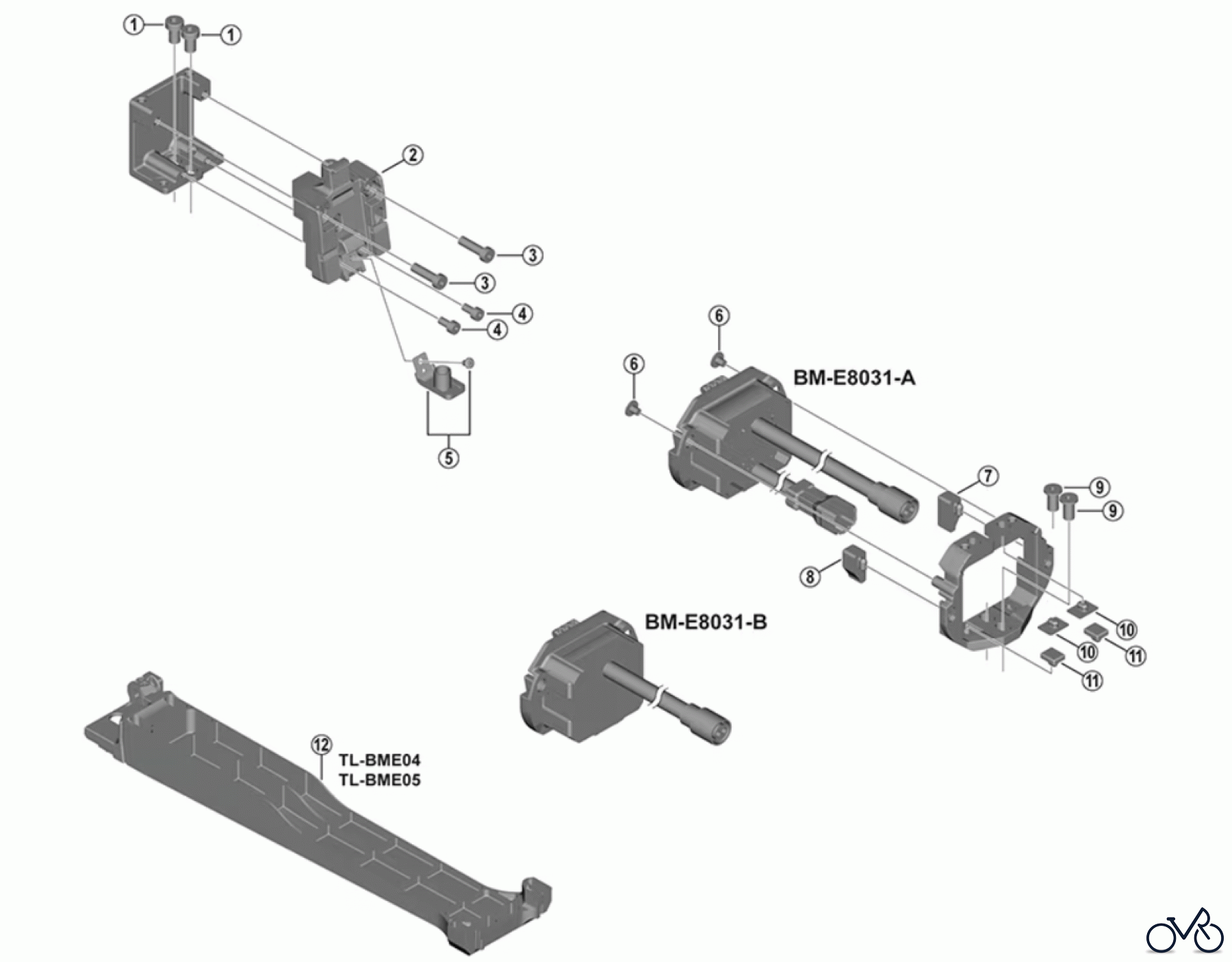

Here you will find the spare parts drawing for Shimano BM Akkuhalterung (E-Bike) BM-E8031. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

PosArticle NumberDescription
1 Y-7GS00090 Bracket Fixing Screw (M6 x 10) Y7GS00090
2 Shimano Upper Mount Unit Y-7GT98020 Upper Mount Unit Y7GT98020
3 Y-7GS00100 Upper Base Fixing Screw A (M5 x 18) Y7GS00100
4 Y-7GS00110 Upper Base Fixing Screw B (M4 x 8) Y7GS00110
5 Y-7GS98020 Spring Unit & Fixing Screw (M3 x 4) Y7GS98020
6 Y-7GS00230 Stopper Screw (M4 x 5) Y7GS00230
7 Y-7GS00200 Lower Mount Rubber L Y7GS00200
8 Y-7GS00190 Lower Mount Rubber R Y7GS00190
9 Y-7GS00350 Lower Bracket Fixing Screw (M6 x 12) Y7GS00350
10 Y-7GS00220 Lower Bracket Rubber Y7GS00220
11 Y-7GS00210 Lower Bracket Rubber Y7GS00210
12 Y-13000050 TL-BME04 Battery Mount Setting Tool Y13000050
12 Y-13000070 TL-BME05 Battery Mount Setting Tool Y13000070
