Shimano CS-R7100, CS-R7101 SHIMANO 105 Cassette (12-speed

CS-R7100, CS-R7101 SHIMANO 105 Cassette (12-speed CS Cassette / Zahnkranz

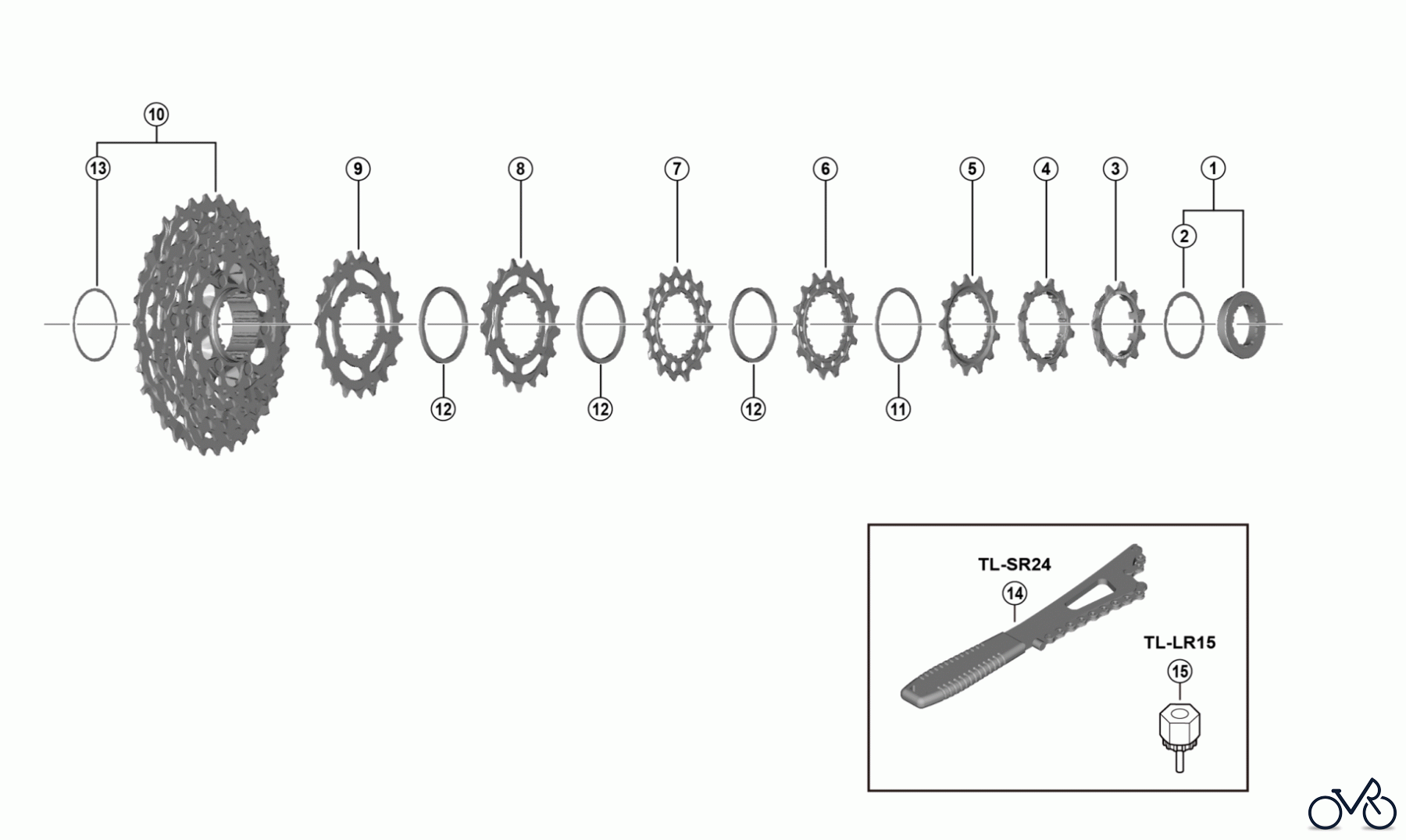

Here you will find the spare parts drawing for Shimano CS Cassette / Zahnkranz CS-R7100, CS-R7101 SHIMANO 105 Cassette (12-speed. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-0T898010	Lock ring and washer for CS-R7101 Y0T898010
1	Y-0RR98010	Lock ring and washer for CS-R7100 Y0RR98010
2	Y-10Z04000	Lock ring washer Y10Z04000
3	Y-0RR9801T	Sprocket 11T C (built in spacer type) Y0RR9801T
4	Y-0RR9808T	Sprocket 12T E (built in spacer type) for CS-R7101 / R7100 Y0RR9808T
4	Y-0RR9802T	Sprocket 12T E (built in spacer type) for CS-R7100 Y0RR9802T
5	Y-0RR9803T	Sprocket 13T D Y0RR9803T
6	Y-0RR9804T	Sprocket 14T D Y0RR9804T
7	Y-0RR9809T	Sprocket 15T D for CS-R7101 / R7100 Y0RR9809T
7	Y-0RR9805T	Sprocket 15T D for CS-R7100 Y0RR9805T
8	Y-0RR9806T	Sprocket 17T L Y0RR9806T
9	Y-0RR9807T	Sprocket 19T N Y0RR9807T
10	Y-0RR98030	Sprocket unit (21-24-27-30-34T) for CS-R7101 / R7100 Y0RR98030
10	Y-0RR98020	Sprocket unit (21-24-27-30-34T) for CS-R7100 Y0RR98020
11	Y-0MV40020	Spacer A Y0MV40020
12	Y-0NR00200	Spacer B Y0NR00200
13	Y-0MV01000	Adhesive ring Y0MV01000
14	Y-13098730	TL-SR24 Sprocket remover Y13098730
15	Y-12009230	TL-LR15 Lock ring removal tool Y12009230
