Shimano HB-RM65

HB-RM65 HB Hub - Vordere Nabe

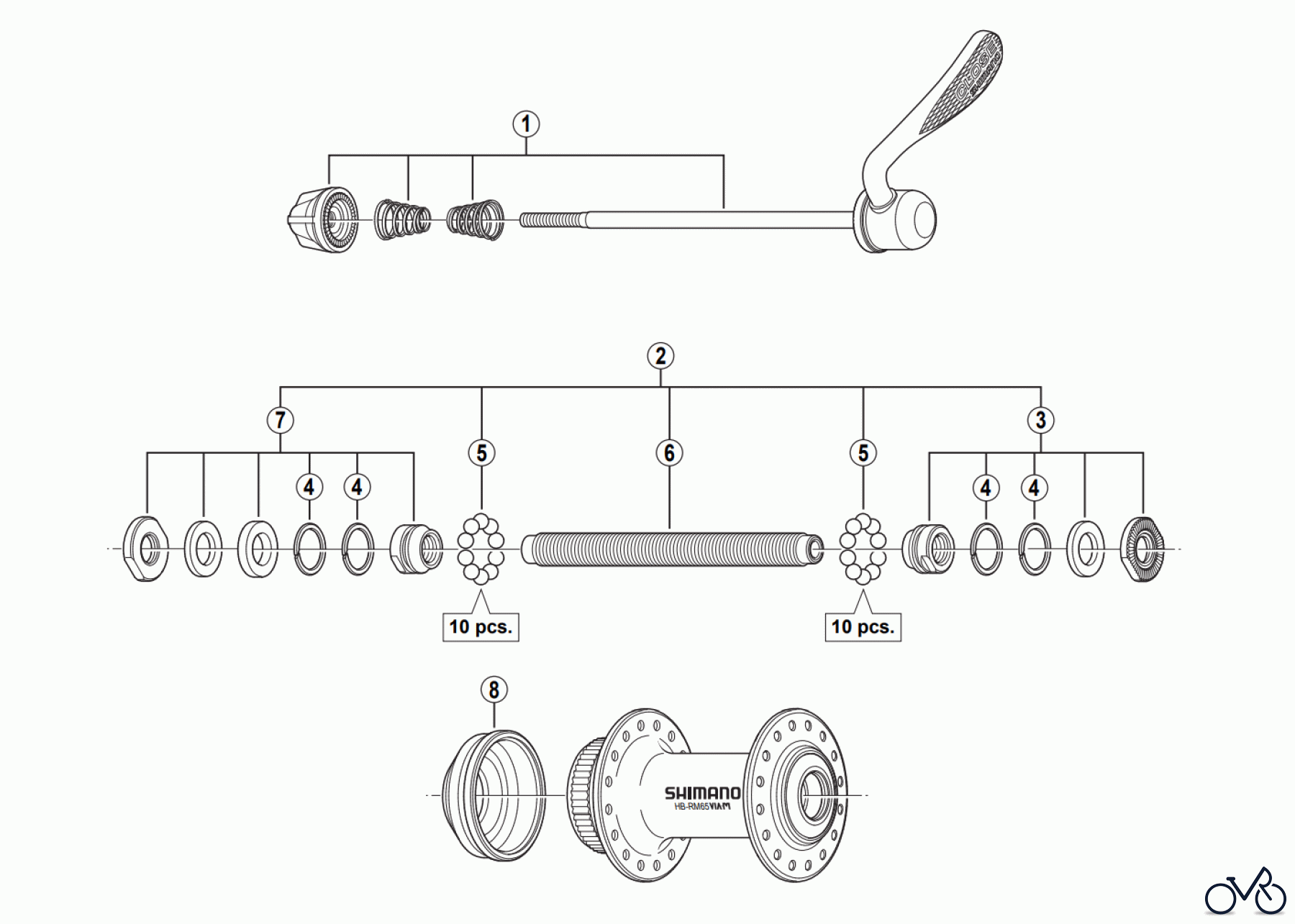

Here you will find the spare parts drawing for Shimano HB Hub - Vordere Nabe HB-RM65. Select the required bicycle spare part from the spare parts list for your Shimano bicycle and simply order online. We always have many Shimano spare parts in stock for you.

Pos	Article Number	Description
1	Y-2T398010	Complete Quick Release 133 mm (5-1/4") Y2T398010
2	Y-2TC98010	Complete Hub Axle 108 mm (4-1/4" Y2TC98010
3	Y-2TC98020	Right Hand Lock Nut Unit Y2TC98020
4	Y-23603000	Seal Ring Y23603000
5	Y-00091210	Steel Ball (3/16") 20 pcs. Y00091210
6	Y-25W03000	Hub Axle 108 mm (4-1/4") Y25W03000
7	Y-2TC98030	Left Hand Lock Nut Unit Y2TC98030
8	Y-24Z02000	Rotor Mount Cover (Option) Y24Z02000
